Dust Proof Metal Industrial Computer Keyboard With Trackball 86 Keys

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC,ROHS
Model Number MKB-F86-TB-DT
Minimum Order Quantity 1pcs
Price US$150-250
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 2000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Of Front Panel Stainless Steel Keypad Button Material Stainless Steel
Number Of Keys 86 Mounting Method Desktop Stand Alone
Protection Level IP65 Or Above Mouse Type Trackball
Interface USB Or PS/2 Key Travel 2.0MM
High Light

Metal Industrial Computer Keyboard

,

Dust Proof Industrial Computer Keyboard

,

86 Keys Desktop Metal Keyboard

Leave a Message
Product Description

86 Keys Dust-proof Metal Industrial Ccomputer Desktop Keyboard With Trackball ​



MKB-F86-TB-DT

Key Features:

1) Desktop style, no mounting needed, enjoy the convenience of mobility

2) 86 keys including 12 function keys F1~F12
3) Integrated optical trackball
4) Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback
5) Designed to operate in harsh environments
6) Exposed parts built from stainless steel, high resistance against rust, corrosion and vandalism
7) Dust-proof and liquid-proof, meet IP65 requirement
8) PS/2 or USB interface for option
9) Customizable layout upon customers request

Specifications





Material

Front panel & Keys: Brushed stainless steel

Back panel: Aluminum alloy

Key cap: Protruding full travel key (2.0mm) with etched graphics

Trackball: Stainless steel trackball (Dia: 38mm)





Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20 mA

Interface: USB or PS2

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

FCC: Part 15, class B

Safety: EN 60950, CE compliant



Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6



Mechanical Data

Actuation force for key: 120±15g

Key travel: 2.0mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX



Weight and Dimension

Weight: 2.50kg

Dimension: 420.00 x 162.46 x 46.32 mm(L x W x H)

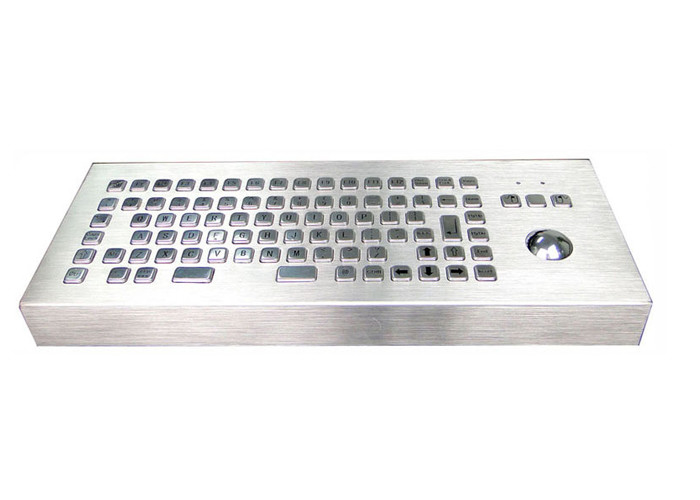

Dust Proof Metal Industrial Computer Keyboard With Trackball 86 Keys 0

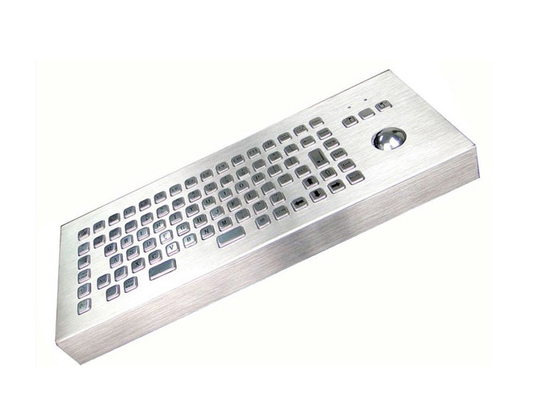

Dust Proof Metal Industrial Computer Keyboard With Trackball 86 Keys 1
