| Brand Name: | KINGLEADER |
| Model Number: | MKP100D-16 |
| MOQ: | 1pcs |
| Price: | US$ |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Payment Terms: | T/T,Paypal |

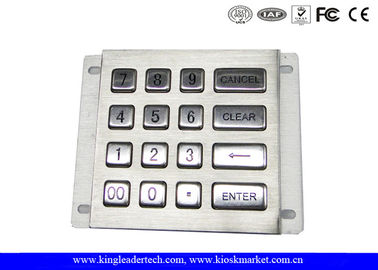

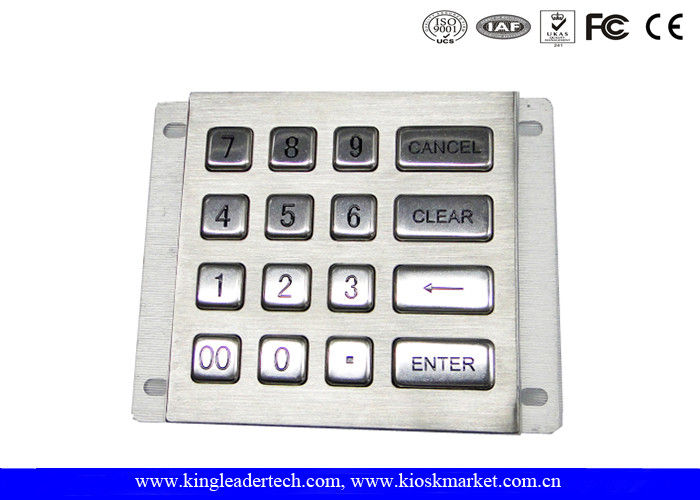

16 Long Travel Button Metal Numerical Keypad Rugged For Industrial
PN:MKP100D-16
Key Features:
● 16 full travel metal keys,4 larger keys at the right column
● Keys in 4 X 4 matrix
● Laser-etched characters
● Panel mount from the rear side
● Robust build against vandalism
● Dust-proof and liquid-proof, IP65 compliance after properly mounted
● Layout customizable according to customer’s request
● Application: access control system or other application in industrial harsh environment
|
Technical Specification |
|
|
Material |
|
|
Front panel & Keys |
304 stainless steel |
|
Back panel |
304 stainless steel |
|
Number of Keys |
16 |
|
Matrix |
4 x 4 |
|
Function |
Non backlight |
|
Electrical Data |
|
|
Interface |
USB or PS/2 or RS232(With electronic controller board) 8PIN connector (Without electronic controller board) |
|
Certification |
CE,FCC |
|
Environmental Characteristics |
|
|
Operating temperature |
-20º C to + 60º C |
|
Key travel |
2.0mm |
|
Lifetime (cycles) |
Min 5, 000, 000 actuations |
|
Sealing protection |
IP65/NEMA4X from the front |
|
Layout |
Customizable available |
|
Dimension |
100.00 x 100.00 mm (W x D) (front panel) |
|
Application |
access control system or other application in harsh environment |
|
|
