| Brand Name: | KINGLEADER |
| Model Number: | MTP-46 |
| MOQ: | 1pcs |
| Price: | US$ |
| Packaging Details: | 1pcs/box, 10pcs/ctn |
| Payment Terms: | T/T, Paypal |

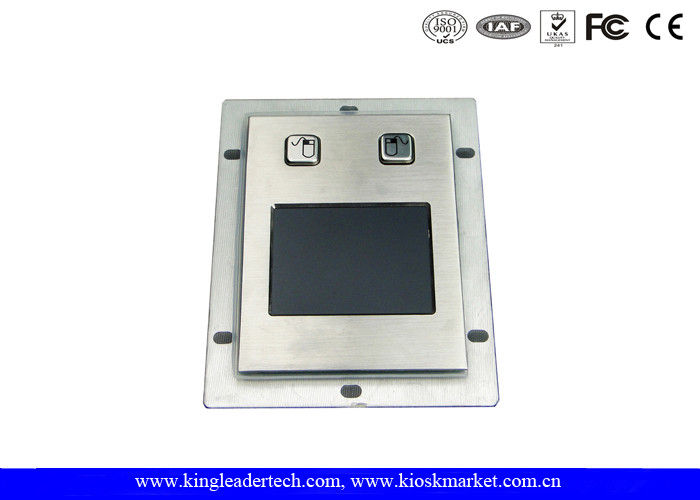

Panelmount Waterproof Metal Industrial Pointing Touchpad
MTP-46
Rugged stainless steel, water-proof, vanal-resistant, high-sensitivity, durable touchpad with left and right click buttons
Key Features
● High-sensitivity touchpad
● Dust-proof and liquid-proof, IP65 compliance
● Exposed parts made of 304 stainless steel, resistant against vandalism
● Designed to operate in harsh environments, making it ideal for application in public place and other harsh environment
● Compatible with WINDOWS98/ME/2000/XP
● PS/2 or USB interface
● Panel-mount
Technical Specifications
Material
• Front Panel: 304 stainless steel
• Key: 304 stainless steel
• Back Panel: aluminum alloy
Electrical Data
• voltage: 5.0VDC ±5%
• electric current: 10mA
• EMC compliant
• Touchpad resolution: 1000dpi
Environmental Characteristics
• Operating temperature: -20°C to + 60°C
• Storage temperature: - 40°C to + 80°C
• Saline mist: 96 hours, IEC 60512-6
• Damp heat test at + 40°C: 21 days, IEC 60512-6
• Dry heat test at + 85°C: 10 days, IEC 60512-6
Mechanical Data
• Lifecycle: >5 million times per key
• Key Travel: 2mm
• Actuation Force for Keys: 80g nominal
• Lettering:Etched graphics with permanent ink
Operation system
• PS2: Win NT4, 98SE, 98ME, 2000, XP
• USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX
Reliability
• MTBF >20000h
• MTTR <30min
Dimension
• Face plate: 110 x 83 mm (LxW)
|
