Double Display Self Service Touch Screen Kiosk Vandal Proof For Theater

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xEnclosure | Cold Rolled Steel | Finish | Painting |
---|---|---|---|
Color | Customized Available | Screen Size | 19Inch Or Larger |
Model | Freestanding | Peripherals | Optional Upon Request |
High Light | Customized Self Service Touch Screen Kiosk,Theater Self Service Touch Screen Kiosk,Vandal Proof Touch Screen Kiosk |

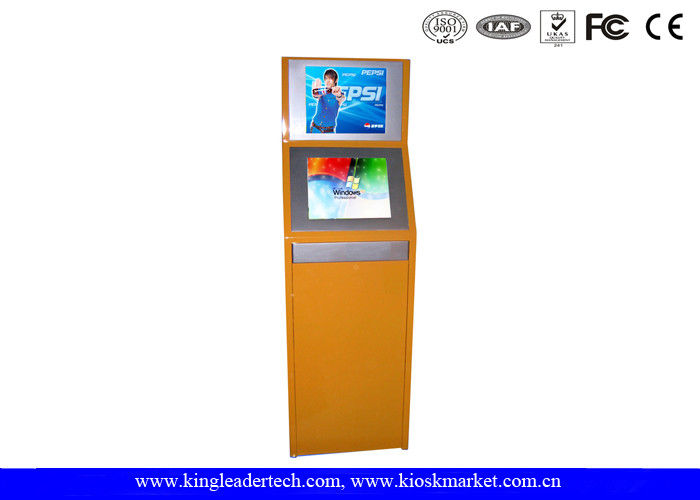

Double Display Self-Service TouchScreen Kiosk , Vandal-Proof For Theater
PN:TSK9001-2D(Freestanding Two Screen Model)
Key Features:
1) Two displays:highly visible upper display for video play or advertisement;lower display paired with SAW touchscreen for interaction
2) High-sensitivity,high light-transmittance,anti-glare,vandal-proof SAW touchscreen
3) 15″,17″,19″TFT LCD displays for option ( for lower display and upper display)
4) Durable steel enclosure, extra slim, stylish and ADA compliant design
5) Built-in hi-fi amplified speakers
6) Customizable
7) Applications: office building, court house, hospital/medical center, airport, university, government building, retail store, theater and other public places where information and/or transaction are provided in self-service and interactive manner
Technical Specification |
|
TFT LCD Display |
|
Resolution |
1024x768(15″);1280x1024(17″and 19″) |
Brightness |
250~300 nits |
Contrast ratio |
450:1 |
Response time |
8 ms |
Touch Screen |
|
Type |
Vandal-proof SAW touch screen |
Resolution |
4096*4096 |
Deviation of error |
<2mm |
Light Transmittance |
≥ 92% |
Surface Hardness |
7 Mohs scale |
Lifetime |
50,000,000 times at one single location |
Response time |
less than 16 ms |
Touch activation force |
10~100g |
Enclosure |
|
Durable steel enclosure (different colors for option) |
|
Built-in power control panel, and hi-fi speakers. |
|
Two cooling fans for computer board and main body separately |
|
RJ45/RJ11 interface |
|
Large access doors with tubular locks/keys |
|
Computer |
|
Mother board |
GIGABYTE H61 |
CPU |
Intel Pentium dual core G550 2.60GHz (upgradeable as per request) |
RAM |
2GB (upgradeable as per request) |
Hard Disc |
500GB (upgradeable on request) |
Interface and Port |
8×USB2.0; 1×VGA; 2xPS/2; 1 x COMM;1x RJ45;LAN port |
Others |
Integrated sound/network/graphics card |
Compatible Operation System |
|
Windows2000/XP/Vista/Win7, RedHatLinux/FedoraCore/Win8 |
|
Power supply |
|
AC110V-240V,50H-60HZ |
|
Working Environment |
|
Temperature -20℃-+65℃, Relative humidity 10%-90% |
|
Dimension |
|
178x 50x22CMs (H x W x D) |
|
Packaging |
|
Exportable,transport-worthy plywood crate |
|
Warranty |
|
One year after the date of delivery |
|
Optional Periperals |
|
Metal keyboard,keypad,webcam,barcode scanner,card reader,thermal printer,coin acceptor,bill acceptor,finger printer reader etc. |
