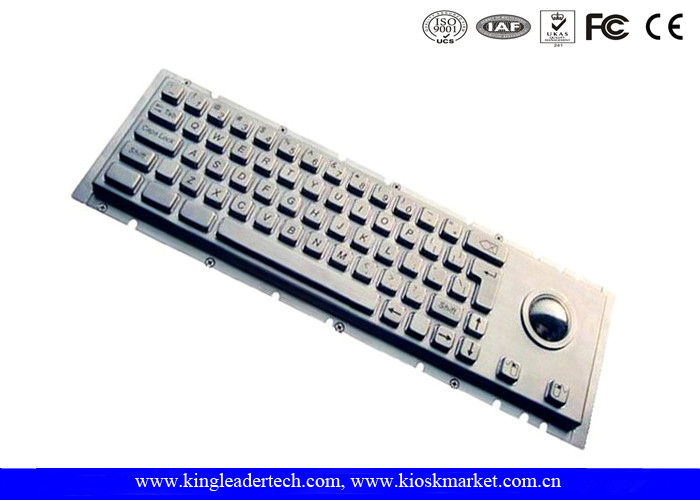

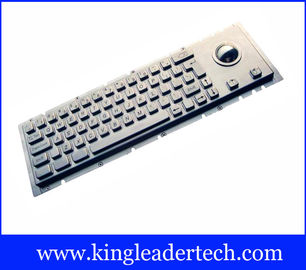

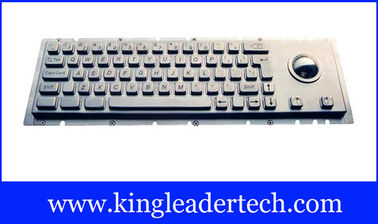

IP65 Cherry Keyswitch Panel Mount Kiosk Mechanical Keyboard With Trackball

China IP65 Cherry Keyswitch Panel Mount Kiosk Mechanical Keyboard With Trackball supplier
IP65 Cherry Keyswitch Panel Mount Kiosk Mechanical Keyboard With Trackball supplier IP65 Cherry Keyswitch Panel Mount Kiosk Mechanical Keyboard With Trackball supplier IP65 Cherry Keyswitch Panel Mount Kiosk Mechanical Keyboard With Trackball supplier IP65 Cherry Keyswitch Panel Mount Kiosk Mechanical Keyboard With Trackball supplier IP65 Cherry Keyswitch Panel Mount Kiosk Mechanical Keyboard With Trackball supplier

Large Image :  IP65 Cherry Keyswitch Panel Mount Kiosk Mechanical Keyboard With Trackball

Product Details:

Place of Origin: China
Brand Name: KINGLEADER
Certification: CE,FCC
Model Number: MKB-63CA-TB

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: US$
Packaging Details: 1pcs/box, 10pcs/ctn
Delivery Time: 20days
Payment Terms: T/T,Paypal
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
Number Of Keys: 63 Mechanical Switch Keys Material Of Front Panel: Stainless Steel
Material Of Back Panel: Aluminum Alloy Material Of Keys: Stainless Steel
Key Switch: Silicone Rubber Interface: USB Or PS/2

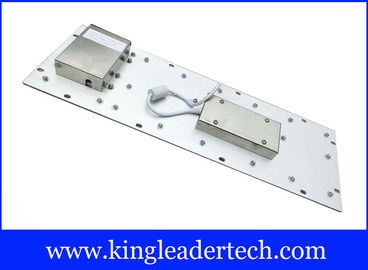

Mounting Method: Panel Mount From The Rear Side Mouse: Trackball

IP65 Cherry Keyswitch Panel Mount Kiosk Mechanical Keyboard With Trackball



MKB-63CA-TB(Panel Mount Model)



Technical Specification

Material

Front panel & Keys

Brushed stainless steel

Back panel

Aluminum alloy

Mouse

Stainless steel trackball (Dia: 38mm)

Electrical Data

Power supply voltage

DC 5 V ± 5%

Current rating

20 mA

Interface

USB or PS2

EMC compliant

Emission: EN 50081-1

Immunity: EN 50082-1

FCC

Part 15, class B

Certification

CE,FCC

Environmental Characteristics

Operating temperature

-20º C to + 60º C

Key travel

4.0mm mechanical key-switches

Lifetime (cycles)

Min 5, 000, 000 actuations

Sealing protection

IP65/NEMA4X from the front

Vibration resistance

5 Hz - 200 Hz, IEC 60512-4

Shock resistance

3 axis 150 m/s² - 11 ms, IEC 60512-4

Compatible Operation System

PS2

Win NT4, 98SE, 98ME, 2000, XP,Win7,Linux,Win8

USB

Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX, Win7,Linux,Win8

Weight and Dimension

Weight

1.80kg

Dimension

-Face plate:372.00 x 102.00 mm

-Overall:394.00 x 123.80 mm

-Thickness:33.80 mm ( to where the tallest part extends)



IP65 Cherry Keyswitch Panel Mount Kiosk Mechanical Keyboard With Trackball

IP65 Cherry Keyswitch Panel Mount Kiosk Mechanical Keyboard With Trackball

IP65 Cherry Keyswitch Panel Mount Kiosk Mechanical Keyboard With Trackball
