Brand Name: | KINGLEADER |
Model Number: | MKB-64A-TB |
MOQ: | 1pcs |
Price: | US$ |
Packaging Details: | 1pcs/box,1boxes/ctn |
Payment Terms: | T/T,Paypal |

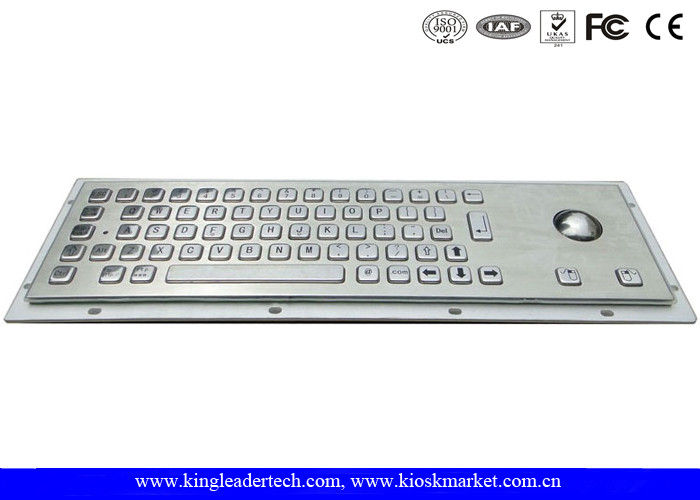

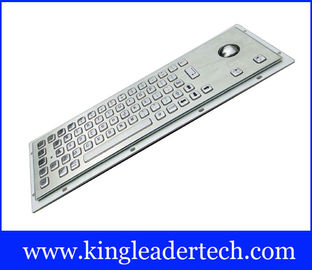

NEMA4 Ruggedized Trackball Panel Mount Keyboard With 64 Full Travel Keys
MKB-64A-TB(Panel Mount Model)
Technical Specification |
|
Material |
|
Front panel & Keys |
Brushed stainless steel |

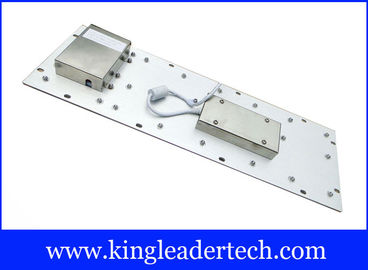

Back panel |
Aluminum alloy |
Mouse |
Stainless steel trackball (Dia: 38mm) |
Electrical Data |
|
Power supply voltage |
DC 5 V ± 5% |
Current rating |
20 mA |
Interface |
USB or PS2 |
EMC compliant |
Emission: EN 50081-1 Immunity: EN 50082-1 |
FCC |
Part 15, class B |
Certification |
CE,FCC |
Environmental Characteristics |
|
Operating temperature |
-20º C to + 60º C |
Key travel |
2.0mm |
Lifetime (cycles) |
Min 5, 000, 000 actuations |
Sealing protection |
IP65/NEMA4X from the front |
Vibration resistance |
5 Hz - 200 Hz, IEC 60512-4 |
Shock resistance |
3 axis 150 m/s² - 11 ms, IEC 60512-4 |
Compatible Operation System |
|
PS2 |
Win NT4, 98SE, 98ME, 2000, XP,Win7,Linux,Win8 |
USB |
Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX, Win7,Linux,Win8 |
Weight and Dimension |
|
Weight |
1.80kg |
Dimension |
Front panel: 392.00 x 110.00 mm Back panel: 416.00 x 134.00 mm |
