Custom design self-service ticketing kiosks with note acceptor,thermal printer and camera

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC,LVD
Model Number TSK8002(B1)
Minimum Order Quantity 1 Set
Price US$
Packaging Details 1pcs/ctn
Delivery Time 20days
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 500 Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

design of kiosk

,

kiosk custom

,

custom kiosk

Leave a Message
Product Description

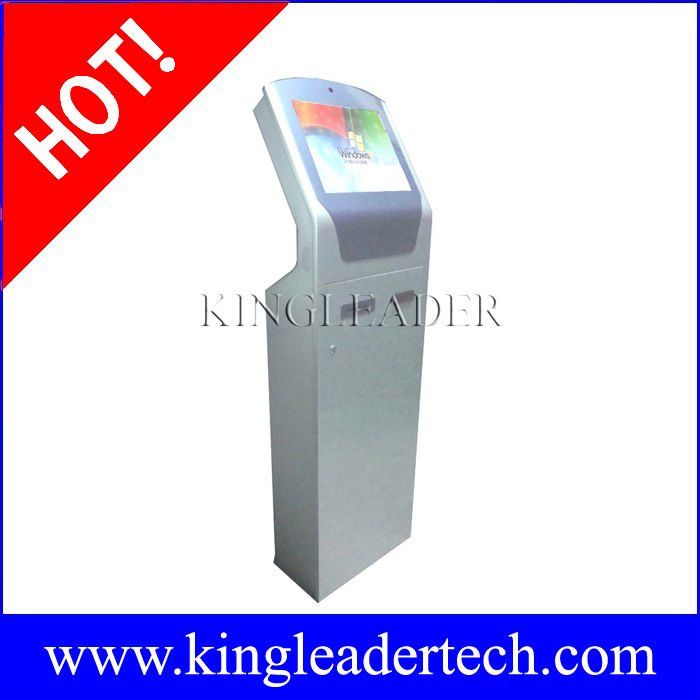

Custom design Self-service ticketing touch kiosks computers  with note acceptor, thermal printer and camera

1, Self-service ticketing kiosk with note acceptor, printer and camera
2, 17"/19" SAW touchscreen
3, FCC&CE compliance
4, OEM OK


This self-service ticketing kiosk is built based on our standard model TSK8002 by integrating a note acceptor, a thermal printer and a camera

Key Features:

 - High-sensitivity, high light-transmittance, anti-glare, vandal-proof SAW touchscreen

- 17″, 19″TFT LCD displays for option

- Durable steel enclosure, sleek, curved, extra slim,  stylish and ADA compliant design

- Built-in hi-fi amplified speakers

- Customizable

 Applications:

 This self-service ticketing kiosk is commonly used in public places or facilities where people can buy ticket by paying small cash



Technical Specifications



TFT LCD Display

- Resolution: 1280x1024(17″and 19″)

- Brightness: 250~300 nits

- Contrast ratio: 450:1

- Response time:8 ms





Touch Screen

- Vandal-proof SAW touch screen

- Material: Heat tempered glass with thickness 6mm

- Resolution: 4096*4096

- Deviation of error: <2mm

- Light Transmittance: ≥ 92%

- Surface Hardness:  7 Mohs scale

- Lifetime:50, 000, 000 times at one single location

- Response time: less than 16 ms

- Touch activation force: 10~100g



Enclosure

- Durable steel enclosure (different colors for option)

- Built-in power control panel, and hi-fi speakers.

- Two cooling fans for computer board and main body separately

- RJ45/RJ11 interface

- Large access doors with tubular locks/keys



Mother Board

-         CPU: Intel Pentium dual core E5300

(upgradeable on request)

-         RAM: 1GB (upgradeable on request)

-         Hard Disc: 250GB (upgradeable on

request)



Operation System

LINUX/Win3.X/98/2000/NT4.0/XP

Working Voltage

AC 220V, 50 Hz or 110V, 60 Hz for option



Ambient Environment

-         WorkingTemperature

-20°C~65°C;RelativeHumidity: 30%~90%

-         Storage Temperature:

-40°C~80°C;Relative Humidity: 5%~95%



Dimensions

-         140(height) x 47(width) x 22(depth) CMs

-         Packing dimension: 150 x 60 x 46cm



Peripherals

Note acceptor, thermal printer and camera.
