Panel Mount Keyboard
>
Front Mounted Industrial Stainless Steel Keyboard With Mouse Touch Ball

Front Mounted Industrial Stainless Steel Keyboard With Mouse Touch Ball

Brand Name: KINGLEADER
Model Number: MKB-FN103B-TB-2
MOQ: 1pcs
Price: US$
Packaging Details: 1pcs/box,10boxes/ctn
Payment Terms: T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE,FCC,ROHS
Number Of Keys:
103 Full Travel Keys
Material Of Front Panel:
Stainless Steel
Material Of Back Panel:
Aluminum Alloy
Material Of Keys:
Stainless Steel
Key Switch:
Silicone Rubber
Interface:
USB Or PS/2
Mounting Method:

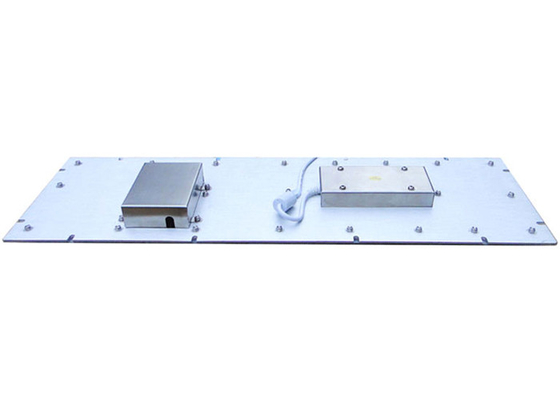

Panel Mount From The Rear Side
Layout:
Standard English Or Customized
Supply Ability:
2000pcs/month
Highlight:

Front Mounted Industrial Stainless Steel Keyboard

,

Mouse Touch Ball Stainless Steel Keyboard

,

Industrial Keyboard With Mouse Touch Ball

Product Description

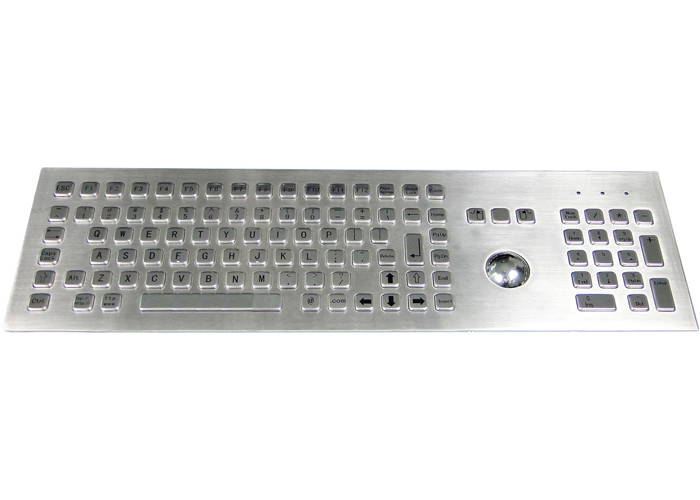

Front Mounted Industrial Metal Stainless Steel Keyboard with Mouse Touch Ball



MKB-FN103B-TB-2(Panel Mount Model)



Items Specifications

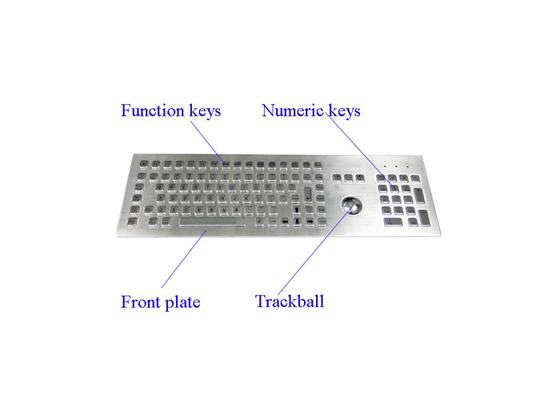

Description - This metal keyboard combines function keys,OPTICAL trackball and numeric keypad in one single unit
Application

- All kinds of kiosks such as shopping mall kiosk,check-in kiosk,printing kiosk,ticket kiosk,cash kiosk,ATM,ADM,CDM,unattended payment terminal etc

- Workstations or machines in factories

- Some special locations like toll gate,gas station,airport,seaport,underground mine etc.

Key Features

-103 keys(of them 12 function keys)

- Panel mount from the front side
- Integrated trackball and numeric keypad
- Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback
- Specially designed to operate in harsh environments, making it ideal for kiosks and other applications in harsh environment
- Built from stainless steel, high vandal-proof,meet IK07 standard
- Dust-proof and liquid-proof, meet IP65 requirement
- PS/2 or USB interface for option
- Customizable layout upon customer’s request

Material - Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Trackball(38mm):Stainless steel
Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA

- Trackball resolution:1000dpi
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant

Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data - Actuation force for key:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability

- MTBF:>20,000 hours

- MTTR:<30 minutes

Certification CE,FCC,RoHS
Dimension

- Front panel: 496.00 x 159.00

- Overall thickness: 47.50mm ( to the tallest component)

Weight

2.20 kgs





FAQ
1. Q: How could I get samples?
A: If you need to order sample for checking-up,we would like to ask you to pay for the samples and courier freight.We send the samples to you only after receipt of your payment.if you have an courier account,you can send your courier to collect samples from our company or send us the samples charge together with the courier cost.
2. Q: How much the Courier freight will be for the samples?
A: Courier freight depends on the quantity,weight and carton size and your area.
3. Q: How can i get your price list?
A: Please leave your contact way Such as Email/MSN/Skype/ to us or click "Send Message“.we will contact to you and pass our quotation sheet to you.
4. Q: Can you arrange the transportation for us?
A: Yes,We can arrange transportation by sea or by air.
5. Q: What's your usual payment term for orders?
A: We accept terms of T/T /Westunion/Paypal/LC/Credit Card
6. Q: what's the warranty of your products?
A: one year
