Front Side Mounted Rugged Industrial Metal Keyboard With Trackpad

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC,ROHS
Model Number MKB-FN103B-TP-2
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10boxes/ctn
Delivery Time 20days
Payment Terms T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 2000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Keys 103 Keys Material Of Front Panel Stainless Steel
Material Of Back Panel Aluminum Alloy Material Of Keys Stainless Steel
Name Silicone Rubber Interface USB Or PS/2
Mounting Method Panel Mount From The Front Side Mouse Touchpad
High Light

Rugged Industrial Metal Keyboard

,

Front Side Mounted Industrial Metal Keyboard

,

Rugged Industrial Keyboard With Trackpad

Leave a Message
Product Description

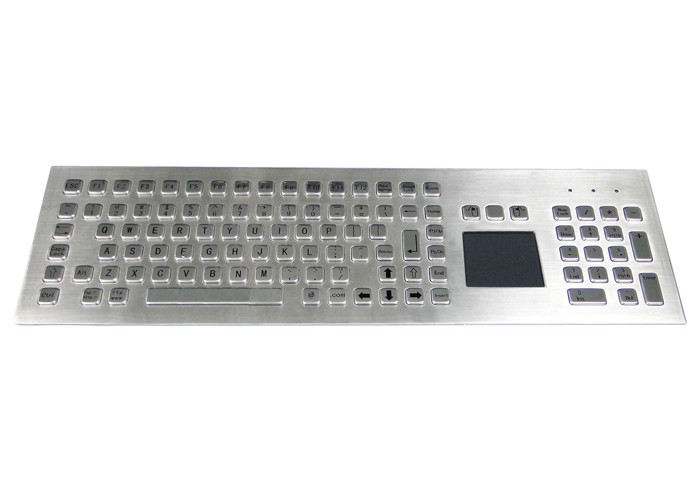

Rugged Industrial Metal Keyboard Mounted from the Front Side with Trackpad





MKB-FN103B-TP-2(Panel Mount Model)


Items Specifications
Description - This metal keyboard combines function keys,touchpad and numeric keypad in one single unit
Application

- All kinds of kiosks such as shopping mall kiosk,check-in kiosk,printing kiosk,ticket kiosk,cash kiosk,ATM,ADM,CDM,unattended payment terminal etc

- Workstations or machines in factories

- Some special locations like toll gate,gas station,airport,seaport,underground mine etc.

Key Features

- 103 keys(of them 12 function keys)

- Panel mount from the front side
- Integrated touchpad and numeric keypad
- Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback
- Specially designed to operate in harsh environments, making it ideal for kiosks and other applications in harsh environment
- Built from stainless steel, high vandal-proof,meet IK07 standard
- Dust-proof and liquid-proof, meet IP65 requirement
-  /2 or USB interface for option
-Customizable layout upon customer’s request

Material - Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
- Touchpad:Synaptics high-sensitivity touchpad
Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA

- Touchpad resolution:1000dpi
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant

Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data - Actuation force for key:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability

- MTBF:>20,000 hours

- MTTR:<30 minutes

Certification CE,FCC,RoHS
Dimension

- Front panel: 502.00 x 159.00

- Overall thickness: 35.45mm ( to the tallest component)

Weight

2.20 kgs





Feature Of Panel Mount Keyboard

  • Panel mount from the front side
  • Integrated touchpad and numeric keypad
  • Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback
  • Specially designed to operate in harsh environments, making it ideal for kiosks and other applications in harsh environment
  • Built from stainless steel, high vandal-proof,meet IK07 standard
  • Dust-proof and liquid-proof, meet IP65 requirement
  • PS/2 or USB interface for option
  • Customizable layout upon customer’s request

Application Of Panel Mount Keyboard

Panel Mount Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.



Why Choose Us ?

1. We are an Industrial Keyboard factory from China. cheap price.

2. Strict quality control, each product must follow strict quality standards, repeated testing to ensure that the product can be used normally

3. A large inventory of high-quality spot parts and a rigorous work team to ensure timely delivery

4. Complete after-sales service system; quickly provide customers with high-quality solutions



FAQ:

1. Q: do you accept customization?

A: Yes, some of our products can accept OEM.

2. Q: Can you provide a product authorized agent?

A: Yes, of course.

3. Q: do you have a factory?

A: Of course, we have nearly 10 years of experience in Industrial Keyboard, and we have a large number of cooperative enterprises in China.

4. Q: do you have certification?

A: Yes, we have ROHS factory certification.
