Illuminated Metal Keyboard
>

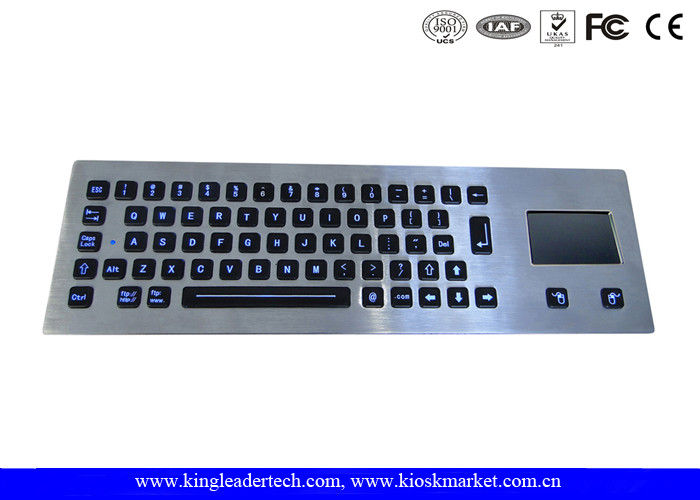

Dust-Proof Illuminated Metal Keyboard Silver With 65 LED Individually-Lit Keys

Dust-Proof Illuminated Metal Keyboard Silver With 65 LED Individually-Lit Keys

Brand Name: KINGLEADER
Model Number: MKB-64B-TP-BL
MOQ: 1pcs
Price: US$
Packaging Details: 10pcs/ctn
Payment Terms: L/C,T/T,Western Union,Paypal, D/A, D/P, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE,FCC,ROHS
Mouse:
Integrated Touchpad
Number Of Keys:
64 Backlight Keys
Mounting Method:
Panel Mount From The Front Side
Protection Level:
IP65
Interface:
USB Or PS/2
Layout:
English Or Customized
Supply Ability:
3000pcs/month
Highlight:

illuminated computer keyboard

,

illuminated keyboards

Product Description

Dust-Proof Illuminated Metal Keyboard Silver With 65 LED Individually-Lit Keys



PartNo:MKB-64B-TP-BL

Key Features:

1) 65 LED individually-lit keys
2) Customizable layout upon customer’s request
3) with integrated optical trackball;
4) Specially designed to operate in harsh and low-lit environments
5) Panel mount, installing from the front side
6) PS/2 or USB interface for option
7) Robust construction, high resistance against vandalism
8) Dust-proof and liquid-proof, meet IP65 requirement after properly mounted
9) Protruding full travel(2.0mm)keys with laser-etched legend, excellent tactile feedback


Specifications

Material

Front panel & Keys: Brushed stainless steel

Keys:High temperature-resistant polycarbonate

Back panel: Aluminum alloy

Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20 mA

Interface: USB or PS2

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

FCC: Part 15, class B

Safety: EN 60950, CE compliant

Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6

Mechanical Data

Actuation force for key:120±15g

Key travel: 2.0mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Color

Keycap:black, grey or silver

Backlight:blue, green or red

Weight and Dimension

Weight: 1.80kg

Dimension: Front panel: 400.0x124.0x32.2mm

Dust-Proof Illuminated Metal Keyboard Silver With 65 LED Individually-Lit Keys 0
