Panel Mount Illuminated Metal Keyboard With 65 Backlight Keys And Integrated Touchpad

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC
Model Number MKB-64A-TP-BL
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal
Supply Ability 3000pcs/month
Product Details
Material Of Front Panel Stainless Steel Material Of Back Panel Aluminum
Key Numbers 64 Led Backlight Keys Material Of Key Cap PC
Color Of Backlit Blue Or Red Or White Mouse Touchpad
High Light

illuminated computer keyboard

,

illuminated keyboard

Leave a Message
Product Description

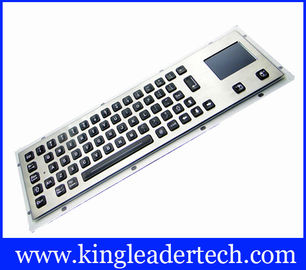

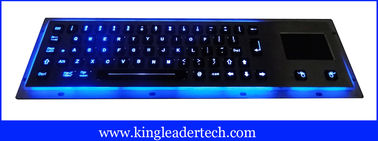

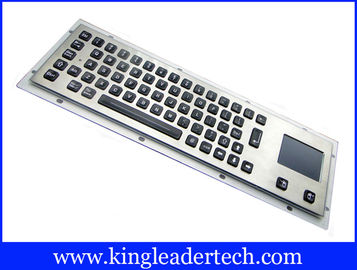

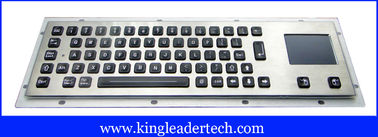

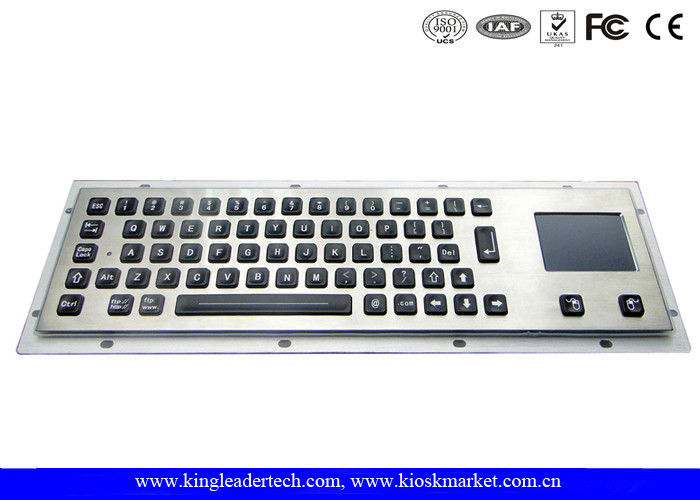

Panel Mount Illuminated Metal Keyboard With 65 Backlight Keys And Integrated Touchpad

MKB-64A-TP-BL
Key Features:
1) 65 LED individually-lit keys

2) with integrated touchpad;

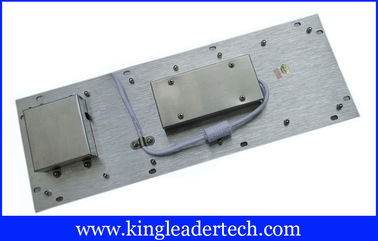

3) Panel mount, installing from the rear side
4) Protruding full travel(2.0mm)keys with laser-etched legend, excellent tactile feedback
5) Specially designed to operate in harsh and low-lit environments

6) Robust construction, high resistance against vandalism
7) Dust-proof and liquid-proof, meet IP65 requirement after properly mounted
8) PS/2 or USB interface for option

9) Customizable layout upon customer’s request



Specifications

Material

Front panel & Keys: Brushed stainless steel

Back panel: Aluminum alloy

Back panel: Aluminum alloy

Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20 mA

Interface: USB or PS2

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

FCC: Part 15, class B

Safety: EN 60950, CE compliant

Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6

Mechanical Data

Actuation force for key:120±15g

Key travel: 2.0mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Touchpad

Power supply voltage: 5 VDC ± 10%

Current rating (active mode): 17 mA

Interface: PS2 or USB

X/Y position sensing resolution: 40 counts/mm

X/Y position reporting: Relative

Tracking speed: Maximum 1, 016 m/sec

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Color

Keycap:black, grey or silver

Backlight:blue, green or red

Weight and Dimension

Weight: 1.80kg

Dimension: Front panel: 400.0x124.0x22.2mm
