Brushed Industrial Computer Small Footprint Desktop Keyboard With Trackball

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC
Model Number MKB-65-TB-MDT
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box,10boxes/ctn
Delivery Time 20days
Payment Terms T/T,Paypal
Supply Ability 2000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

industrial computer keyboards

,

custom computer keyboard

,

mini computer keyboard

Leave a Message
Product Description

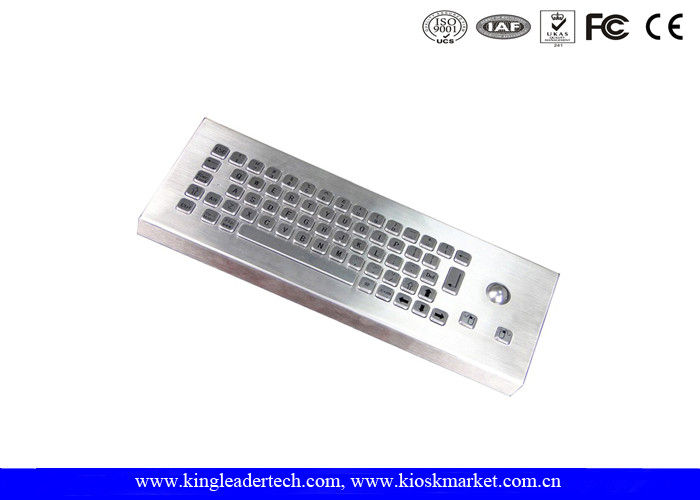

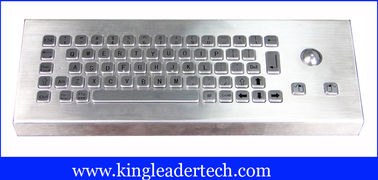

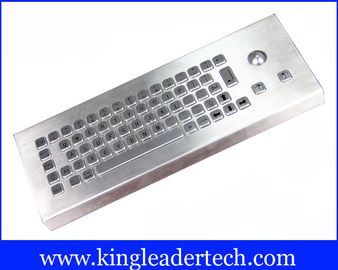

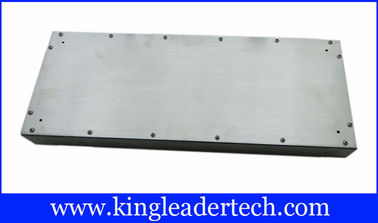

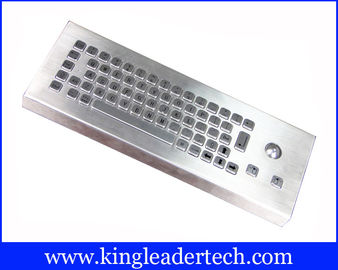

Brushed Industrial Computer Small Footprint Desktop Keyboard With Trackball

MKB-65-TB-MDT

Key Features
1) Desktop style
2) 65 keys, compact size with integrated optical trackball
3) Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback
4) Specially designed to operate in harsh environments, making it ideal for industrial applications
5) Built from stainless steel, high vandal-proof.
6) Dust-proof and liquid-proof, meet IP65 requirement
7) PS/2 or USB interface for option
8) Customizable layout upon customers request


Specifications
Material
- Case & Keys: Brushed stainless steel
- Trackball: Stainless steel trackball (Dia: 25mm)


Electrical Data

- Power supply voltage: DC 5 ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics

- Operating temperature: -20 C to + 60 C
- Storage temperature: - 40 C to + 80 C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40 C: 21 days, IEC 60512-6
- Dry heat test at + 85 C: 10 days, IEC 60512-6


Mechanical Data

- Actuation force for key: 12015g
- Key travel: 2.0mm
- Lifetime (cycles): Min 2, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4


Operation System
- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX


Weight and Dimension

- Weight: 1.90kg
- Dimension: 356.00 x 126.40 x 42.90 mm (L x W x H)
