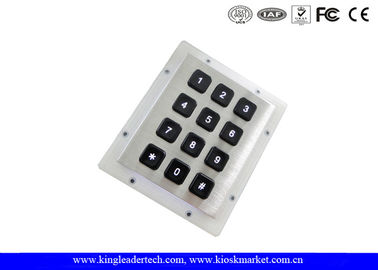

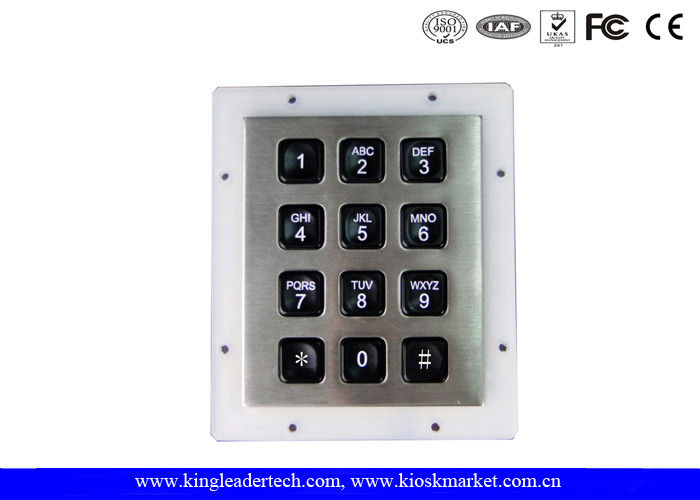

Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC
Model Number MKP92-12BL
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal
Supply Ability 2000pcs/month
Product Details
Material Of Front Panel Stainless Steel Material Of Back Panel Aluminum Alloy
Material Of Keycap PC Number Of Keys 16 Led Illuminated Backlight Keys
Interface USB Or PS/2 Or RS232 Layout Customization Available
High Light

back lit keyboard

,

custom keyboard

Leave a Message
Product Description

Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix



PN: MKP92-12BL



Technical Specification

Material

Front panel

304 stainless steel

Keys

High Temperature Polycarbonate

Back panel

Aluminum

Number of Keys

12

Matrix

3 x 4

Function

LED Backlight illuminated

Color of backlight

Blue, Green or Red

Electrical Data

Interface

USB or PS/2 or RS232(With electronic controller board)

10PIN connector (Without electronic controller board)

Certification

CE,FCC

Environmental Characteristics

Operating temperature

-20º C to + 60º C

Key travel

2.0mm

Lifetime (cycles)

Min 5, 000, 000 actuations

Sealing protection

IP65/NEMA4X from the front

Layout

Customizable available

Dimension

92.00 x 76.50 mm (W x D) (front panel)

Application

Door access control system or other application in dark or low-lit environment
