| Brand Name: | KINGLEADER |
| Model Number: | MKB-64A-TP |
| MOQ: | 1pcs |
| Price: | US$ |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Payment Terms: | T/T,Paypal |

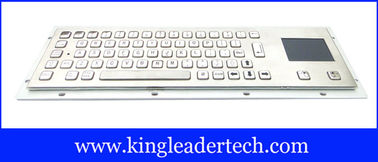

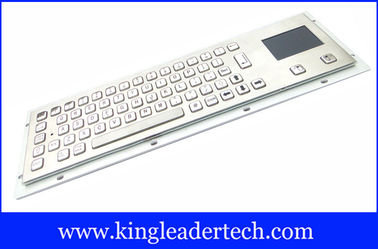

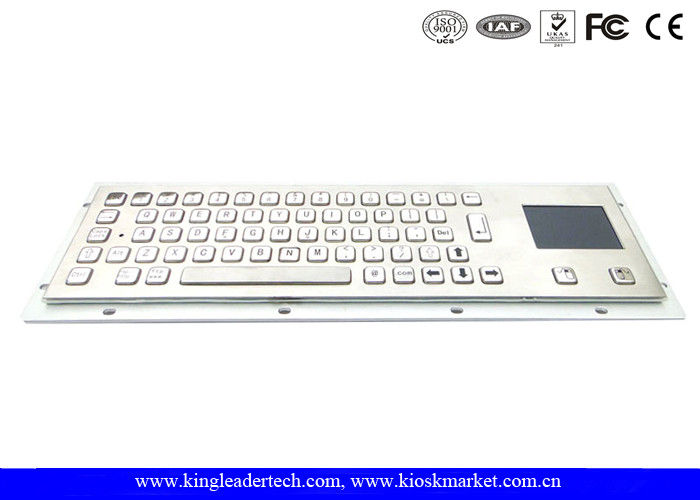

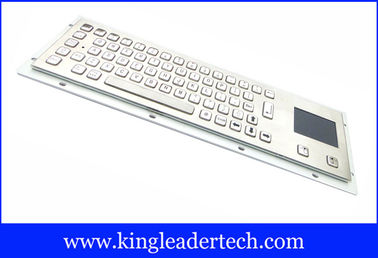

Brushed Stainless Steel Industrial Keyboard With Touchpad IP65 With 64 Keys
PN:MKB-64A-TP
Key Features:
-PS/2 or USB interface, easy to plug into the computers directly

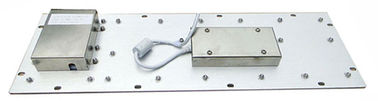

-Panel mount, installing from the back side
-Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel
-Specially designed to operate in harsh environments, making them ideal for the demanding applications in industrial environments
-Built from stainless steel, high vandal-proof
-Dust-proof and liquid-proof, meet IP65 requirement
-64 keys, with integrated touchpad
-Customizable
|
Specifications |
|
|
Material |
Front panel & Keys: Brushed stainless steel |
|
Back panel: Aluminum alloy |
|
|
Key cap: Flat/non-protruding short stroke key, raised Braille and etched graphics |
|
|
Touchpad cover: Composite |
|
|
Electrical Data |
Power supply voltage: DC 5 V 5% |
|
Current rating: 20 mA |
|
|
Interface: USB or PS2 |
|
|
EMC compliant. |
|
|
FCC: Part 15, class B |
|
|
Safety: EN 60950, CE compliant |
|
|
Environmental Characteristics |
Operating temperature: -20 C to + 60 C |
|
Storage temperature: - 40 C to + 80 C |
|
|
Saline mist: 96 hours, IEC 60512-6 |
|
|
Damp heat test at + 40 C: 21 days, IEC 60512-6 |
|
|
Dry heat test at + 85 C: 10 days, IEC 60512-6 |
|
|
Mechanical Data |
Actuation force for key:120±15g |
|
Key travel: 2.00mm |
|
|
Lifetime (cycles): Min 5, 000, 000 actuations |
|
|
Sealing protection: IP65/NEMA4X from the front |
|
|
Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 |
|
|
Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4 |
|
|
Operation system |
PS2: Win NT4, 98SE, 98ME, 2000, XP |
|
USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX |
|
|
Weight and Dimension |
Weight: 1.8 kg |
|
Dimension Dimension: Front panel: 400.0x124.0x22.2mm |
|
|
|
