Industrial Keyboard With Touchpad
>
Dust-proof IP65 Industrial Keyboard With Touchpad Stainless Steel With 103 Keys

Dust-proof IP65 Industrial Keyboard With Touchpad Stainless Steel With 103 Keys

Brand Name: KINGLEADER
Model Number: MKB-FN103A-TP-B
MOQ: 1pcs
Price: Get latest price
Packaging Details: 1pcs/box, 10pcs/ctns
Payment Terms: T/T,Paypal
Detail Information
Place of Origin:
China
Certification:
CE,FCC
Material Of Front Panel:
Stainless Steel
Material Of Back Panel:
Aluminum Alloy
Finish:
Electroplated Black
Number Of Keys:
103Keys
Mouse:
Integrated Touchpad
Interface:
USB Or PS/2
Supply Ability:
2000pcs/month
Highlight:

keyboards with touchpads

,

keyboard integrated touchpad

Product Description

Dust-proof IP65 Industrial Keyboard With Touchpad Stainless Steel With 103 Keys



PN:MKB-FN103A-TP-B

Key Features

1)  Integrated touchpad and numeric keypad
2)103 keys(of them 12 function keys), panel mount
3) Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback
4) Specially designed to operate in harsh environments, making it ideal for kiosks and other applications in harsh environment
5) Built from stainless steel, high vandal-proof.
6) Dust-proof and liquid-proof, meet IP65 requirement
7) PS/2 or USB interface for option
8) Customizable layout upon customers request



Specifications

Material

Front panel & Keys: Brushed stainless steel

Back panel: Aluminum alloy

Key cap: Protruding full travel key (2.0mm) with etched or laser engraved graphics

Touchpad cover: Composite

Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20 mA

Interface: USB or PS2

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

FCC: Part 15, class B

Safety: EN 60950, CE compliant

Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6

Mechanical Data

Actuation force for key:120±15g

Key travel: 2.00mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Weight and Dimension

Weight: 2.20 kg

Dimension:
Front panel: 478.0 x 135.0 mm
Back panel: 502.0 x 159.0 mm, thickness:32.10mm(to the tallest component)

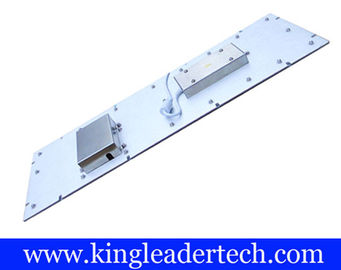

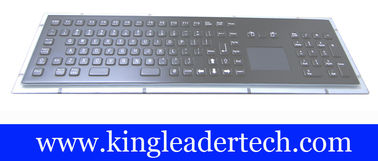

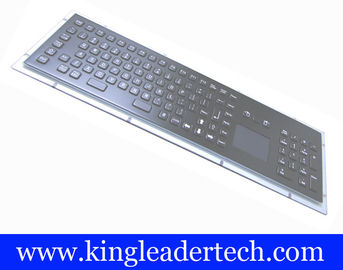

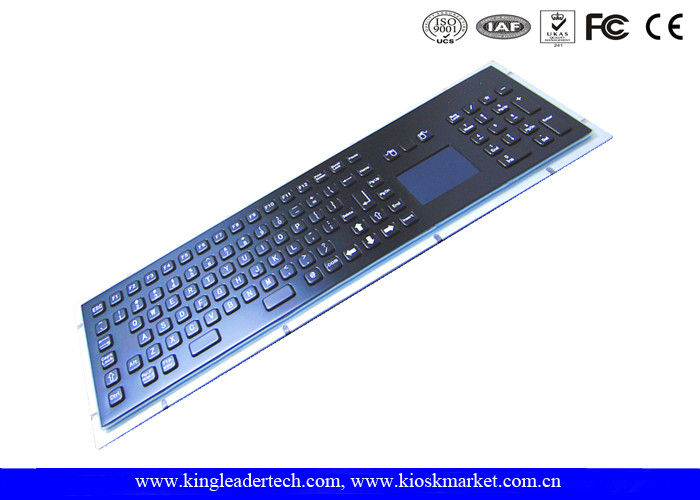

Dust-proof IP65 Industrial Keyboard With Touchpad Stainless Steel With 103 Keys 0

Dust-proof IP65 Industrial Keyboard With Touchpad Stainless Steel With 103 Keys 1
