Robust IP65 Illuminated Metal Keyboard Customizable With Trackball

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC
Model Number MKB-64B-TB-BL
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal
Supply Ability 3000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Of Front Panel Stainless Steel Material Of Back Panel Aluminum Alloy
Material Of Keycap High-Temperature Resistant PC Number Of Key 64 Illuminated Keys
Backlight Color Blue,Red Or White Protection Level IP65
Mouse Trackball Interface USB Or PS/2
High Light

illuminated keyboard

,

illuminated keyboards

Leave a Message
Product Description

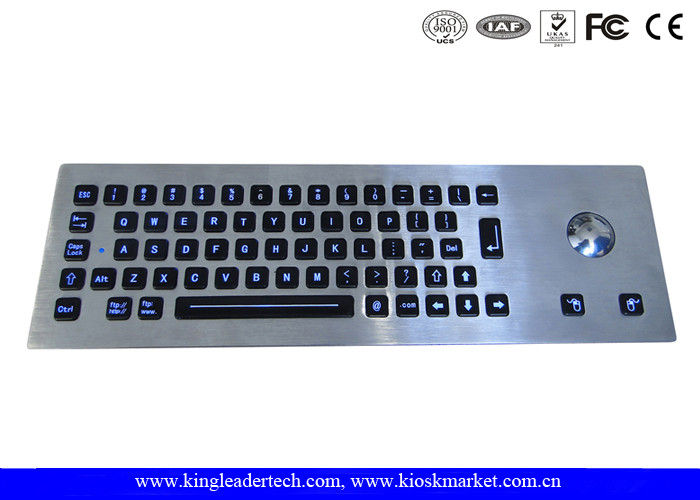

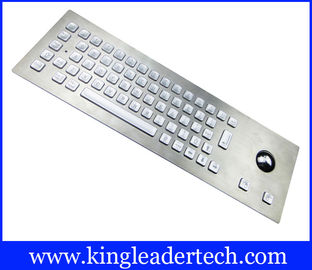

Robust IP65 Illuminated Metal Keyboard Customizable With Trackball



PN:MKB-64B-TB-BL

Key Features

1)  Dust-proof and liquid-proof, meet IP65 requirement

2), Integrated optical trackball delivers excellent pointing performance that conventional mechanical trackball cannot surpass

3) Protrudent full travel keys with laser-etched legend, excellent tactile feedback
4) Panel mount
5) Designed to operate in harsh and low-lit environments, making it ideal for demanding applications in public space or industrial environments
6) Robust construction, high resistance against vandalism
7) 65 LED backlit-lit keys
8) PS/2 or USB interface

9) Customizable layout upon customer’s requirements



Specifications

Material

Front panel & Keys: Brushed stainless steel

Back panel: Aluminum alloy

Keycaps:High-temperature resistant polycarbonate

Trackball: Stainless steel(Dia: 38mm)

Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20 mA

Interface: USB or PS2

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

FCC: Part 15, class B

Safety: EN 60950, CE compliant

Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6

Mechanical Data

Actuation force for key:120±15g

Key travel: 2.00mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Color

Keycap:black or silver

LED backlight:green, bluce or red

Weight and Dimension

Weight: 1.80kg

Dimension: 400.00 x 124.00 x 32.2MM
