| Brand Name: | KINGLEADER |
| Model Number: | MKB-63CA-TB-B |
| MOQ: | 1pcs |
| Price: | US$ |
| Packaging Details: | 1pcs/box, 10boxes/ctn |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union |

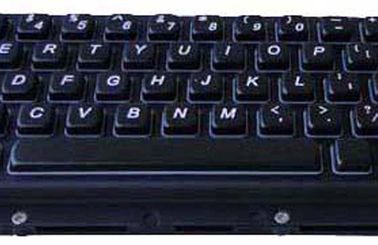

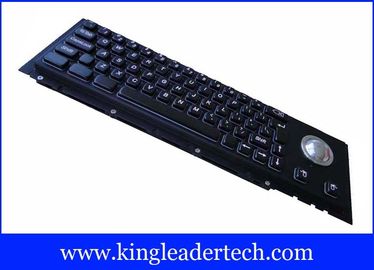

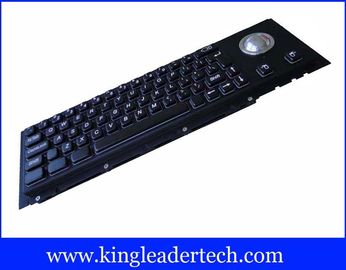

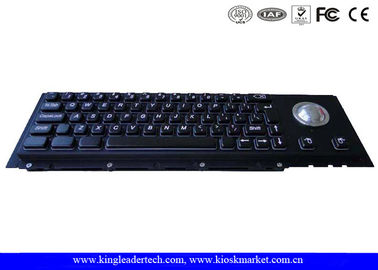

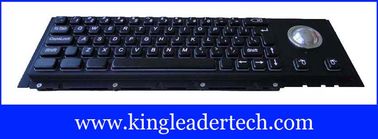

Custom Dust-Proof Black Metal Keyboard 63 Keys With Panel Mount
PN:MKB-63CA-TB-B
Key Features:
- Black face plate and keys with white legend/characters
- Built from stainless steel, resistant to vandalism, corrosive, rust
- 63 keys, built-in Cherry GmbH key-switches with integrated optical trackball;
- Full travel keys, excellent typing feel;
- Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places.
- Dust-proof and liquid-proof, IP65 compliant
- USB or PS2 interface available
- Custom layout available
|
Specifications |
|
|
Material |
Face plate: 304 stainless steel |
|
Keys: 304 stainless steel |
|
|
Trackball: 304 stainless steel (Dia: 38mm) |
|
|
Back plate: Aluminum |
|
|
Electrical Data |
Power supply voltage: DC 5 V ± 5% |
|
Current rating: 20 mA |
|
|
Interface: USB or PS2 |
|
|
EMC Emission:EN55022(B) |
|
|
Environmental Characteristics |
Operating temperature: -20 C to + 60 C |
|
Storage temperature: - 40 C to + 80 C |
|
|
Saline mist: 96 hours, IEC 60512-6 |
|
|
Damp heat test at + 40 C: 21 days, IEC 60512-6 |
|
|
Dry heat test at + 85 C: 10 days, IEC 60512-6 |
|
|
Mechanical Data |
Actuation force:80g |
|
Key travel: 4.0mm |
|
|
Lifetime (cycles): Min 5, 000, 000 actuations |
|
|
Sealing protection: IP65/NEMA4X from the front |
|
|
Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 |
|
|
Shock resistance: 3 axis 150 m/s -11 ms, IEC 60512-4 |
|
|
Operation system |
PS2: Win NT4, 98SE, 98ME, 2000, XP |
|
USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX |
|
|
Reliability |
MTBF:>20, 000 hours |
|
MTTR:<30 minutes |
|
|
Dimension |
Face plate:372.00 x 102.00 mm |
|
Overall:394.00 x 123.80 mm |
|
|
Thickness:33.80 mm ( to where the tallest part extends) |
|
|
Weight |
Weight: 1.8 kg |
|
