Industrial Stainless Steel Panel Mount Keyboard IP65 With Optical Mouse Trackball

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC,ROHS
Model Number MKB-F86B-TB-2
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability 2000pcs/month
Product Details
Name Industrial Keyboard With Trackball Material Stainless Steel
Material Of Buttons Stainless Steel Material Of Back Panel Aluminum Alloy
Interface USB/ PS2 Language Compatible With Win
High Light

Panel Mount Keyboard With Trackball

,

Panel Mount Keyboard IP65

,

Optical Mouse Trackball Stainless Steel Keyboard

Leave a Message
Product Description

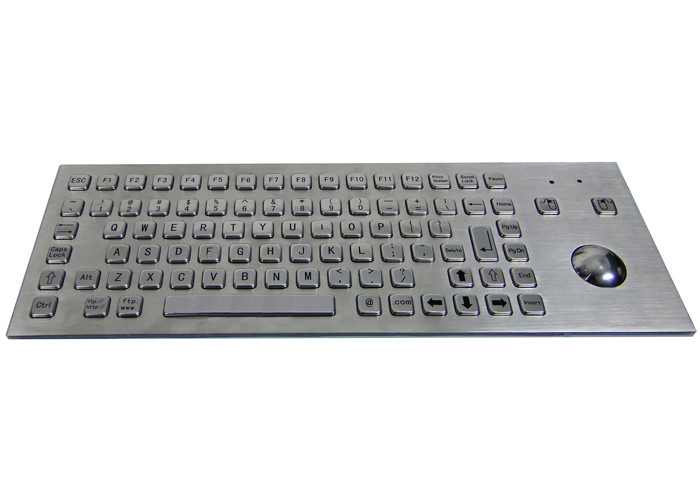

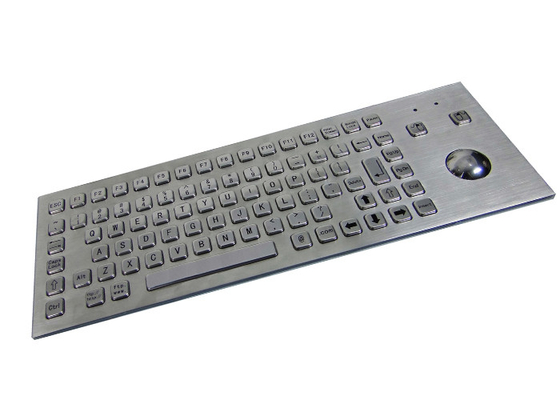

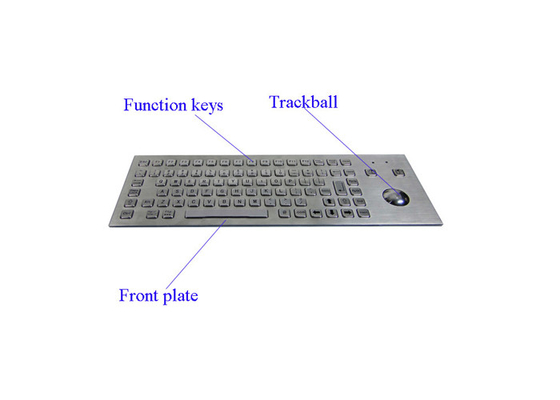

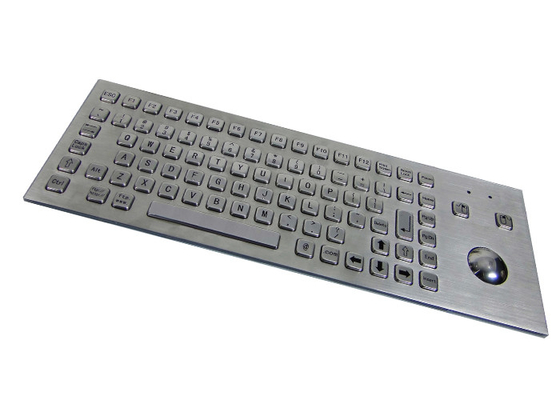

Industrial Keyboard Front Panel Mounting Keyboard with Optical Mouse Trackball



PN:MKB-F86B-TB-2



Key features of industrial keyboard with trackball:

- 86 keys( of them 12 function keys), panel mount
- Integrated trackball;
- Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel;
- Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places
- Built from stainless steel, high vandal-proof.
- Dust-proof and liquid-proof, meet IP65 requirement
- PS/2 or USB connector, easy to plug into computer directly
- Customizable



Items Specifications
Product Description
  • Rugged stainless steel, water-proof, vandal-proof keyboard with 86 keys and integrated optical trackball
Material - Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
Electrical Data - Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data - Actuation force for key:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Compatible Operation System - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10
Reliability

- MTBF:>20,000 hours

- MTTR:<30 minutes

Certification
  • FCC,CE,RoHS
Dimension
  • 319x135mm (Front panel),overall thickness:46mm
Weight
  • 2.20 kgs



Application:



- All kinds of kiosks such as shopping mall kiosk,check-in kiosk,printing kiosk,ticket kiosk,cash kiosk,ATM,ADM,CDM,unattended payment terminal etc

- Workstations or machines in factories

- Some special locations like toll gate,gas station,airport,seaport,underground mine etc.
