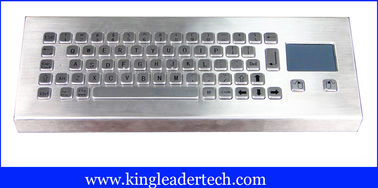

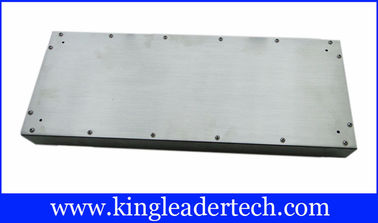

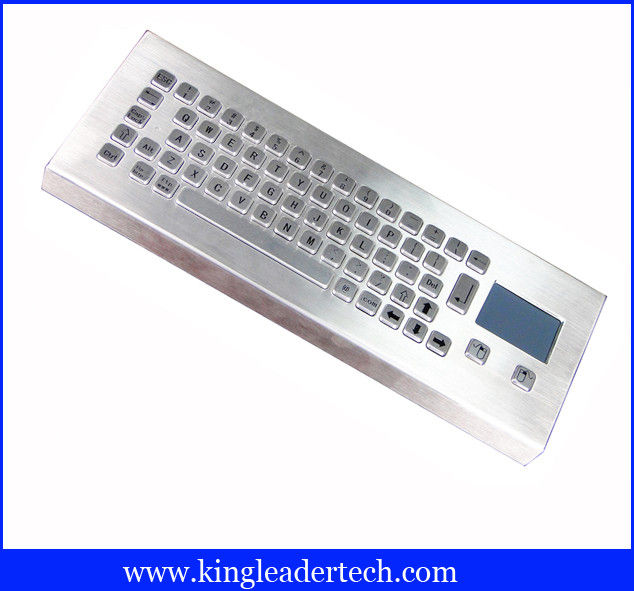

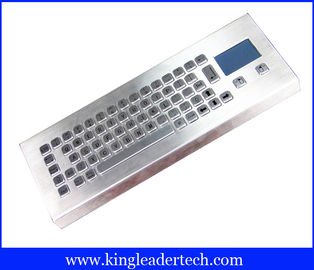

IP65 Rugged Mini Industrial Desktop Keyboard Metal With Touchpad

Place of Origin China
Certification CE,FCC
Model Number MKB-65-TP-MDT
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box,10boxes/ctn
Delivery Time 20days
Payment Terms T/T,Paypal
Supply Ability 2000pcs/month
Product Details
High Light

waterproof keyboard


industrial keyboard

Leave a Message
Product Description

IP65 Mini Industrial Desktop Keyboard Metal With Touchpad


Key Features
1) Desktop style

2) 65 keys, compact size with integrated touchpad

3) Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback

4) Designed and built to be used in harsh environments

5) Made of stainless steel, high vandal-resistance

6) Dust-proof and liquid-proof, meet IP65 up to IP68 requirement
7) PS/2 or USB interface for option
8) Customizable layout upon customer’s request


MKB-65-TP-MDT(Desktop Model)


Technical Specification


Front panel & Keys

Brushed stainless steel

Back panel

Brushed stainless steel



Electrical Data

Power supply voltage

DC 5 V ± 5%

Current rating

20 mA


USB or PS2

EMC compliant

Emission: EN 50081-1

Immunity: EN 50082-1


Part 15, class B



Environmental Characteristics

Operating temperature

-20º C to + 60º C

Key travel


Lifetime (cycles)

Min 5, 000, 000 actuations

Sealing protection

IP65/NEMA4X from the front

Vibration resistance

5 Hz - 200 Hz, IEC 60512-4

Shock resistance

3 axis 150 m/s² - 11 ms, IEC 60512-4

Compatible Operation System


Win NT4, 98SE, 98ME, 2000, XP,Win7,Linux,Win8


Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX, Win7,Linux,Win8

Weight and Dimension




356.00 x 126.40 x 42.90 mm (L x W x H)
