| Brand Name: | KINGLEADER |
| Model Number: | MKB-64A |
| MOQ: | 1pcs |
| Price: | US$ |
| Packaging Details: | 1pcs/box,10pcs/ctn |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram |

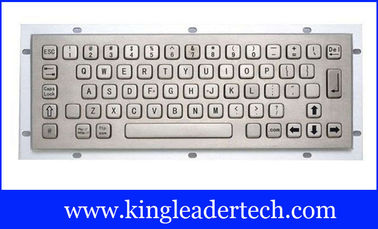

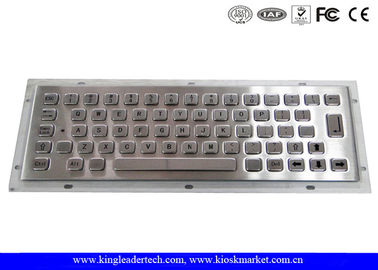

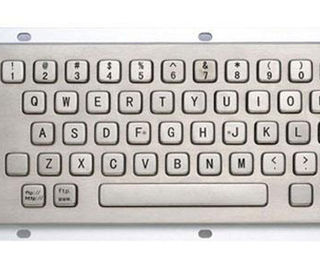

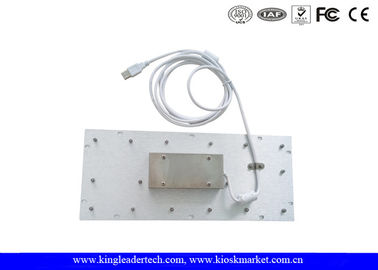

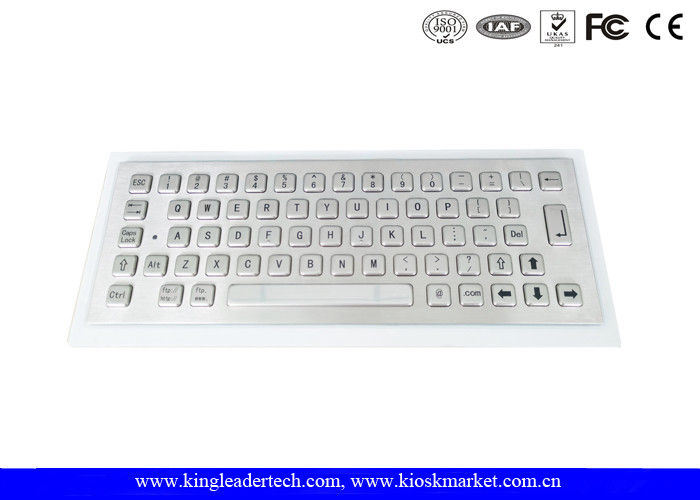

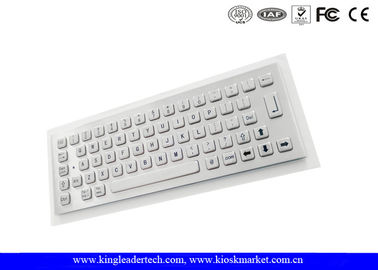

IP65 Waterproof Industrial Metal Keyboard with USB Interface Suitable for Kiosk
MKB-64A(Panel Mount Model)
Short Description
Rugged stainless steel, water-proof, vandal-proof, panel mount keyboard with 64 customizable,
protruding, full travel keys
Specifications
Material
- Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy
Electrical Data
- Power supply voltage: DC 5 V ± 5%
- Current rating: 20mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant
Environmental Characteristics
- Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data
Actuation force for key:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Operation system
- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX
Weight and dimension
- Weight: 1.50kgs
Dimension:
Front panel: 300.0x110.0 mm
Back panel: 312.0x122.0 mm
Thickness:22.2mm
|
Technical Specification |
|
|
Material |
|
|
Front panel & Keys |
Brushed stainless steel |
|
Back panel |
Aluminum alloy |
|
Mouse |
None |
|
Electrical Data |
|
|
Power supply voltage |
DC 5 V ± 5% |
|
Current rating |
20 mA |
|
Interface |
USB or PS2 |
|
EMC compliant |
Emission: EN 50081-1 Immunity: EN 50082-1 |
|
FCC |
Part 15, class B |
|
Certification |
CE,FCC |
|
Environmental Characteristics |
|
|
Operating temperature |
-20º C to + 60º C |
|
Key travel |
2.0mm |
|
Lifetime (cycles) |
Min 5, 000, 000 actuations |
|
Sealing protection |
IP65/NEMA4X from the front |
|
Vibration resistance |
5 Hz - 200 Hz, IEC 60512-4 |
|
Shock resistance |
3 axis 150 m/s² - 11 ms, IEC 60512-4 |
|
Compatible Operation System |
|
|
PS2 |
Win NT4, 98SE, 98ME, 2000, XP,Win7,Linux,Win8 |
|
USB |
Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX, Win7,Linux,Win8 |
|
Weight and Dimension |
|
|
Weight |
1.50kg |
|
Dimension |
Front panel: 300.0x110.0 mm Thickness:22.2mm |
Key Features
Ø Made of high-pure stainless steel materials
Ø high strengthen plastic mounting board
Ø Standard QWERTY layout. (Any language is available without additional charge)
Ø Integrated high sensitive touchpad
Ø Left/mid/right click buttons
FAQ:
1. Q: do you accept customization?
A: Yes, some of our products can accept OEM.
2. Q: Can you provide a product authorized agent?
A: Yes, of course.
3. Q: do you have a factory?
A: Of course, we have nearly 10 years of experience in Industrial Keyboard, and we have a large number of cooperative enterprises in China.
4. Q: do you have certification?
A: Yes, we have ROHS factory certification.
|
