| Brand Name: | Can print logo |
| Model Number: | MKB-64B-TP |
| MOQ: | 1pcs |
| Price: | US$ |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram |

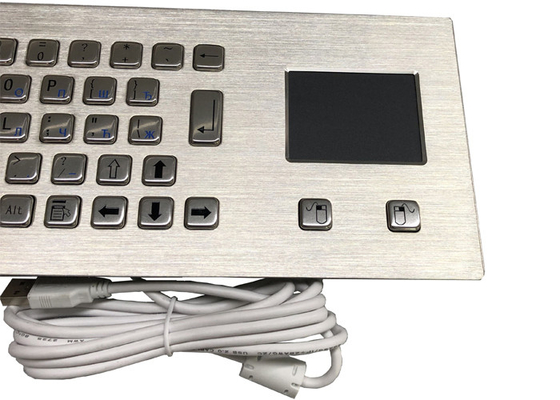

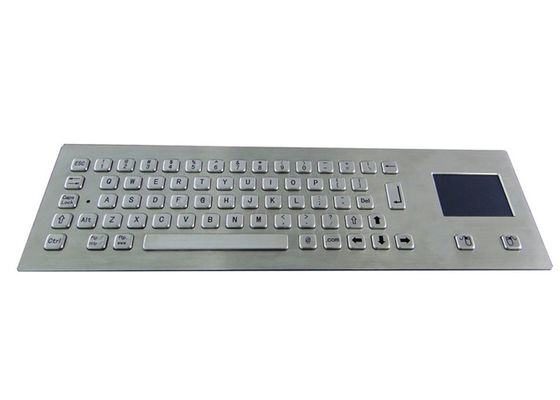

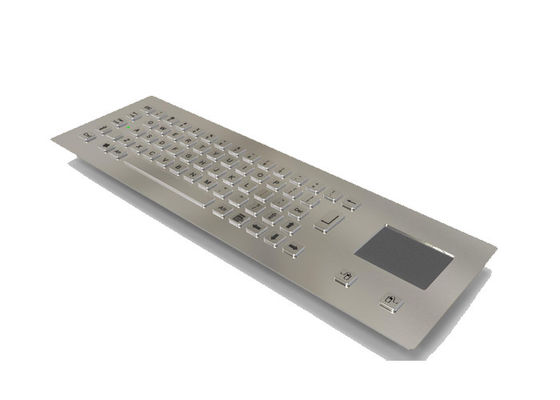

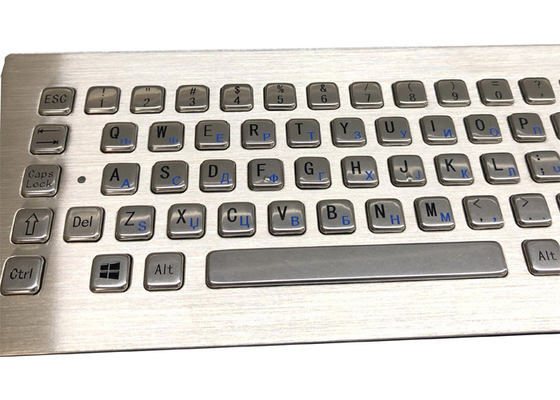

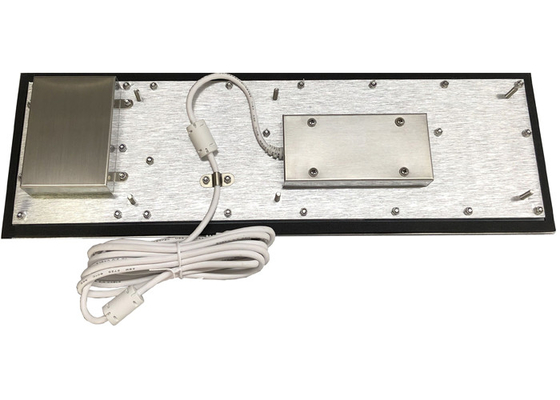

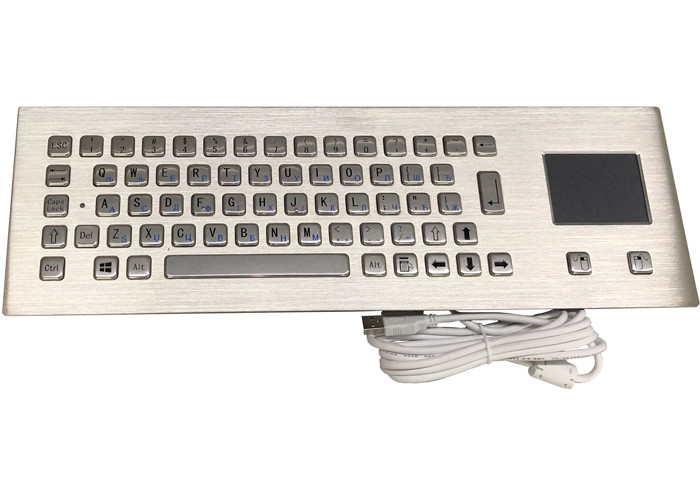

Stainless Steel Industrial Keyboard With Touchpad Used for Industrial Machines
PN:MKB-64B-TP
Key Features:
1) 64 keys, with integrated touchpad;
2) Panel mount
3) Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel
4) Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places.
5) Built from stainless steel, high vandal-proof.
6) Dust-proof and liquid-proof, meet IP65 requirement
7) PS/2 or USB interface, easy to plug into the computers directly
8) Customizable
|
Specifications |
|
|
Material |
Front panel & Keys: Brushed stainless steel |
|
Back panel: Aluminum alloy |
|
|
Trackball: Stainless steel(Dia: 38mm) |
|
|
Electrical Data |
Power supply voltage: DC 5 V 5% |
|
Current rating: 20 mA |
|
|
Interface: USB or PS2 |
|
|
EMC compliant. |
|
|
FCC: Part 15, class B |
|
|
Safety: EN 60950, CE compliant |
|
|
Environmental Characteristics |
Operating temperature: -20 C to + 60 C |
|
Storage temperature: - 40 C to + 80 C |
|
|
Saline mist: 96 hours, IEC 60512-6 |
|
|
Damp heat test at + 40 C: 21 days, IEC 60512-6 |
|
|
Dry heat test at + 85 C: 10 days, IEC 60512-6 |
|
|
Mechanical Data |
Actuation force for key:120±15g |
|
Key travel: 2.0mm |
|
|
Lifetime (cycles): Min 5, 000, 000 actuations |
|
|
Sealing protection: IP65/NEMA4X from the front |
|
|
Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 |
|
|
Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4 |
|
|
Touchpad |
Power supply voltage: 5 VDC ± 10% |
|
Current rating (active mode): 17 mA |
|
|
Interface: PS2 or USB |
|
|
X/Y position sensing resolution: 40 counts/mm |
|
|
X/Y position reporting: Relative |
|
|
Tracking speed: Maximum 1, 016 m/sec |
|
|
Operation system |
PS2: Win NT4, 98SE, 98ME, 2000, XP |
|
USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX |
|
|
Weight and Dimension |
Weight: 1.80kg |
|
Dimension: Front panel: 400.0x124.0x22.2mm |
|
Our Services
1. Our core service concept: Customer orientation and establishing prestige through quality
2. Strict and repeat test before delivery.
3. Prompt and on-time delivery,
4. Professional and quick online technical support and solutions.
5. 7*24 after-sales service team
6. 3 months warranty. (shipping exclusive)
7. Any trial order is welcomed.
8. Customized order is welcomed.
Q. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: How will you deliver the products?
A: We can deliver by express, by sea, by air or at you request.
Q: When will I get my products after delivery?
A: It varies from different places. We will recommend the best and fastest type of shipping for you.
Q: How is the inventory of your company?
A: We keep a large stock of goods to ensure our prompt delivery
|
|
