| Brand Name: | KINGLEADER or Custom |
| Model Number: | MKP62-12BL |
| MOQ: | 1pcs |
| Price: | US$15-25 |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram |

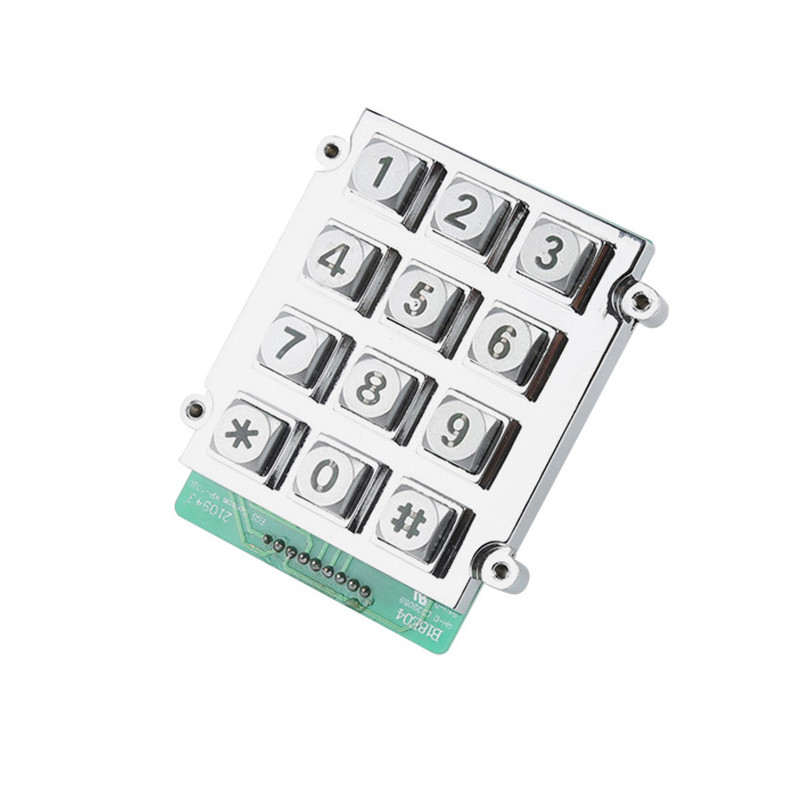

KINGLEADER’s MKP62-12BL,a 12-key backlit keypad matrix is made of zinc alloy and sealed to IP65 standard.4 mounting holes are designed for installing the keypad onto other equipment and 9-pin connector on the PCB is used to connect the keypad to its master equipment/device.It is widely used in telephone,intercom,door access control system,vending machine or other low-lit or dark environment.
|
Items |
Specifications |
|---|---|
| Key Features |
- 12 back-lit keys,all keys are in the same size - Keys in 3 X 4 matrix - LED backlight makes sure all characters on each key can be sufficiently lighted up and clearly seen in dark environment - Recessed durable characters - Panel mount from the rear side - Exposed parts(front panel and keys) made of zinc alloy electroplated with chromium , high resistance against destruction,rust,oxidation etc - Dust-proof and liquid-proof, IP65 compliance after properly mounted - Backlight:White,blue,red,yellow etc for option - Application:Telephone,intercom,door access control system,vending machine or other application in dark or low-lit environment |
| Material | - Face plate: zinc alloy - Keys: zinc alloy - Back plate: PCB |
| Electrical Data |
- Power supply voltage: DC 3.3V,5V,12V,24V for option - Interface: 9-pin or USB or PS/2 |
| Environmental Characteristics |
- Working temperature: -20℃~+60℃ - Storage temperature: -40℃~+80℃ - Relative humility: 20~95% - Atmospheric pressure: 50-110 K Pa |
| Mechanical Data |
- Actuation force: 180-200g - Key travel: 0.45mm |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
| Reliability |
-MTBF:>20,000 hours -MTTR:<30 minutes |
| Certification | FCC,CE,RoHS |
| Dimension | -62.60 x 70.00 mm(W x H) (front panel) |
| Weight | 0.20 kgs |
Dimensional drawing(mm)
Schematic drawing:
Application:
FAQ
1. Q: How could I get samples?
A: If you need to order sample for checking-up,we would like to ask you to pay for the samples and courier freight.We send the samples to you only after receipt of your payment.if you have an courier account,you can send your courier to collect samples from our company or send us the samples charge together with the courier cost.
2. Q: How much the Courier freight will be for the samples?
A: Courier freight depends on the quantity,weight and carton size and your area.
3. Q: How can i get your price list?
A: Please leave your contact way Such as Email/MSN/Skype/ to us or click "Send Message“.we will contact to you and pass our quotation sheet to you.
4. Q: Can you arrange the transportation for us?
A: Yes,We can arrange transportation by sea or by air.
5. Q: What's your usual payment term for orders?
A: We accept terms of T/T /Westunion/Paypal/LC
6. Q: what's the warranty of your products?
A: one year
Why us?
1, ISO9001:2015 certification
2, Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS
3, Reasonable price and fast response
4, Over 20 years of experience in rugged input device and touchscreen kiosk
5, OEM and ODM capability
6, Flexibility in customization and size of order
7, Trusted suppliers of many world-class famous brands in the industry
Our Services
* We’re a professional manufacturer for over 10 years.
* Experienced Technical Staffs and Patient, professional sales team.
* High quality assurance with competitive price
* OEM and ODM available.
* Any of your feedback will be responded within 12 hours
* Best after sales service to ensure satisfaction from customers.
How to order?
If you are interested in our products and want to place an order, firstly contact us by email,or contact with us online and we will send you our price list.
After that you can make a list of the products or just show the pictures that you are interested in and send it to usso that we can prepare the Proforma Invoice with freight cost and bank account for your checking.
After you received the Proforma Invoice you can arrange payment using Western Union or Bank Transfer or Paypal.
Once we receive your full payment we prepare your goods and ship them out in 3-5 working days.
And we need to know the following information of your order:
a) Shipping information - Contact Name, Company name, Detail address, Phone number, Fax number,
b) Product information - model numbers, quantity, pictures
c) Delivery time required
d) Freight payment (by collect or prepare),or if you have own forwarder, tell us their contact details
Quality Check and Warranty:
We have a strict QC department in the factory, all raw material must be inspected before mass production.
Semi-product and final product must be checked very carefully on production line. Pick up defective ones and pack the good ones.
And we check our products one by one before we pack and ship to make sure they are all what you ordered, to make sure the quantity be in good condition.
We provide 1 year warranty.Please contact us whenever issues occur and we we’d try our best to assist.
Shipping terms:
1. Usual order: By express, DHL/ UPS/ Fedex etc. methods as you requested
2. Large order: By sea or By air
Payment terms:
Cash,Western Union, Bank Transfer(T/T), paypal,MoneyGra,Credit card
Main Markets:
North America; South America; Eastern Europe; Mid East; Eastern Asia; Western Europe; Central America; Northern Europe; Southern Europe
|
|
