| Brand Name: | KINGLEADER |
| Model Number: | DX-88F-TP |
| MOQ: | 1pcs |
| Price: | US$30-50 |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, T/T, Western Union, MoneyGram,Credit card |

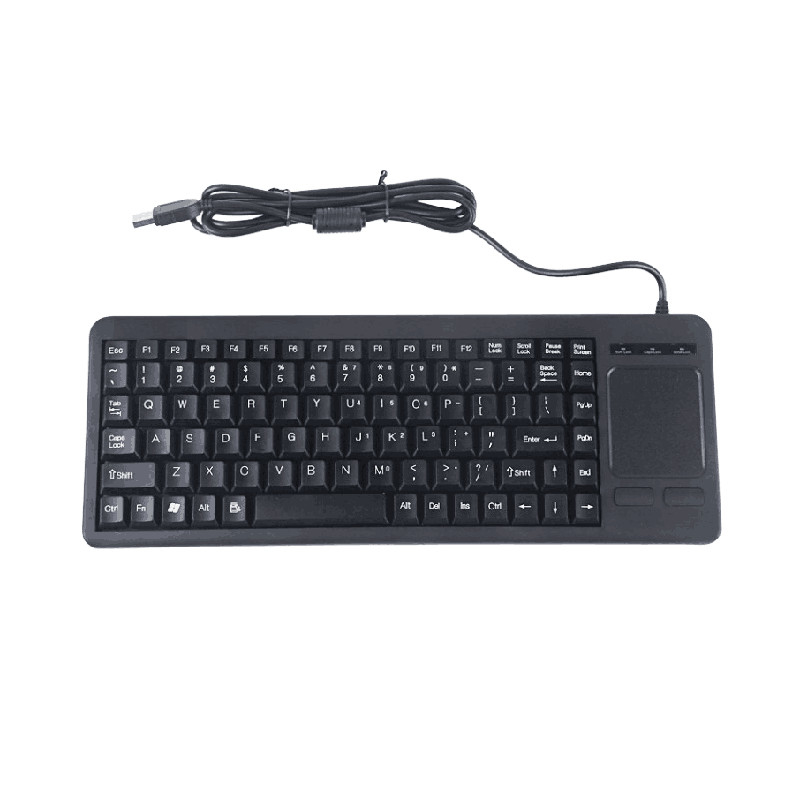

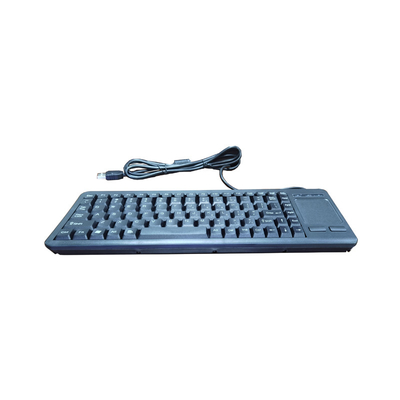

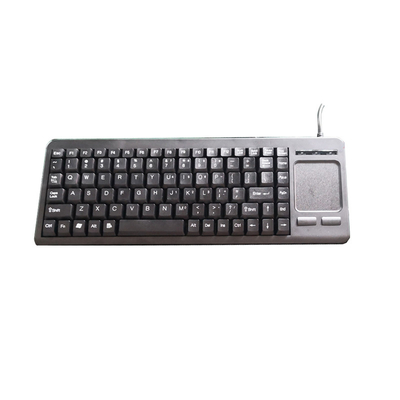

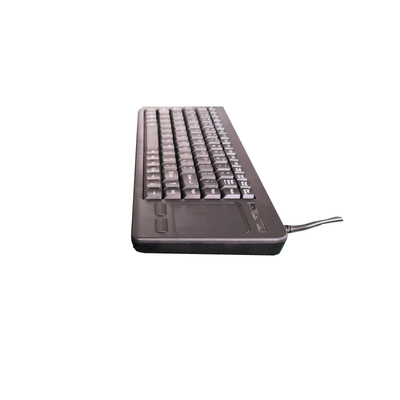

KINGLEADER's DX-88F-TP is a Compact-sized Industrial Plastic Keyboard With 88 Key and Integrated Touchpad,it is built with laptop-style key technology,embracing both the comfort of laptop keyboards and the ruggedness of industrial keyboards.
Due to its unique design and construction,it is widely used in industrial workplaces like manufacturing,mining etc.
|
Items
|
Specifications |
|---|---|
| Key Features |
- This compact keyboard is built with laptop-style key technology,integrated with a touchpad,embracing both the comfort of laptop keyboards and the ruggedness of industrial keyboards - 88 keys - Laser-etched key legend - Cable length:1.5m - Application: industrial workplaces like manufacturing,mining etc |
| Material |
- PC/ABS for the case and keys |
| Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: <=100 mA - Interface: USB or PS2 - EMC Emission:EN55022(B) |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Actuation force: 50 ±10g - Key travel: 2.2mm ±0.5mm - Lifetime (cycles): Min 5, 000, 000 actuations - Sealing protection: IP65/NEMA4X from the front - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
| Reliability |
-MTBF:>20,000 hours -MTTR:<30 minutes |

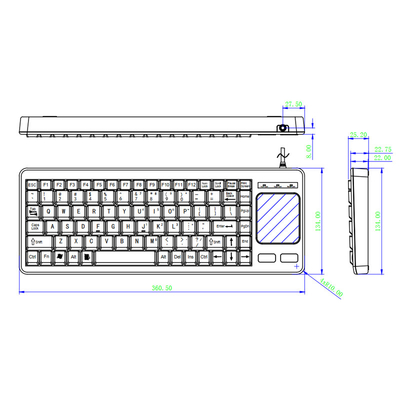

| Dimension | -360.5 x 134 x 22mm(L x W x T) |
| Weight |
0.50 kgs
|
Company Information:
KINGLEADER is an ISO9001:2015 certified manufacturer,we are engaged in R&D,production,sale and service of rugged keyboard,rugged keypad,rugged trackball,rugged touchpad and touchscreen kiosk etc.
Moreover, OEM and ODM manufacturing,plastic mold building and plastic injection is a major part of our business.
Why us?
1,ISO9001:2015 certification
2,Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS
3,Reasonable price and fast response
4,Over 20 years of experience in rugged input device and touchscreen kiosk
5,OEM and ODM capability
6,Flexibility in customization and size of order
7,Trusted suppliers of many world-class famous brands in the industry
|
|
