| Brand Name: | KINGLEADER |
| Model Number: | MKB-F86-DT-2 |
| MOQ: | 1pcs |
| Price: | US$130-200/pc Exworks |
| Packaging Details: | 1pcs/box,10boxes/ctn |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram |
|
Items
|
Specifications |
|---|---|
| Product Description |

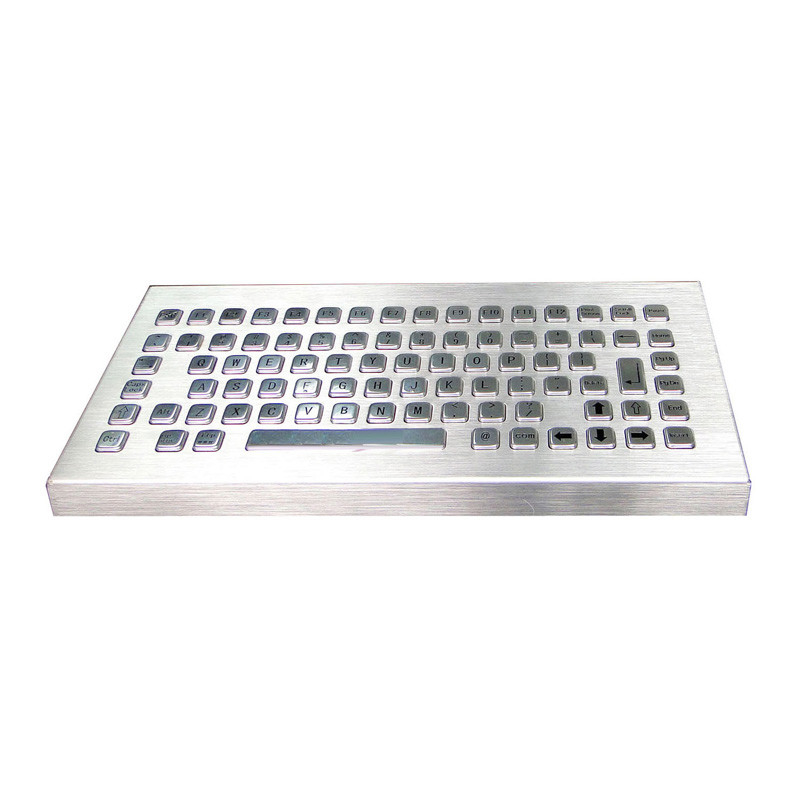

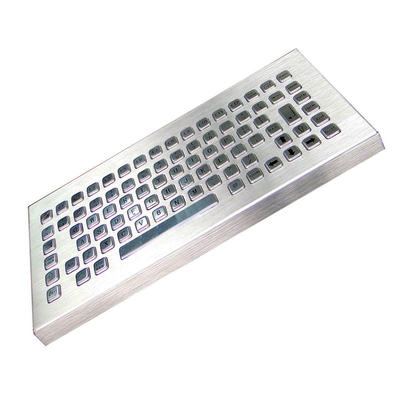

- Rugged stainless steel, water-proof, vandal-proof, desktop keyboard with 86 customizable, full-travel keys |
| Key Features |
- Desktop style,no mounting needed,enjoy the convenience of mobility - 86 keys including 12 function keys F1~F12 - Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback - Etched graphics with permanent ink - Specially designed to operate in harsh environments, making it ideal for the applications in harsh environment. - Exposed parts built from stainless steel,high resistance against rust,corrosion and vandalism. - Completely sealed to meet IP65 up to IP68 requirement. - PS/2 or USB interface for option - Customizable layout/characters upon customer’s request. |
| Material | - Case & Keys: Brushed stainless steel |
| Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: 20 mA - Interface: USB or PS2 - EMC compliant. Emission: EN 50081-1 Immunity: EN 50082-1 - FCC: Part 15, class B - Safety: EN 60950, CE compliant |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Actuation force for key:120±15g - Key travel: 2.0mm - Lifetime (cycles): Min 5, 000, 000 actuations - Sealing protection: IP65/NEMA4X from the front - Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4 |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
| Reliability |
- MTBF:>20,000 hours - MTTR:<30 minutes |
| Certification |
- FCC,CE,RoHS |

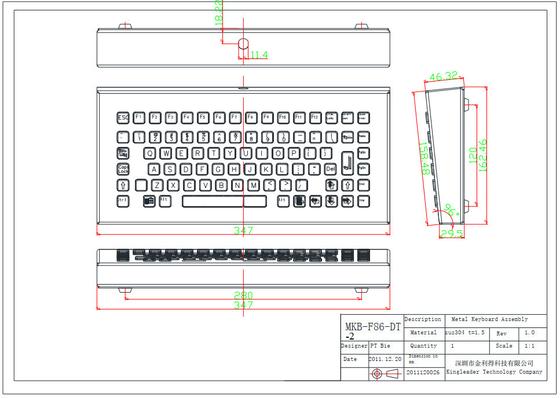

| Dimension | - Dimension: 347.00 x 162.46 x 46.32 mm (L x W x H) |
| Weight |
- 2.4kgs |
|
|
