| Brand Name: | KINGLEADER or customized |
| Model Number: | MKP136-15F |
| MOQ: | 1pcs |
| Price: | US$30-70 |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union |

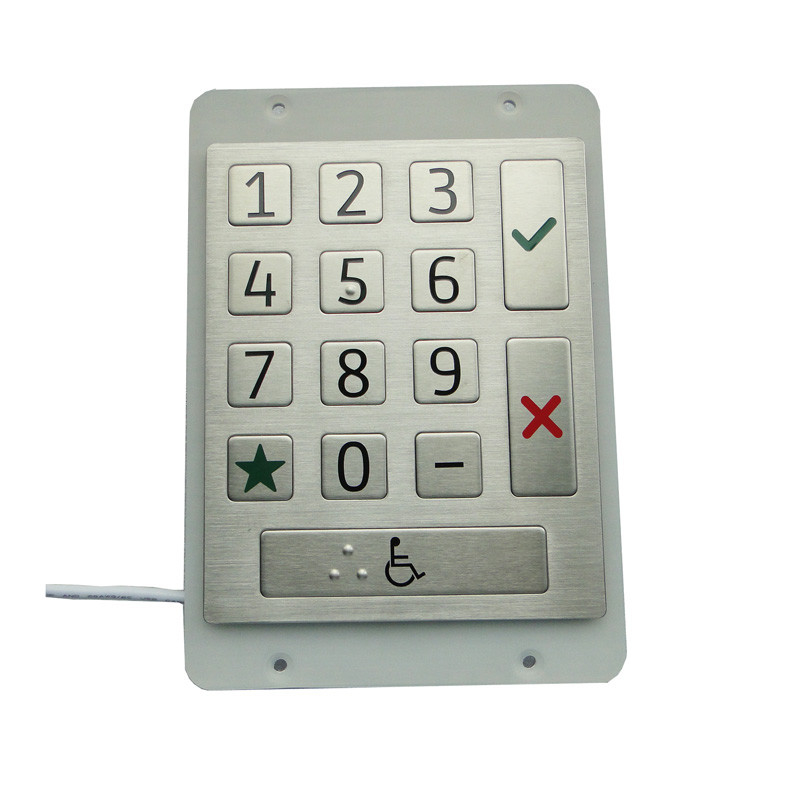

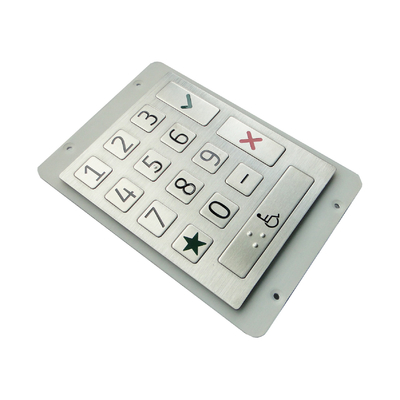

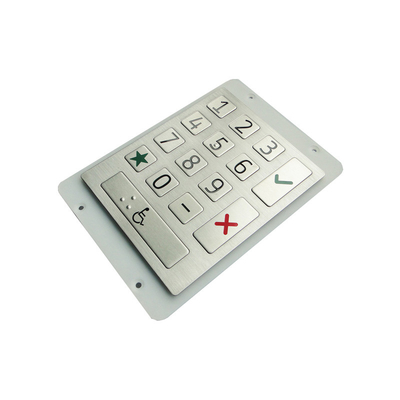

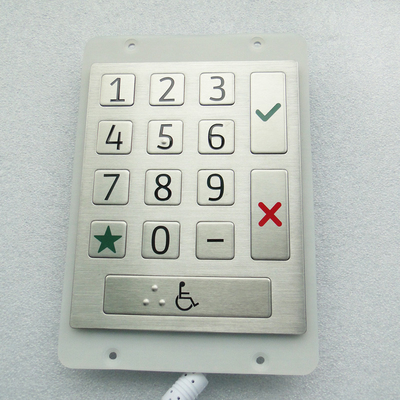

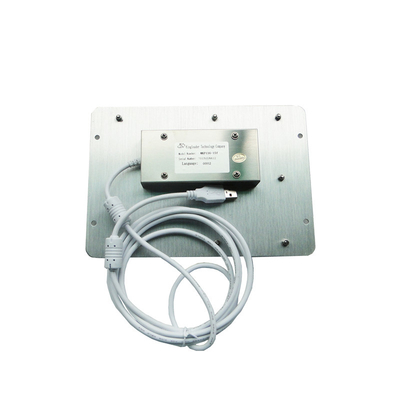

KINGLEADER’s MKP136-15F,is a 15-key stainless steel keypad.
Three of the keys are significantly big for convenient use of eldly or visually-weak people.
Braille on some of keys is designed for visully-disable.
Due to its unique design and build,it is rugged,vandal-proof,wterproof it is an ideal input terminal used in industrial or self-service terminals.
|
Items
|
Specifications |
|---|---|
| Key Features |
- 15 flush keys,crispy tactile feedback - Keys are in 3X5 matrix - Panel mount from the rear side - Exposed parts made of stainless steel,high resistance against destruction,rust etc - Silicone keypad membrane extends beneath the front panel way to the edge of the back panel, so the membrane also functions as a sealing gasket,no additional gasket will be needed when installed,therefore this design can better prevent water from seeping into the PCB than other conventional design (where the rubber is the same size as the front panel),this enhancement makes it an ideal choice for outdoor application. - Application: Door access control system,outdoor parking system,ATM, ADM, CDM, unattended payment terminals, vending machines, ticketing machines, gaming machines,kiosks,workstation,outdoor weight station etc. |
| Material | - Face plate: 304 stainless steel - Keys: 304 stainless steel - Back plate: Aluminum |
| Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: 20 mA - Interface: USB,PS2,RS232 and PIN - EMC Emission:EN55022(B) |
| Environmental Characteristics |
- Working temperature: -20℃~+60℃ - Storage temperature: -40℃~+80℃ - Relative humility: 20~95% - Atmospheric pressure: 50-110 K Pa |
| Mechanical Data |
- Actuation force: 150±15g - Key travel: 0.45mm |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
| Reliability |
-MTBF:>20,000 hours -MTTR:<30 minutes |
| Dimension | -136.50 x 169.60 mm (W x D) (front panel) |
| Weight |
0.25 kgs
|
|
