| Brand Name: | KINGLEADER |
| Model Number: | MKB-65A-TP-M |
| MOQ: | 1pcs |
| Price: | US$125/pc Exworks |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Payment Terms: | Paypal, L/C, D/A, D/P, T/T, Western Union |

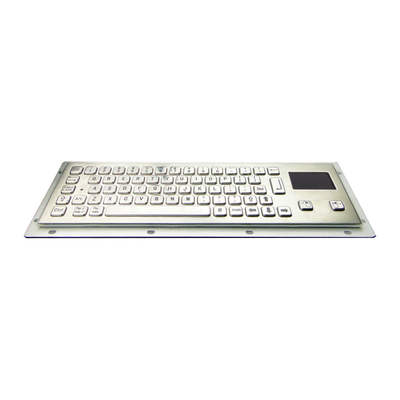

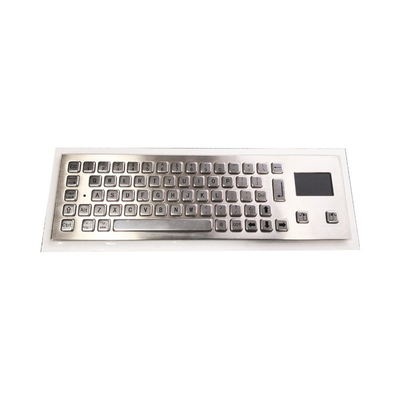

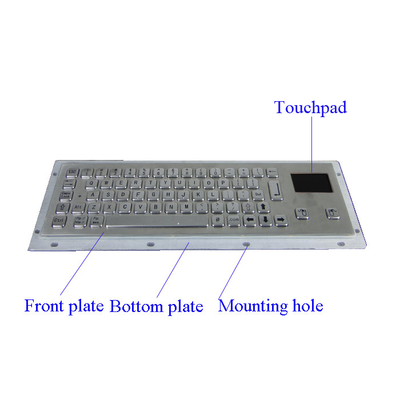

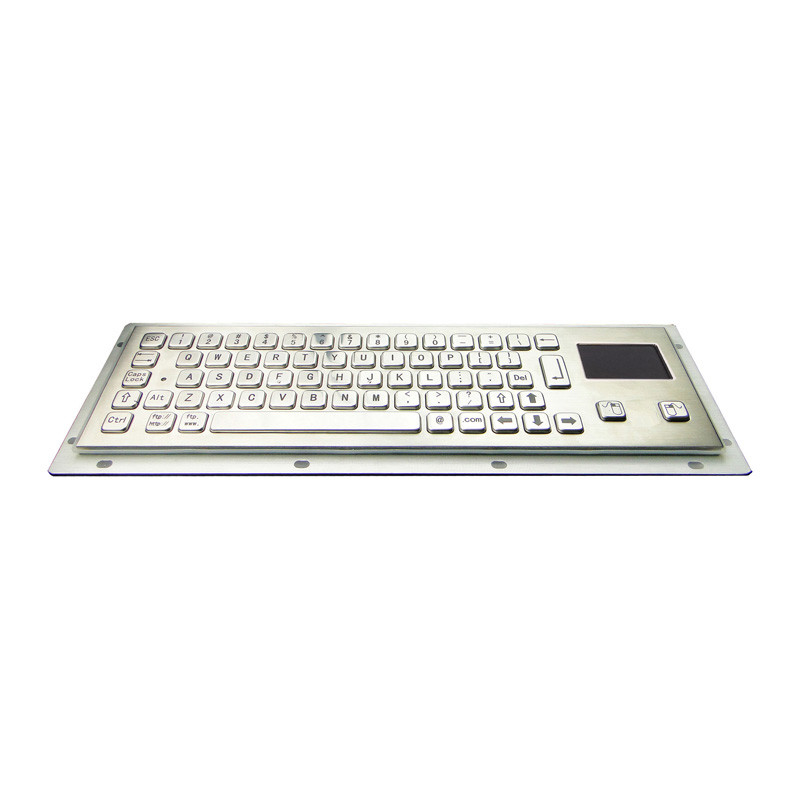

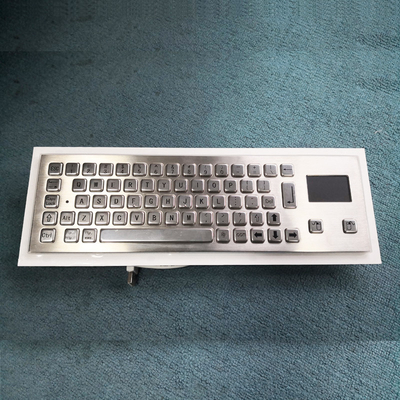

KINGLEADER's MKB-65A-TP-M,is a rugged compact panelmount stainless steel keyboard,while the keys still remain big enough for finger to press,avoiding the disadvantage of too small keys that exists in most of small-sized keyboards.
|
Items
|
Specifications |
|---|---|
| Product Description |
- Small in overall dimension,while the keys still remain big enough for finger to press,avoiding the disadvantage of too small keys that exists in most of small-sized keyboards |
| Key Features |
- 65 keys, compact size with integrated touchpad - Panel mount from the rear side - Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feel - Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in industrial or military environments - Built from stainless steel, robust enough to work against destruction - Dust-proof and liquid-proof, meet IP65 requirement - PS/2 or USB interface, easy to plug into computers directly - Customizable layout |

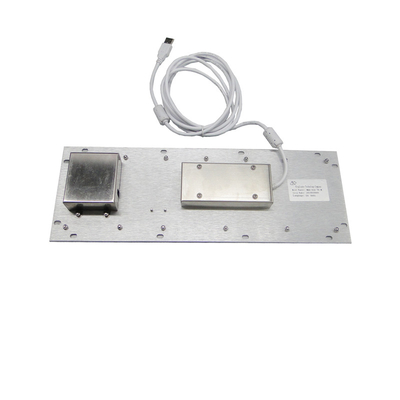

| Material | - Front panel & Keys: Brushed stainless steel - Back panel: Aluminum alloy - Key cap: Protruding full travel key (2.0mm) with etched graphics |
| Electrical Data |
- Power supply voltage: DC 5 V ± 5% - Current rating: 20 mA - Interface: USB or PS2 - EMC compliant. Emission: EN 50081-1 Immunity: EN 50082-1 - FCC: Part 15, class B |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Actuation force for key:120±15g - Key travel: 2.0mm - Lifetime (cycles): Min 2, 000, 000 actuations - Sealing protection: IP65/NEMA4X from the front - Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4 |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP,Linux - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10,Linux |
| Reliability |
- MTBF:>20,000 hours - MTTR:<30 minutes |
| Certification |
- FCC,CE,RoHS |
| Dimension |

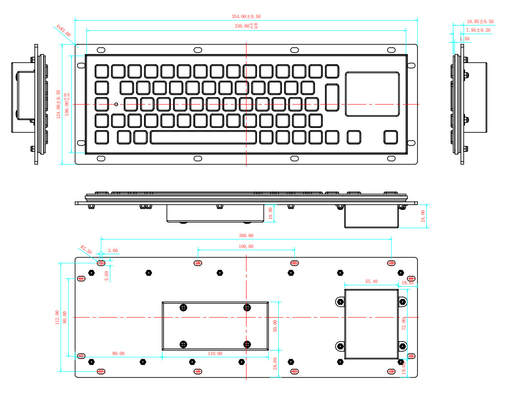

- Front panel: 330.0x100.0 mm |
| Weight |
- 1.50 kgs |
|
