| Brand Name: | KINGLEADER |
| Model Number: | MKB-64A |
| MOQ: | 1pcs |
| Price: | US$115/pc Exworks |
| Packaging Details: | 1pcs/box,10pcs/ctn |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union |

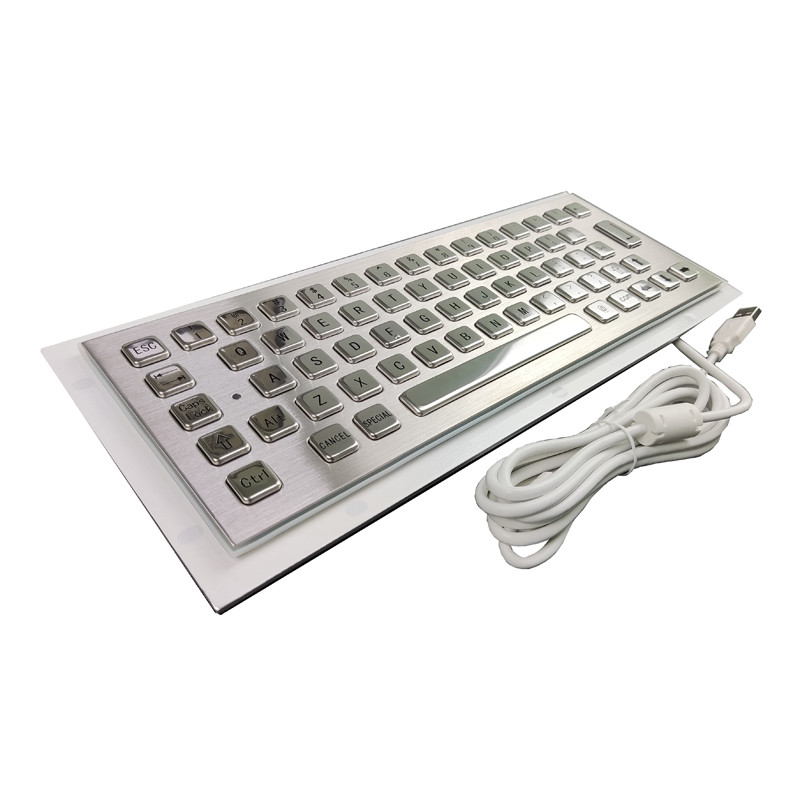

Compact Format Rugged Panelmount Metal Stainless Steel Industrial Keyboard With 64 Custom Keys
Application: Ideal for the use in industrial,military environments or kiosk deployed in public places.
|
Items
|
Specifications |
|---|---|
| Key Features |
- COMPACT FORMAT METAL KEYBOARD - 64 stainless steel keys - Panelmount from the rear side - Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback - Specially designed to operate in harsh environments, making it ideal for kiosks and other applications in harsh environments - Built from stainless steel, high vandal-proof - Dust-proof and liquid-proof, meet IP65 requirement - PS/2 or USB interface - Customizable layout |
| Material |
- Face plate: 304 stainless steel - Back plate: Aluminum |
| Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: 20 mA - Interface: USB or PS2 - EMC compliant. Emission: EN 50081-1 Immunity: EN 50082-1 - FCC: Part 15, class B - Safety: EN 60950, CE compliant |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Actuation force for key:120±15g - Key travel: 2.0mm - Lifetime (cycles): Min 5, 000, 000 actuations - Sealing protection: IP65/NEMA4X from the front - Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4 |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP,Linux - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10,Linux |
| Reliability |
- MTBF:>20,000 hours - MTTR:<30 minutes |
| Certification | - FCC,CE,RoHS |

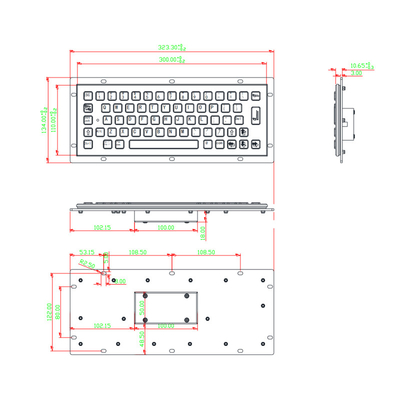

| Dimension |
- Front panel: 300.0x110.0 mm - Back panel: 312.0x122.0 mm - Thickness:22.2mm |
| Weight | - 0.90 kgs |
|
