| Brand Name: | KINGLEADER |
| Model Number: | SKB-85-TP |
| MOQ: | 1pcs |
| Price: | US$30-60 |
| Packaging Details: | 1pcs/box, 10pcs/ctns |
| Payment Terms: | T/T,Paypal, L/C, D/A, D/P, Western Union, MoneyGram |

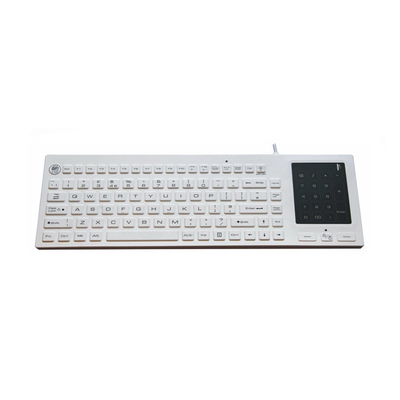

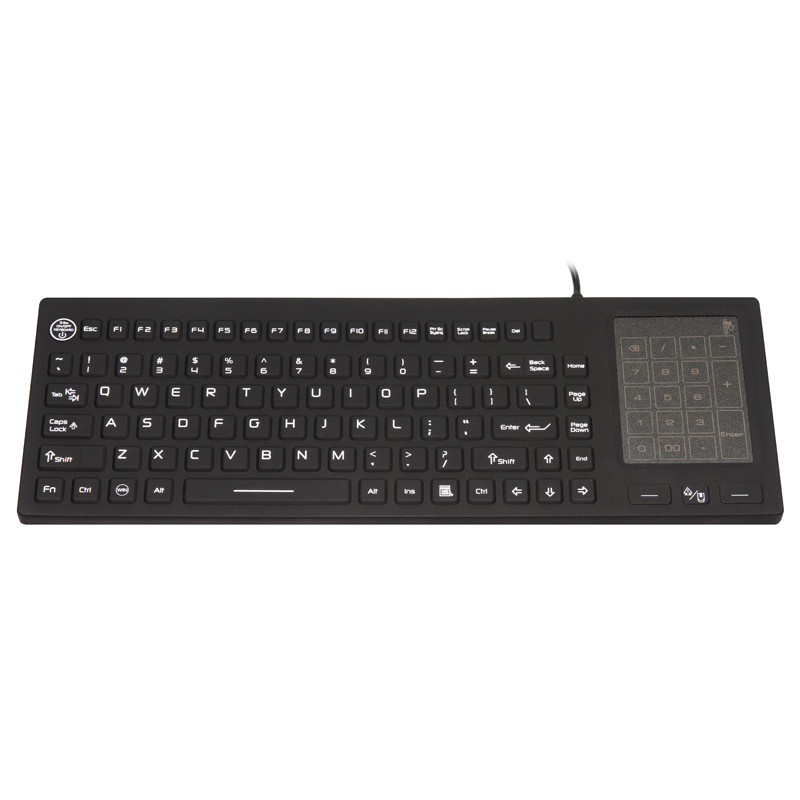

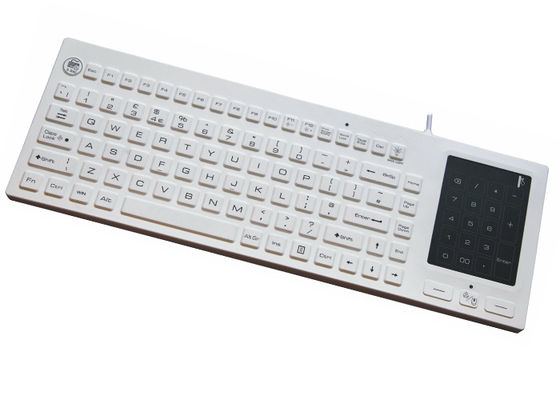

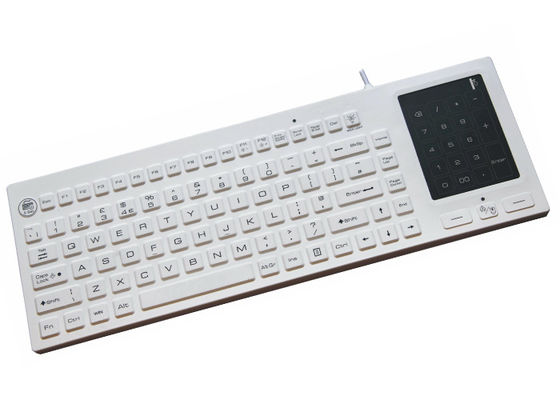

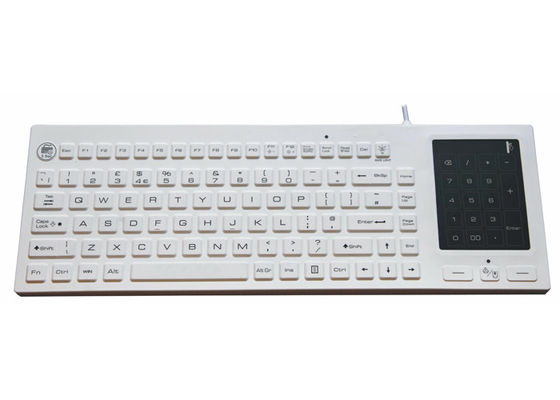

KINGLEADER’s SKB-85-TP,an 88-key silicone keyboard features a 2-in-1 touchpad and number pad(shifting through a specialty button).
Its keys can be locked and disabled through pressing the specially-designed “5-Sec ON/OFF” key before the keyboard is cleaned or washed.

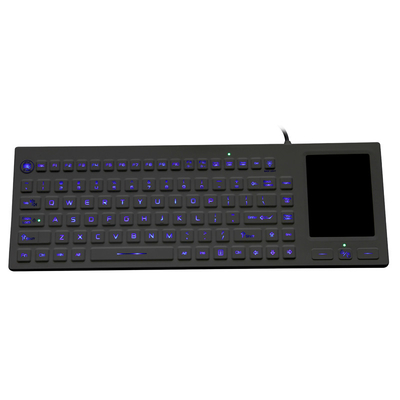

On its backlit version,the ON and OFF of backlight can be selected through pressing the “BACKLIGHT ON/OFF” key,moreover the brightness of backlight is adjustable.
Due to its unique design and build,it is rugged,virustatic,washable and can be disinfected with common disinfectant, it is an ideal input terminal used in industrial or medical environments.
|
Items
|
Specifications |
| Key Feature |
- 88 keys including 12 function keys - With integrated 2-in-1 touchpad and number pad((shifting through a specialty button) - 1.8m USB cable with ferrite - Backlit or Non-backlit version is available - Addition of antimicrobials into the material of keyboard to prevent reproduction of harmful bacterials like Coronavirus or COVID-19 virus - The “5-Sec ON/OFF” key is designed to lock down and disable all the keys before washing or cleaning - The “BACKLIGHT ON/OFF” key is designed to switch on or off the backlight(For backlit version) - Backlight is adjustable(For backlit version) - EMC Certified for electrical medical equipment - Used in harsh industrial,military environment OR other medical environments where harmful bacteria exists - Colors:Black or white or custom |
| Material | - Industrial and medical grade silicone |
| Electrical Data | - Power supply voltage: DC 5 V ± 5% - Current rating: <=100 mA - Interface: USB - EMC Emission:EN55022(B) |
| Environmental Characteristics | - Operating temperature: -20º C to + 65º C - Storage temperature: - 30º C to + 75º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Actuation force: 60-80 g - Key travel: 2.0mm - Lifetime (cycles): Min 10, 000, 000 actuations - Sealing protection: IP68 - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 |
| Compatible Operation System | - Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10/11,Linux |
| Reliability |
-MTBF:>20,000 hours -MTTR:<30 minutes |
| Certification |
-CE,FCC,RoHS,IP68,Anti-microbials test report -EMC: EN 60601-1-2:2015, EN 61000-3-2:2019, EN 61000-3-3:2013
|
| Dimension | -380(L) x 130(W) x 12(T) mm |
| Weight | -0.65 kgs |
| Packaging | -10pcs each carton measuring 43 x 32.5 x 20.5 cm,6.5kgs(net wt),7.0kgs(gross wt) per carton |
Our Services
* We’re a professional manufacturer for over 20 years.
* Experienced Technical Staffs and Patient, professional sales team.
* High quality assurance with competitive price
* OEM and ODM available.
* Any of your feedback will be responded within 12 hours
* Best after sales service to ensure satisfaction from customers.
How to order?
If you are interested in our products and want to place an order, firstly contact us by email,or contact with us online and we will send you our price list.
After that you can make a list of the products or just show the pictures that you are interested in and send it to usso that we can prepare the Proforma Invoice with freight cost and bank account for your checking.
After you received the Proforma Invoice you can arrange payment using Western Union or Bank Transfer or Paypal.
Once we receive your full payment we prepare your goods and ship them out in 3-5 working days.
And we need to know the following information of your order:
a) Shipping information - Contact Name, Company name, Detail address, Phone number, Fax number,
b) Product information - model numbers, quantity, pictures
c) Delivery time required
d) Freight payment (by collect or prepare),or if you have own forwarder, tell us their contact details
|
