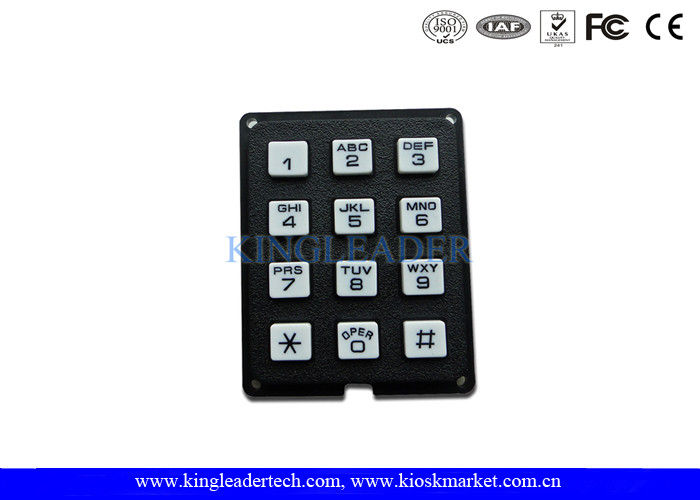

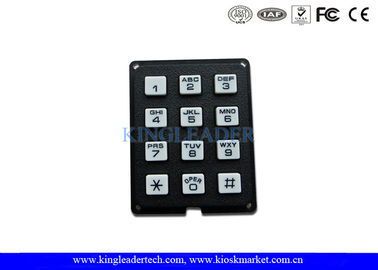

Rugged Plastic Industrial Numeric Keypad 12 Keys For Access Control System

  • Rugged Plastic Industrial Numeric Keypad 12 Keys For Access Control System
  • Rugged Plastic Industrial Numeric Keypad 12 Keys For Access Control System
  • Rugged Plastic Industrial Numeric Keypad 12 Keys For Access Control System
  • Rugged Plastic Industrial Numeric Keypad 12 Keys For Access Control System
  • Rugged Plastic Industrial Numeric Keypad 12 Keys For Access Control System
Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC
Model Number PKP64-12
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal
Supply Ability 2000pcs/month
Product Details
Material Rugged Plastic Number Of Keys 12
Matrix 3 X 4 Interface 8 Pin Connector
High Light

Rugged Plastic Industrial Numeric Keypad

,

12 Keys Industrial Numeric Keypad

,

Access Control Rugged Numeric Keypad
Leave a Message
Product Description



Rugged Plastic Industrial Numeric Keypad With 12 Keys , Ideal For Access Control System , Public Phone



Part Number:PKP64-12



Door access keypad

Key Features:

● 12 full travel  keys,all keys are in same size

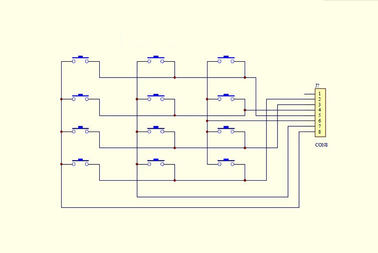

● Keys in 3 X 4 matrix

● Etch character

● Panel mount from the rear side

●Vandal-proof

● Layout customizable according to customer’s request

● Application:Door access control system or vending system or other application



Technical Specification

Material

Front panel & Keys

Plastic

Number of Keys

12

Matrix

3 x 4

Function

Backlight or Non backlight

Non Backlight

Electrical Data

Interface

8-pin

Certification

CE,FCC

Environmental Characteristics

Operating temperature

-20º C to + 60º C

Key travel

2.0mm

Lifetime (cycles)

Min 5, 000, 000 actuations

Sealing protection

IP65/NEMA4X from the front

Dimension

64.00 x 51.00 mm(W x D) (front panel)

Application

Door access control system or other application in dark or low-lit environment

Rugged Plastic Industrial Numeric Keypad 12 Keys For Access Control System 0
