Items	Specifications

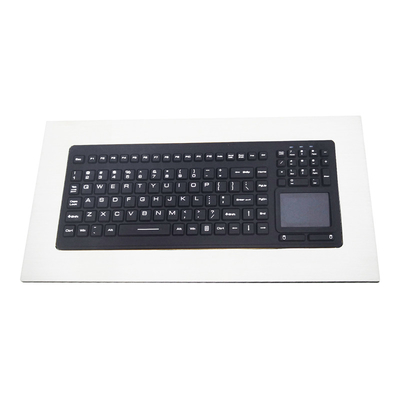

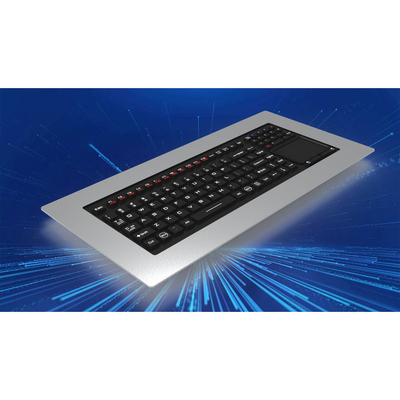

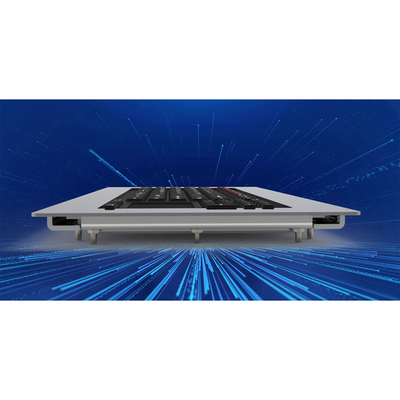

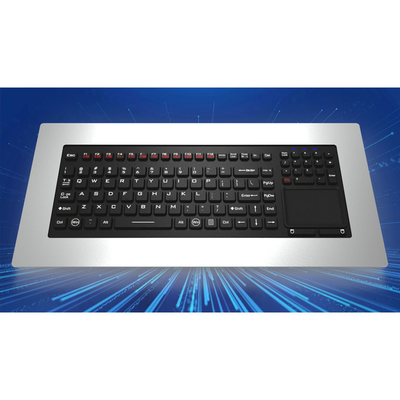

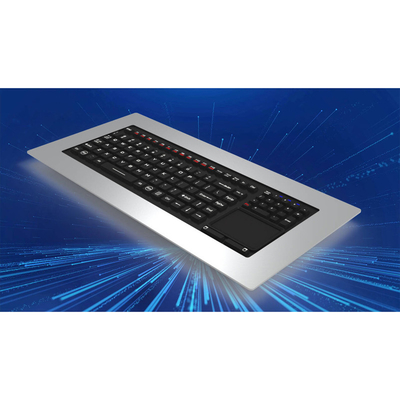

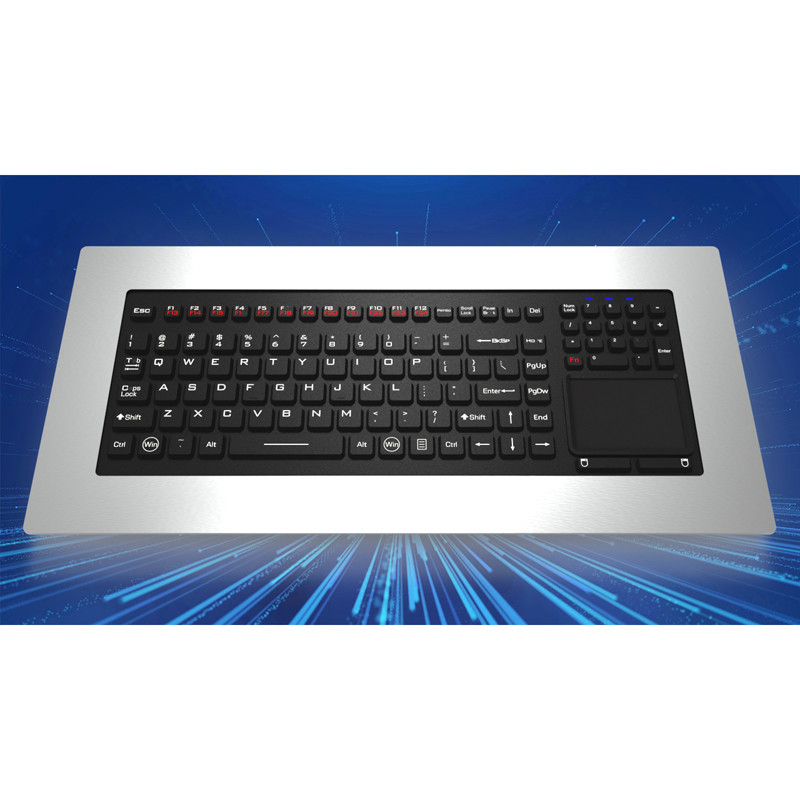

Key Feature	- Panelmount - 107 keys including 12 function&multimedia keys and numeric keys - Built-in touchpad - Addition of antimicrobials into silicone to prevent reproduction of harmful bacterials like Coronavirus or COVID-19 virus - EMC Certified for electrical medical equipment - Used in harsh industrial,military environment OR other medical environments where harmful bacteria exists - Colors of key membrane:Black or white or custom - Layout:US,UK,DE,FR or custom

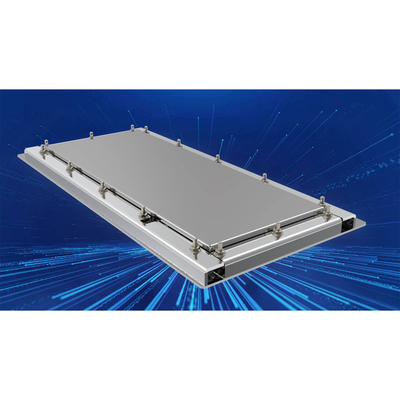

Material	- Front panel:SUS403 stainless steel - Bottom case:Electrolytic plate - Mounting brackets:Aluminum alloy - Membrane of keys:Industrial and medical grade silicone
Electrical Data	- Power supply voltage: DC 5 V ± 5% - Current rating: <=100 mA - Interface: USB or PS2 - EMC Emission:EN55022(B)
Environmental Characteristics	- Operating temperature: -20º C to + 60º C - Storage temperature: - 40º C to + 80º C - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at + 40º C: 21 days, IEC 60512-6 - Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data	- Actuation force: 90 ±15g - Key travel: 1.50mm ±0.5mm - Lifetime (cycles): Min 10, 000, 000 actuations - Sealing protection: IP68 - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
Compatible Operation System	- PS2: Win NT4, 98SE, 98ME, 2000, XP,Linux -USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10/11,Linux
Reliability	-MTBF:>20,000 hours -MTTR:<30 minutes
Certification	-CE,FCC,RoHS,IP68,Anti-microbial testing -EMC: EN 60601-1-2:2015, EN 61000-3-2:2019, EN 61000-3-3:2013

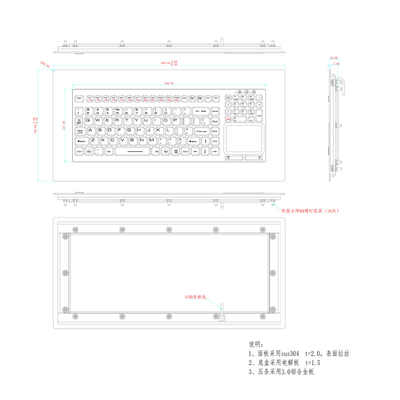

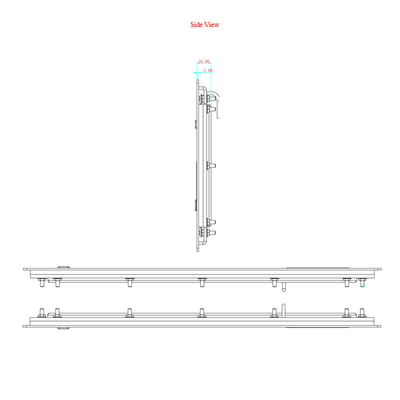

Dimension	-406.00(L) x 195.00(W) x 16.00(T) mm,see the drawing shown below
Weight	2.10 kgs
