Name: Backlit Desktop Rugged Waterproof Vandal-Proof Keyboard With Integrated Optical Trackball And Numeric Keypad
Brand: KINGLEADER Technology Company
SKU: MKB-FN103-TB-DT-BL
Price: 230.00 USD
Availability: InStock

Brand Name:	KINGLEADER
Model Number:	MKB-FN103-TB-DT-BL
MOQ:	1pcs
Price:	US$180-280
Packaging Details:	10pcs/ctn
Payment Terms:	L/C,T/T,Western Union,Paypal,D/A,D/P,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,FCC,RoHS

Document:

Specification Sheet(MKB-FN1...L).pdf

Style:

Desktop

Material Of Enclosure:

SUS 304 Stainless Steel

Material Of Keys:

Industrial Grade High Temp-resistant Polycarbonate OR Stainless Steel

Number Of Keys:

103 Backlit Keys Including F Keys And Numeric Keys

Number Of Function Keys:

Numeric Keypad:

Integrated Numeric Keys

Type Of Mouse:

Optical Trackball

Protection Level:

IP65 Up To IP68

Interface:

USB Or PS/2

Color Of Backlight:

White,red,green,blue Or Custom

Layout:

US,UK Or Custom

Certification:

FCC,CE,RoHS

Supply Ability:

3000pcs/month

Product Description

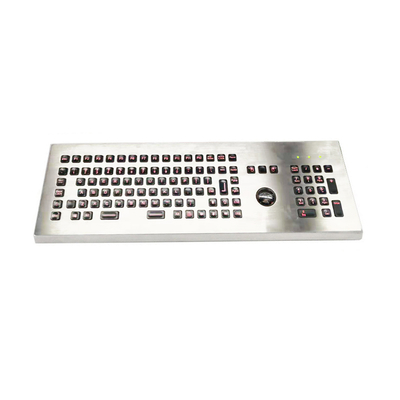

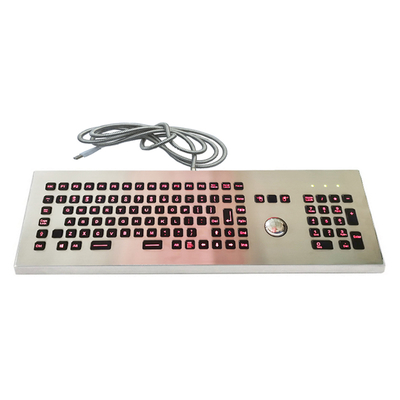

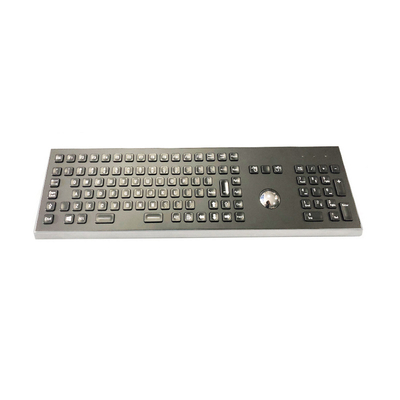

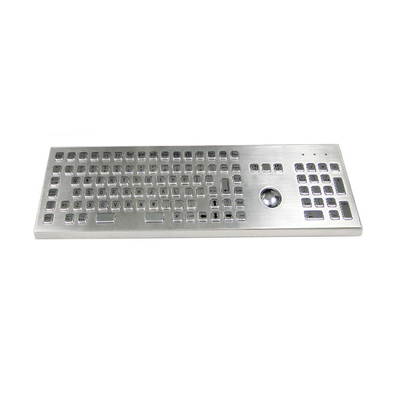

KINGLEADER’s MKB-FN103-TB-DT-BL

is a desktop rugged stainless steel keyboard with 103 backlit keys and built-in optical trackball.

Due to its unique design and build,it is rubust,rust-resistant,water & dust-proof and vandalproof,thus widely used in harsh and low-lit environments or unattended public facilities like factory workshop,water&gas factory, under -ground mine,unattended terminals etc.

Items	Specifications
Key Features	Desktop style,no mounting needed,enjoy the convenience of mobility 103 backlit keys including 12 function keys F1~F12 and numeric keypad Protruding full travel(2.0mm) keys,excellent tactile feedback Reinforced rugged tear-resistant cable Designed to operate in harsh environments High resistance against rust,corrosion and vandalism Sealed to meet IP65 up to IP68 rating PS/2 or USB interface for option Color of backlight:White,red,green or custom Customizable layout upon customer’s request Key option:Plastic or stainless steel
Material	Case: 304 stainless steel Keys: Industrial grade high temperature resistant polycarbonate,surviving high temp up to 140 degree C OR stainless steel
Electrical Data	Power supply voltage: DC 5 V ± 5% Current rating: 20 mA Interface: USB or PS2 EMC Emission:EN55022(B) Resolution of trackball:1000dpi
Environmental Characteristics	Operating temperature: -20º C to + 60º C Storage temperature: - 40º C to + 80º C Saline mist: 96 hours, IEC 60512-6 Damp heat test at + 40º C: 21 days, IEC 60512-6 Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data	Actuation force: 120±15g Key travel: 2.0mm Lifetime (cycles): Min 5, 000, 000 actuations Sealing protection: IP65/NEMA4X from the front Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 Diameter of trackball:38mm
Compatible Operation System	PS2: Win NT4, 98SE, 98ME, 2000, XP USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10/11,Linux
Reliability	MTBF:>20,000 hours MTTR:<30 minutes
Certification	FCC,CE,RoHS
Dimension	506.00 x 157.00 x 45.71mm(L x W x T)
Weight	2.50 kgs

Backlit Desktop Rugged Waterproof Vandal-Proof Keyboard With Integrated Optical Trackball And Numeric Keypad 0

Backlit Desktop Rugged Waterproof Vandal-Proof Keyboard With Integrated Optical Trackball And Numeric Keypad 2
