Key Feature	110 keys including 12 function keys and numeric keypad Adjustable brightness of backlight Backlight can be chosen ON or OFF by pressing the "Backlight" key All keys can be locked and disabled for cleaning by pressing the "5 Sec ON/OFF" key for 5 seconds Antimicrobial treatment to inhibit bacterial growth Designed for harsh industrial, military, and medical environments Custom color options available
Material	Silicone
Electrical Data	Power supply voltage: DC 5 V ± 5% Current rating: ≤100 mA Interface: USB or PS2 EMC Emission: EN55022(B)
Environmental Characteristics	Operating temperature: -20°C to +60°C Storage temperature: -30°C to +75°C Saline mist: 96 hours, IEC 60512-6 Damp heat test at +40°C: 21 days, IEC 60512-6 Dry heat test at +85°C: 10 days, IEC 60512-6
Mechanical Data	Actuation force: 60-80g Key travel: 2mm Lifetime: Min 10,000,000 actuations Sealing protection: IP68 Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
Compatible Operation System	PS2: Win NT4, 98SE, 98ME, 2000, XP USB: Win 98SE, 98ME, 2000, XP, Mac OS9/OSX, Win7/8.1/10
Reliability	MTBF: >20,000 hours MTTR: <30 minutes
Certification	FCC, CE, RoHs
Dimension	380.00(L) × 130.00(W) × 12.00(T) mm
Weight	0.7 kg

custom computer keyboard

industrial computer keyboards

mini computer keyboard

Products Details

Home > Products >

Industrial Computer Keyboard

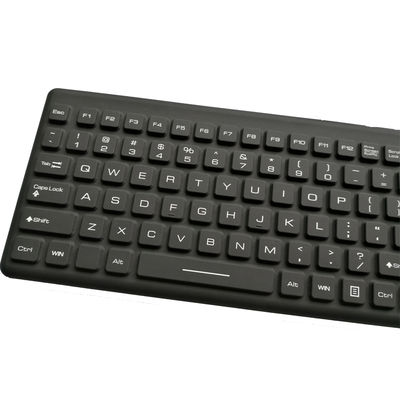

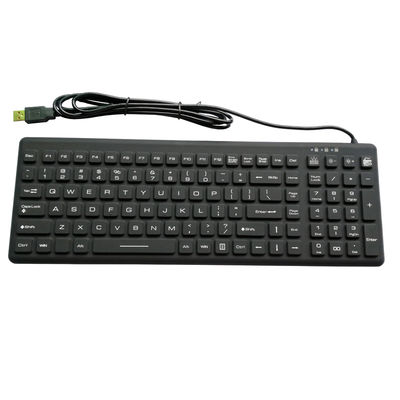

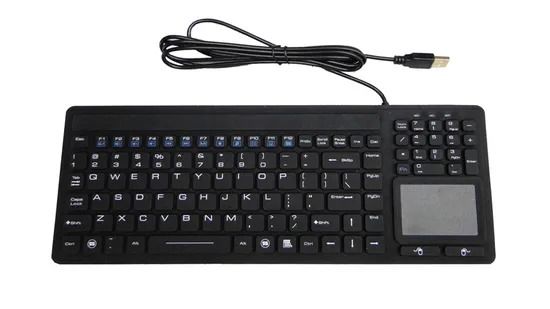

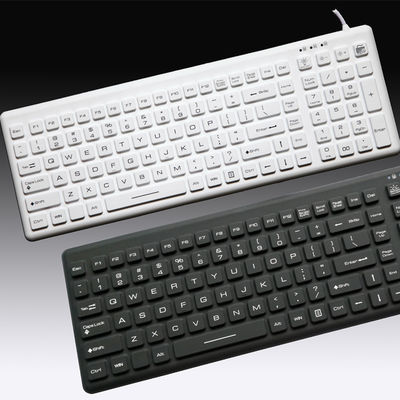

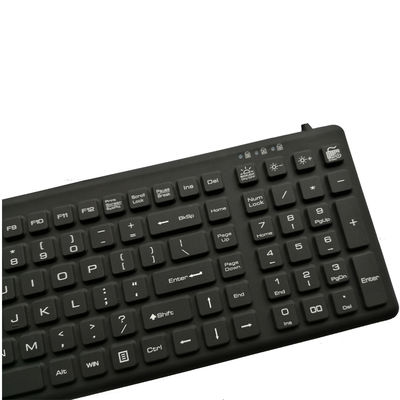

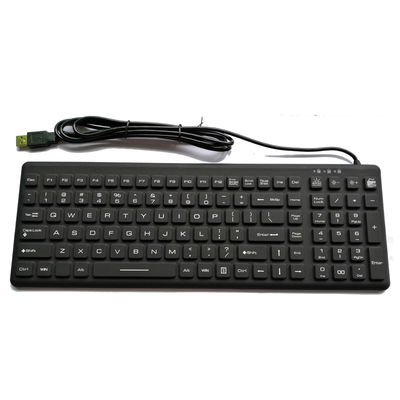

IP68 Waterproof Medical Keyboard with 110 Keys and Antimicrobial Silicone Rubber for Industrial and Medical Environments

All Category

Industrial Computer Keyboard

Industrial Keyboard With Trackball

Industrial Keyboard With Touchpad

Medical Keyboard

Medical Mouse

Wireless Silicone Keyboard

Industrial Numeric Keypad

Backlit Metal Keypad

Industrial Computer Mouse

Android Tablet Kiosk

Floor Standing Touch Screen Kiosk

Illuminated Metal Keyboard

Ipad Kiosk Stand

Panel Mount Keyboard

Industrial Desktop Keyboard

Waterproof Keyboard

Waterproof Mouse

Plastic Keyboard

Children Color Keyboard

Wall Mount Kiosk

Desktop Kiosk

Custom Kiosk Design

Digital Signage Kiosk

IP68 Waterproof Medical Keyboard with 110 Keys and Antimicrobial Silicone Rubber for Industrial and Medical Environments

MOQ:	1
Price:	30

Detail Information

Product Description

Detail Information

Certification:

CE, FCC, RoHS, IP68

Model NO.:

SKB-107-M

Back Panel Material:

Silicone Rubber

Sealing Protection:

IP68

Key Numbers:

110

Key Technology:

Silicone Rubber

Connection Type:

Wired

Interface:

USB Or PS2

Working Principle:

Membrane

Power Supply Voltage:

DC 5 V ± 5%

Current Rating:

<=100 MA

Operating Temperature:

-20º C To + 60º C

Actuation Force:

60-80g

Key Travel:

2mm

Lifetime Cycles:

Min 10,000,000 Actuations

Dimensions:

380.00(L) X 130.00(W) X 12.00(T) Mm

Minimum Order Quantity:

Price:

Highlight:

IP68 Waterproof Medical Keyboard

110 Keys Industrial Keyboard

Antimicrobial Silicone Rubber Keyboard

Product Description

Medical Keyboard IP68 Waterproof Keyboard with Optional Languages

Key Feature	110 keys including 12 function keys and numeric keypad Adjustable brightness of backlight Backlight can be chosen ON or OFF by pressing the "Backlight" key All keys can be locked and disabled for cleaning by pressing the "5 Sec ON/OFF" key for 5 seconds Antimicrobial treatment to inhibit bacterial growth Designed for harsh industrial, military, and medical environments Custom color options available
Material	Silicone
Electrical Data	Power supply voltage: DC 5 V ± 5% Current rating: ≤100 mA Interface: USB or PS2 EMC Emission: EN55022(B)
Environmental Characteristics	Operating temperature: -20°C to +60°C Storage temperature: -30°C to +75°C Saline mist: 96 hours, IEC 60512-6 Damp heat test at +40°C: 21 days, IEC 60512-6 Dry heat test at +85°C: 10 days, IEC 60512-6
Mechanical Data	Actuation force: 60-80g Key travel: 2mm Lifetime: Min 10,000,000 actuations Sealing protection: IP68 Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
Compatible Operation System	PS2: Win NT4, 98SE, 98ME, 2000, XP USB: Win 98SE, 98ME, 2000, XP, Mac OS9/OSX, Win7/8.1/10
Reliability	MTBF: >20,000 hours MTTR: <30 minutes
Certification	FCC, CE, RoHs
Dimension	380.00(L) × 130.00(W) × 12.00(T) mm
Weight	0.7 kg
