Waterproof Disinfectable Industrial Keyboard with 122 Keys and ISO9001:2008 Certification

MOQ:	1
Price:	40

Detail Information

Product Description

Detail Information

Certification:

CE, FCC, RoHS, IP68

Model NO.:

SKB-FN110-TP

Material:

Silicone

Sealing Protection:

IP68

Mouse Type:

Touchpad

Connection Type:

Wired

Interface:

USB Or PS2

Working Principle:

Membrane

Key Numbers:

122

Key Technology:

Rubber

Power Supply:

DC 5 V ± 5%

Current Rating:

<=100 MA

Operating Temperature:

-20º C To + 60º C

Actuation Force:

60-80g

Key Travel:

2mm

Lifetime:

Min 10,000,000 Actuations

Highlight:

Waterproof Industrial Keyboard

Disinfectable Computer Keyboard

122 Keys Rugged Keyboard

Product Description

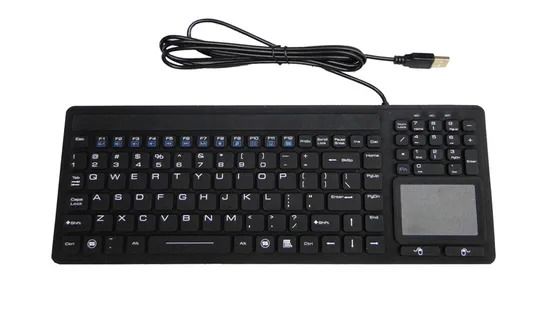

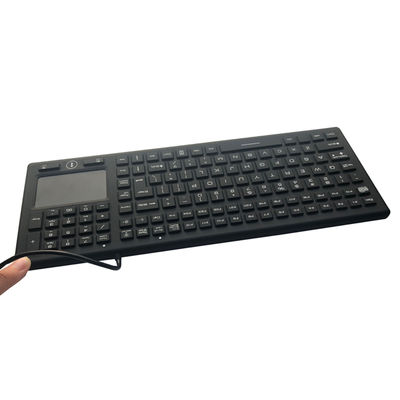

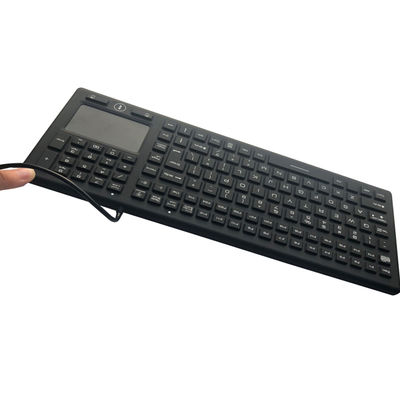

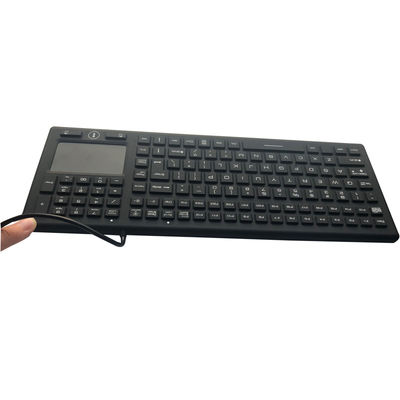

Waterproof Disinfectable Keyboard with Touchpad and Optional Backlit

PN: SKB-FN110-TP

Key Features

Integrated touchpad for convenient navigation
122 keys including 24 function keys and numeric keypad
Adjustable backlight brightness with ON/OFF toggle
Key lock function for easy cleaning (5-second hold)
Antimicrobial treatment inhibits bacterial growth
Designed for harsh industrial, military, and medical environments

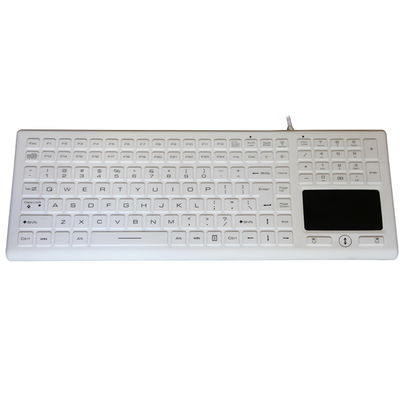

Custom color options available

Technical Specifications

Material	Silicone construction
Electrical Data	Power supply: DC 5 V ± 5% Current rating: ≤100 mA Interface: USB or PS2 EMC Emission: EN55022(B)
Environmental Characteristics	Operating temperature: -20°C to +60°C Storage temperature: -30°C to +75°C Saline mist resistance: 96 hours (IEC 60512-6) Damp heat test at +40°C: 21 days (IEC 60512-6) Dry heat test at +85°C: 10 days (IEC 60512-6)
Mechanical Data	Actuation force: 60-80g Key travel: 2mm Lifetime: Minimum 10,000,000 actuations Sealing protection: IP68 rated Vibration resistance: 5 Hz -200 Hz (IEC 60512-4) Shock resistance: 3 axis 150 m/s² -11 ms (IEC 60512-4)
Compatible Operating Systems	PS2: Win NT4, 98SE, 98ME, 2000, XP USB: Win 98SE, 98ME, 2000, XP, Mac OS9/OSX, Win7/8.1/10
Reliability	MTBF: >20,000 hours MTTR: <30 minutes
Certifications	FCC, CE, RoHs compliant
Dimensions	365.00(L) × 136.00(W) × 12.00(T) mm
Weight	0.65 kg

Manufacturer Information

KINGLEADER is an ISO9001:2008 certified manufacturer specializing in the research, development, production, and sale of rugged input devices including keyboards, keypads, trackballs, touchpads, and touchscreen kiosks.

We also offer comprehensive OEM/ODM services, plastic mold building, and injection molding solutions.

Why Choose KINGLEADER?

ISO9001:2008 certified quality management
Audited by SGS, TÜV Rheinland, and Bureau Veritas
Competitive pricing with rapid response times
10+ years experience in rugged input devices
Full OEM/ODM capabilities
Flexible customization and order quantities
Trusted supplier to world-class brands
