Material	Silicone rubber
Electrical Data	Power supply: DC 5V ±5% Current rating: ≤100 mA Interface: USB1.1, PS/2 or USB+PS/2 EMC Emission: EN55022(B)
Environmental Characteristics	Operating temperature: -20°C to +65°C Storage temperature: -30°C to +75°C Saline mist resistance: 96 hours (IEC 60512-6) Damp heat test at +40°C: 21 days Dry heat test at +85°C: 10 days
Mechanical Data	Key actuation force: 60-80g Key travel distance: 2.0mm Key lifespan: >10 million actuations Vibration resistance: 5Hz-200Hz (IEC 60512-4) Shock resistance: 3 axis 150 m/s² -11 ms
Compatibility	PS/2: Windows NT4, 98SE, 98ME, 2000, XP USB: Windows 98SE to 10, Mac OS9/OSX
Reliability	MTBF: >20,000 hours MTTR: <30 minutes
Certifications	FCC, CE, RoHS
Dimensions	380(L) × 130(W) × 12(T) mm
Weight	0.65 kg
Packaging	10pcs/carton (43×32.5×20.5 cm), 6.5kg net, 7.0kg gross

Tags:

custom computer keyboard

industrial computer keyboards

mini computer keyboard

Products Details

Home > Products >

Industrial Computer Keyboard

Medical Grade Silicone Keyboard with 88 Keys Integrated Touchpad and Adjustable Backlight

All Category

Industrial Computer Keyboard

Industrial Keyboard With Trackball

Industrial Keyboard With Touchpad

Medical Keyboard

Medical Mouse

Wireless Silicone Keyboard

Industrial Numeric Keypad

Backlit Metal Keypad

Industrial Computer Mouse

Android Tablet Kiosk

Floor Standing Touch Screen Kiosk

Illuminated Metal Keyboard

Ipad Kiosk Stand

Panel Mount Keyboard

Industrial Desktop Keyboard

Waterproof Keyboard

Waterproof Mouse

Plastic Keyboard

Children Color Keyboard

Wall Mount Kiosk

Desktop Kiosk

Custom Kiosk Design

Digital Signage Kiosk

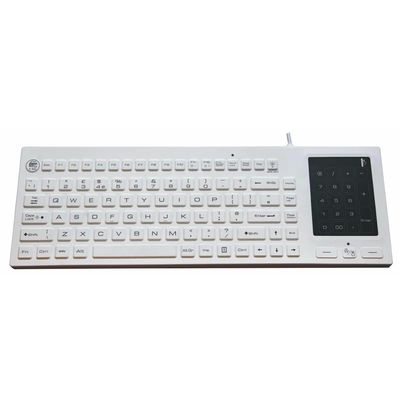

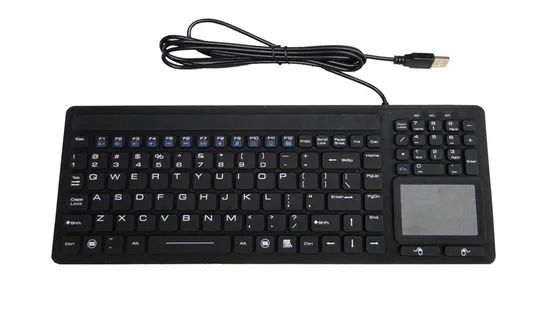

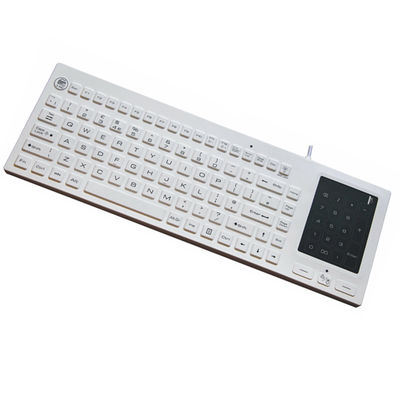

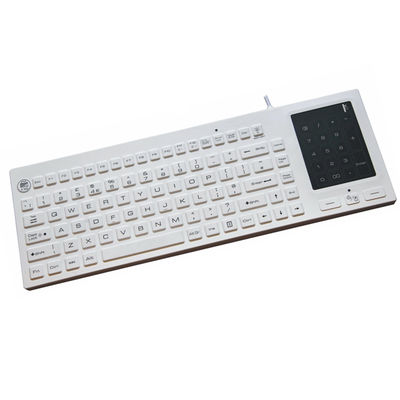

Medical Grade Silicone Keyboard with 88 Keys Integrated Touchpad and Adjustable Backlight

MOQ:	1
Price:	10

Detail Information

Product Description

Detail Information

Certification:

CE, FCC, RoHS, IP68

Model NO.:

SKB-85-TP

Front Panel Material:

Silicone Rubber

Back Panel Material:

Silicone Rubber

Sealing Protection:

IP68

Interface:

USB

Working Principle:

Conductive Rubber

Key Numbers:

Key Actuation Force:

60-80g

Key Travel Distance:

2.0mm

Key Lifespan:

>10 Millions Actuations

Rated Voltage:

+5V DC

Operating Temperature:

-20ºC~+65ºC

Storage Temperature:

-30ºC~+75ºC

Net Weight:

0.65 Kgs

Dimensions:

380(L) X 130(W) X 12(T) Mm

Minimum Order Quantity:

Price:

Highlight:

88 Keys Medical Keyboard

Integrated Touchpad Silicone Keyboard

Adjustable Backlight Industrial Keyboard

Product Description

Antibacterial Medical Keyboard with Optional Layouts

Waterproof Silicone Keyboard with All-in-one Number Pad and Touchpad

Typical Applications

Designed for use in low-lit, harsh industrial, military, and medical environments where harmful bacteria may be present.

Key Features

Integrated 2-in-1 touchpad and number pad
88 keys including 12 function keys
Adjustable backlight brightness with ON/OFF control
Key lock function for easy cleaning (5-second hold)
Antimicrobial treatment to inhibit bacterial growth
Custom color options available
IP68 completely sealed protection

Material	Silicone rubber
Electrical Data	Power supply: DC 5V ±5% Current rating: ≤100 mA Interface: USB1.1, PS/2 or USB+PS/2 EMC Emission: EN55022(B)
Environmental Characteristics	Operating temperature: -20°C to +65°C Storage temperature: -30°C to +75°C Saline mist resistance: 96 hours (IEC 60512-6) Damp heat test at +40°C: 21 days Dry heat test at +85°C: 10 days
Mechanical Data	Key actuation force: 60-80g Key travel distance: 2.0mm Key lifespan: >10 million actuations Vibration resistance: 5Hz-200Hz (IEC 60512-4) Shock resistance: 3 axis 150 m/s² -11 ms
Compatibility	PS/2: Windows NT4, 98SE, 98ME, 2000, XP USB: Windows 98SE to 10, Mac OS9/OSX
Reliability	MTBF: >20,000 hours MTTR: <30 minutes
Certifications	FCC, CE, RoHS
Dimensions	380(L) × 130(W) × 12(T) mm
Weight	0.65 kg
Packaging	10pcs/carton (43×32.5×20.5 cm), 6.5kg net, 7.0kg gross
