Rear Panel Mount Led Illuminated Metal Keypad for Industrial Machines

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC
Model Number MKP100-16BL
Minimum Order Quantity 1pcs
Price US$1-99
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal
Supply Ability 2000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Of Front Panel Stainless Steel Material Of Back Panel Aluminum Alloy
Material Of Keycap PC Number Of Keys 16 Led Illuminated Backlight Keys
Interface USB Or PS/2 Or RS232 Layout Customization Available
High Light

back lit keyboard

,

custom keyboard

Leave a Message
Product Description

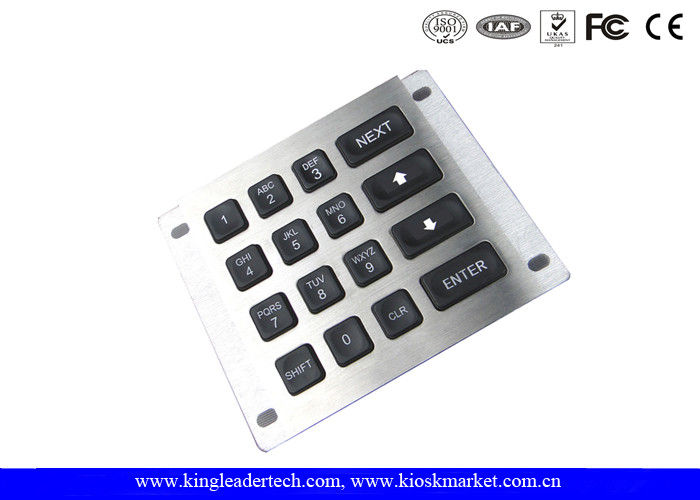

Rear Panel Mount Led Illuminated Metal Keypad for Industrial Machines


PN: MKP100-16BL
Rugged, water-proof, vandal-proof keypad with 16 back-lit keys, ideal for indoor or outdoor access control system or other low-lit or dark environments


Key Features:
● 16 back-lit keys,4 larger keys at the right column
● Keys in 4 X 4 matrix
● Laser-etched characters
● Panel mount from the rear side
● Concave on the key top to suit fingertip
● Robust build against vandalism
● Dust-proof and liquid-proof, IP65 compliance after properly mounted
● Layout customizable according to customer’s request
● Application: access control system or other application in dark or low-lit environment

Technical Specification

Material

Front panel

304 stainless steel

Keys

High Temperature Polycarbonate

Back panel

Aluminum

Number of Keys

16

Matrix

4 x 4

Function

Backlight or Non backlight

LED backlight illuminated

Color of backlight

Red,Green or Blue

Electrical Data

Interface

USB or PS/2 or RS232 (With electronic controller board)
11PIN connector (Without electronic controller board)

Certification

CE,FCC

Environmental Characteristics

Operating temperature

-20º C to + 60º C

Key travel

2.0mm

Lifetime (cycles)

Min 5, 000, 000 actuations

Sealing protection

IP65/NEMA4X from the front

Layout

Customizable available

Dimension

100.00 x 100.00 mm(W x D) (front panel)

Application

Door access control system or other application in dark or low-lit environment



Pictures:

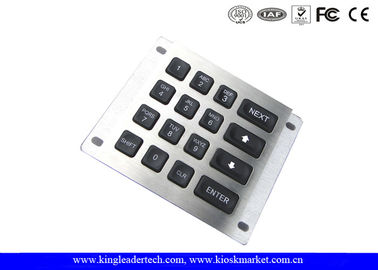

Rear Panel Mount Led Illuminated Metal Keypad for Industrial Machines 0

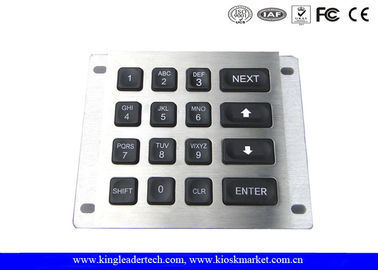

Rear Panel Mount Led Illuminated Metal Keypad for Industrial Machines 1
