Numeric Illuminated Backlit Metal Keypad 16 Keys for Security Access Control System

China Numeric Illuminated Backlit Metal Keypad 16 Keys for Security Access Control System supplier
Numeric Illuminated Backlit Metal Keypad 16 Keys for Security Access Control System supplier Numeric Illuminated Backlit Metal Keypad 16 Keys for Security Access Control System supplier Numeric Illuminated Backlit Metal Keypad 16 Keys for Security Access Control System supplier

Large Image :  Numeric Illuminated Backlit Metal Keypad 16 Keys for Security Access Control System

Product Details:

Place of Origin: China
Brand Name: KINGLEADER
Certification: CE,FCC
Model Number: MKP120-16BL

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: US$
Packaging Details: 1pcs/box, 10pcs/ctns
Delivery Time: 20days
Payment Terms: T/T,Paypal
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
Number Of Keys: 16 Material Of Front Panel: Stainless Steel
Material Of Keys: Stainless Steel Mounting Method: Panel Mounting From The Rear Side
Keys: Led Backlighting Protection Level: IP65

Numeric Illuminated Backlit Metal Keypad 16 Keys for Security Access Control System







MKP120-16BL

This keypad is specially designed for Security/access control system or other application in dark or low-light environment, it has 16 individually LED lit keys, featuring vandal-proof, water-proof and dust-proof



Key Features:



1) 16 full travel and back-lit keys

 2) Keys in 4 X 4 matrix

 3) Stamped characters

 4) Panel mount from the front side

 5) Exposed parts(front panel and keys) made of stainless steel,high resistance against destruction,rust etc

 6) Dust-proof and liquid-proof, IP65 compliance after properly mounted

 7) Layout customizable according to customer’s request

 8) Application:access control system,vending machine,public phone or other application in dark or low-lit

environment



Technical Specification

Material

Front panel

304 stainless steel

Keys

304 stainless steel

Back panel

Aluminum

Number of Keys

16

Matrix

4 x 4

Function

Backlight or Non backlight

LED backlight illuminated

Color of backlight

Red,Green or Blue

Electrical Data

Interface

USB or PS/2 or RS232 (With electronic controller board)

11PIN connector (Without electronic controller board)

Certification

CE,FCC

Environmental Characteristics

Operating temperature

-20º C to + 60º C

Key travel

2.0mm

Lifetime (cycles)

Min 5, 000, 000 actuations

Sealing protection

IP65/NEMA4X from the front

Layout

Customizable available

Dimension

120.00 x 110.00 mm(W x D) (front panel)

Application

access control system, vending machine, public phone or other application in dark or low-lit environment

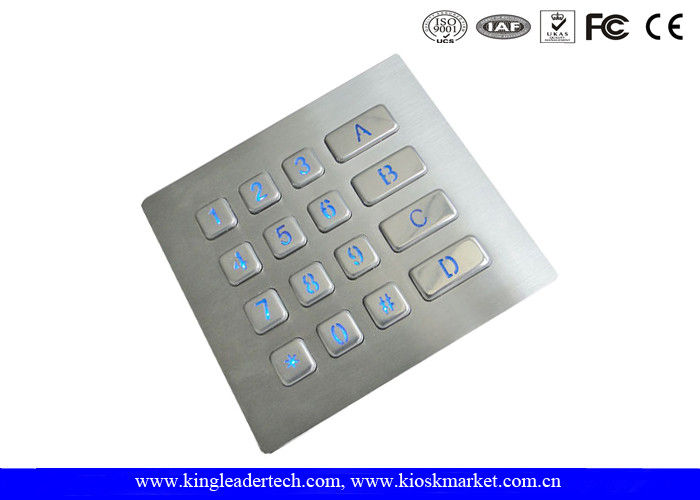

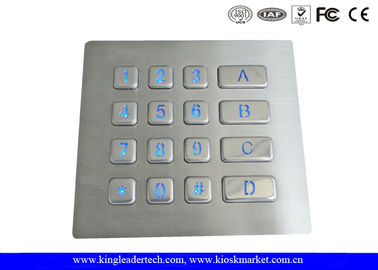

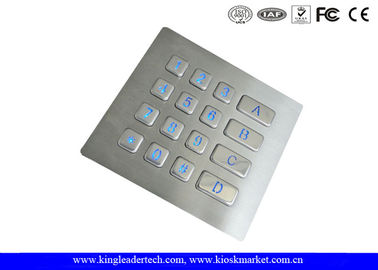

Pictures:



Numeric Illuminated Backlit Metal Keypad 16 Keys for Security Access Control System

Numeric Illuminated Backlit Metal Keypad 16 Keys for Security Access Control System
