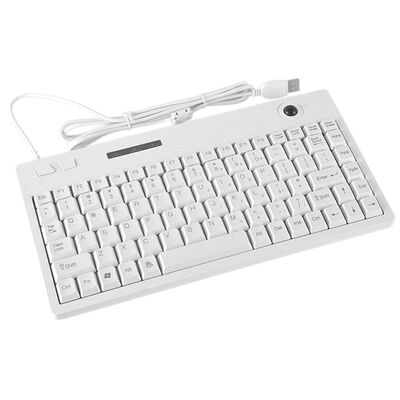

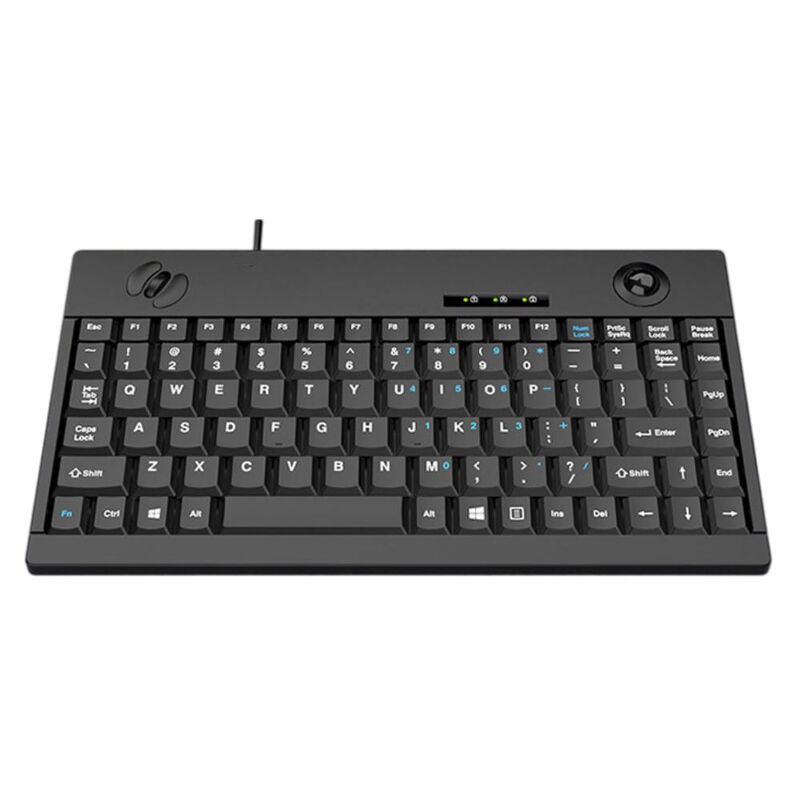

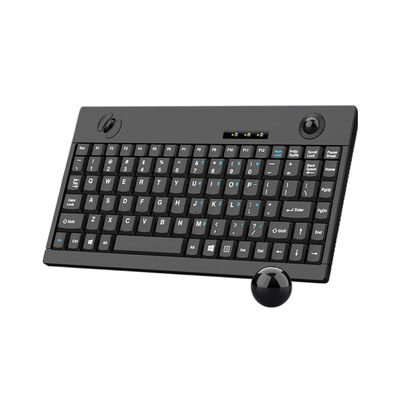

Name: Super Compact Waterproof IP65 Industrial Plastic Keyboard with 88 Keys and Mini Trackball for Harsh Environments
Brand: KINGLEADER Technology Company
SKU: PKB-88-TB-1
Price: 40.00 USD
Availability: InStock

Brand Name:	Neutral or Custom
Model Number:	PKB-88-TB-1
MOQ:	1pcs
Price:	US$35-45/pc Exworks
Packaging Details:	1pcs/box, 10pcs/ctns
Payment Terms:	T/T,Paypal,Western Union,D/A,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,FCC,RoHS

Document:

Specification sheet(PKB-88-...1).pdf

Material:

Industrial-grade ABS/PC

Number Of Keys:

88 Keys

Interface:

USB Or PS/2

Key Travel:

1.5 +/-0.3mm

Diameter Of Trackball:

15mm

Cable Length:

1.2m Or 1.5m With Ferrite

Weight:

0.38kgs

Supply Ability:

5000pcs/month

Product Description

Compact Waterproof IP65 Industrial Plastic Keyboard with 88 Keys and Mini Trackball for Harsh Environments

The Kingleader PKB-88-TB-1 is a compact 88-key industrial keyboard with an integrated mini trackball, delivering efficient and convenient operation. Adopting a notebook-style keyboard structure, it offers a comfortable typing experience and remains easy to use even during long hours of input.

Constructed from industrial-grade ABS material, this keyboard ensures sturdiness and durability with excellent impact resistance and wear resistance. Its unique structural design enables stable and reliable performance even in harsh environments, making it widely suitable for industrial scenarios such as manufacturing and mining.

Whether under complex working conditions or high-intensity operations, the PKB-88-TB-1 provides stable input and precise control, making it an ideal choice for industrial applications.

Key Features

This compact keyboard is built with laptop-style key technology, embracing both the typing comfort of laptop keyboards and the ruggedness of industrial keyboards
Small foot-print thus save space
88 keys
Integrated with mini trackball(15mm)
3 buttons(L&R,Scroll) for the trackball
LED Indicators:Num Lock,Caps Lock,Scroll
Interface:USB or PS/2
Silkscreen-print key legend
Resistant against splashed liquid
Cable:1.2 or 1.5M long with ferrite
Color available:Black and white
Application: Industrial workplaces like manufacturing, mining, etc.

Technical Specifications

Material	-PC/ABS for the case and keys
Electrical Data	- Power supply voltage: DC 5 V ± 5% - Current rating: <=100 mA - Interface: USB or PS2 - EMC Emission:EN55022(B) - Resolution of trackball:1000dpi
Environmental Characteristics	Operating temperature: -20°C to +60°C Storage temperature: -40°C to +80°C Saline mist: 96 hours, IEC 60512-6 Damp heat test at +40°C: 21 days, IEC 60512-6 Dry heat test at +85°C: 10 days, IEC 60512-6
Mechanical Data	Actuation force: 50 ±10g Key travel: 1.5mm ±0.3mm Lifetime: Min 10,000,000 actuations Sealing protection: IP65/NEMA4X from the front Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4
Compatible Operating Systems	PS2: Win NT4, 98SE, 98ME, 2000, XP USB: Win 98SE, 98ME, 2000, XP, Mac OS9/OSX, Win7/8.1/10/11, Linux
Reliability	MTBF: >20,000 hours MTTR: <30 minutes
Dimensions	-295.00 x 162.00 x 28.50mm(including the trackball)(L x W x T)
Weight	0.38 kg

Super Compact Waterproof IP65 Industrial Plastic Keyboard with 88 Keys and Mini Trackball for Harsh Environments
