Backlit Vandal Proof Metal Keypad With 14 Keys For Door Access System
|Place of Origin||China|
|Minimum Order Quantity||1|
|Packaging Details||One piece packed in a box,then suitable number of boxes packed in a master box|
|Delivery Time||1-2 weeks|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Material Of Front Panel||Stainless Steel||Material Of Keycap||Stainless Steel|
|Number Of Keys||14 Led Backlighting||Layout||Standard Or Customized|
|Protection Level||IP65||Color Of Backlight||Blue Or Other Request|

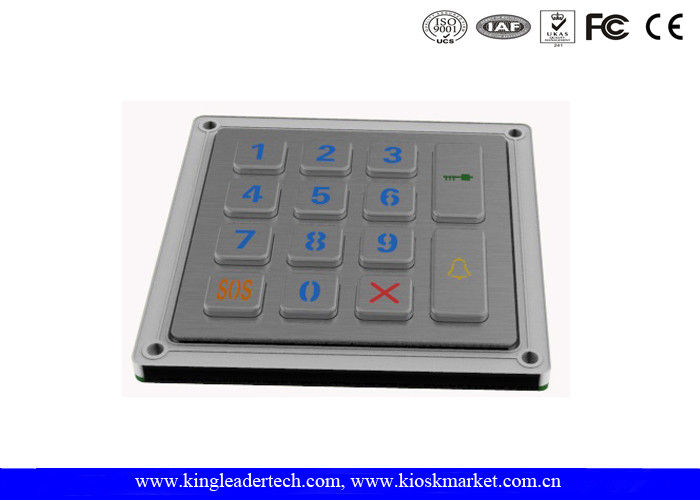

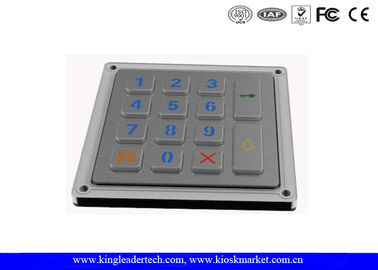

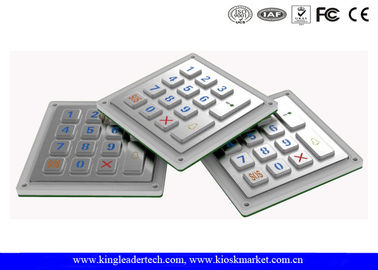

Backlit Vandal Proof Metal Keypad With 14 Keys For Smart Door Access System
Part Number: MKP81-14BL
● 14 full travel and back-lit keys
● Keys in 4 X 4 matrix
● Stamped characters
● Panel mount from the rear side
● Exposed parts(front panel and keys) made of stainless steel,high resistance against destruction,rust etc
● Dust-proof and liquid-proof, IP65 compliance after properly mounted
● Layout customizable according to customer’s request
● Application:access control system or other application in dark or low-lit environment
Material: Front panel and keys:stainless steel;
Life cycle: >5 million operations
Key travel: 2.0mm
Actuation force: 80±15g
Interface: 11- PIN connector (Without Electronic Controller Board)
USB or PS/2 or RS232 (With Electronic Controller Board)
Working temperature: -20℃~60℃
Storage temperature: -40℃~80℃
Relative humility: 20~95%
Atmospheric pressure: 50-110 K Pa
Dimension: 81.00 x 81.00 mm(W x D) (front panel)
