Smart Door Access Keypad Backlit Metal Keypad 15 Keys In 4 X 4 Matrix

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC
Model Number MKP81-15
Minimum Order Quantity 1
Price US$
Packaging Details One piece packed in a box,then suitable number of boxes packed in a master box
Delivery Time 1-2 weeks
Payment Terms T/T, Western Union, PayPal
Supply Ability 3000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Of Front Panel Stainless Steel Number Of Keys 15 Full Travel Keys
Layout Standard Or Customized Color Of Backlight Blue Or Other Request
Material Of Keycap Stainless Steel Protection Level IP65
High Light

back lit keyboard

,

custom keyboard

Leave a Message
Product Description

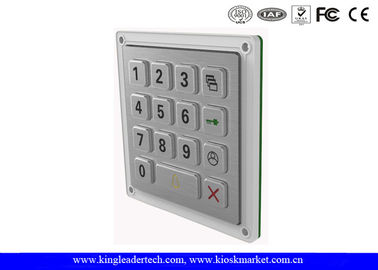

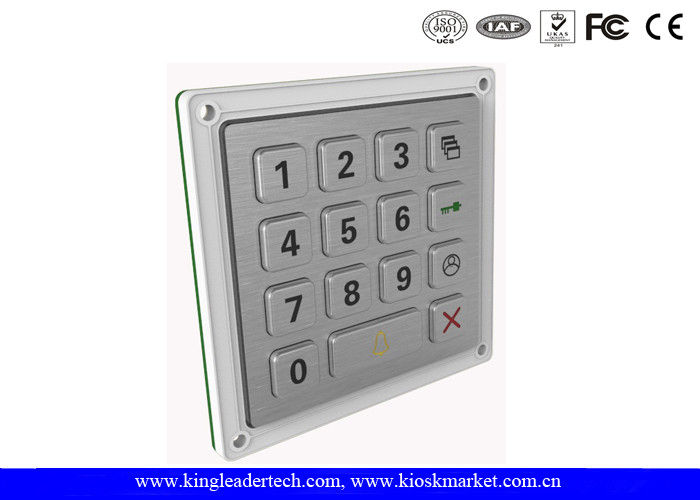

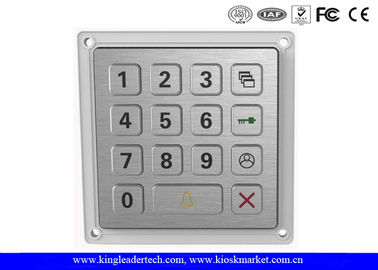

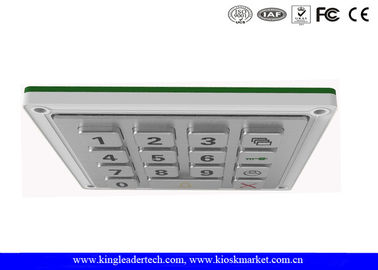

Smart Door Access Keypad Backlit Metal Keypad 15 Keys In 4 X 4 Matrix



Part Number:MKP81-15





Key Features:



● 15 full travel keys

● Keys in 4 X 4 matrix

● Stamped characters

● Panel mount from the rear side

● Exposed parts(front panel and keys) made of stainless steel,high resistance against destruction,rust etc

● Dust-proof and liquid-proof, IP65 compliance after properly mounted

● Layout customizable according to customer’s request

● Application:Door bell, smart home system, and other access control system.



Specifications:



Material: Front panel and keys:stainless steel;
Life cycle: >5 million operations

Key travel: 2.0mm

Actuation force: 120±15g

Interface:   8- PIN connector (Without Electronic Controller Board)

USB or PS/2 or RS232 (With Electronic Controller Board)

Working temperature: -20℃~60℃

Storage temperature: -40℃~80℃

Relative humility: 20~95%

Atmospheric pressure: 50-110 K Pa

Dimension: 81.00 x 81.00 mm(W x D) (front panel)



Smart Door Access Keypad Backlit Metal Keypad 15 Keys In 4 X 4 Matrix 0
