Rugged Waterproof Vandalproof Backlit Metal Keypad Stainless Steel Keypad

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC
Model Number MKP100D-A16BL
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal
Supply Ability 3000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Of Front Panel Stainless Steel Function With Backlight
Number Of Keys 16 Long Travel Keys Matrix 4x4
Interface USB Or PS/2 Or RS232 Or 11Pin Connector Layout Customization Available
Highlight

back lit keyboard

,

custom keyboard

Leave a Message
Product Description

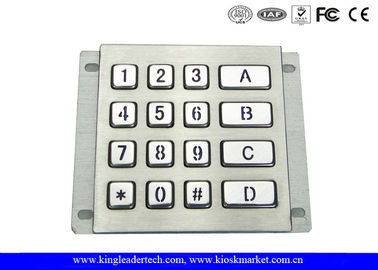

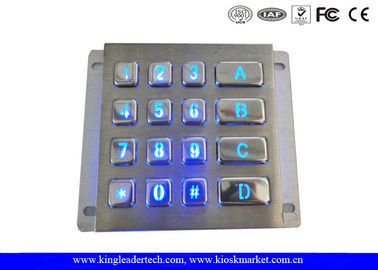

Rugged Waterproof Vandalproof Backlit Metal Keypad Stainless Steel Keypad







PN:MKP100D-A16BL



Key Features:



● 16 keys,4 larger keys at the right column

● Backlit Keys in 4 X 4 matrix

● Laser-etched characters

● Panel mount from the rear side

● Concave on the key top to suit fingertip

● Robust build against vandalism

● Dust-proof and liquid-proof, IP65 compliance after properly mounted

● Layout customizable according to customer’s request

● Application:access control system, access system.





Technical Specification

Material

Front panel & Keys

304 stainless steel

Back panel

304 stainless steel

Number of Keys

16

Matrix

4 x 4

Function

Non backlight

Electrical Data

Interface

USB or PS/2 or RS232(With electronic controller board)

8PIN connector (Without electronic controller board)

Certification

CE,FCC

Environmental Characteristics

Operating temperature

-20º C to + 60º C

Key travel

2.0mm

Lifetime (cycles)

Min 5, 000, 000 actuations

Sealing protection

IP65/NEMA4X from the front

Layout

Customizable available

Dimension

100.00 x 100.00 mm (W x D) (front panel)

Application

access control system or other application in harsh environment



Pictures Showing:





Rugged Waterproof Vandalproof Backlit Metal Keypad Stainless Steel Keypad 0
