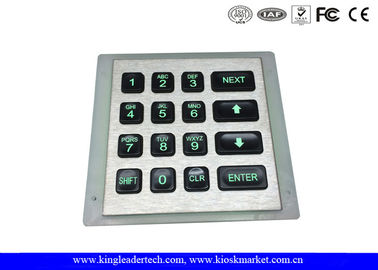

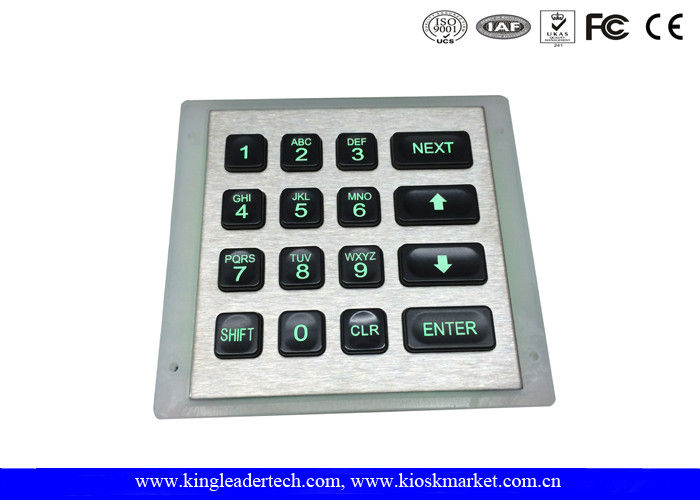

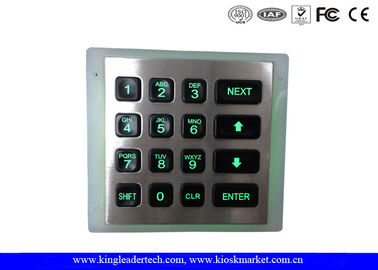

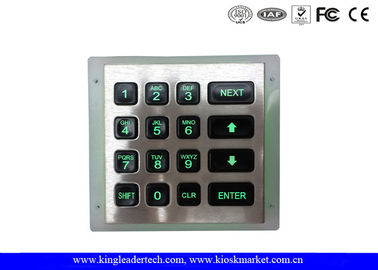

IP 65 Access Control Keypad With Green Backlight , 16 Key Keypad

IP 65 Access Control Keypad With Green Backlight , 16 Key Keypad
IP 65 Access Control Keypad With Green Backlight , 16 Key Keypad IP 65 Access Control Keypad With Green Backlight , 16 Key Keypad IP 65 Access Control Keypad With Green Backlight , 16 Key Keypad IP 65 Access Control Keypad With Green Backlight , 16 Key Keypad

Large Image :  IP 65 Access Control Keypad With Green Backlight , 16 Key Keypad Get Best Price

Product Details:
Place of Origin: China
Certification: CE,FCC
Model Number: MKP100-16BL
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: US$1-99
Packaging Details: 1pcs/box, 10pcs/ctns
Delivery Time: 20days
Payment Terms: T/T,Paypal
Supply Ability: 2000pcs/month
Detailed Product Description
Material Of Front Panel: Stainless Steel Material Of Back Panel: Aluminum Alloy
Material Of Keycap: PC Number Of Keys: 16 Led Illuminated Backlight Keys
Interface: USB Or PS/2 Or RS232 Layout: Customization Available
High Light:

back lit keyboard


custom keyboard


IP 65 Access Control Keypad With Green Backlight , 16 Key Keypad
PN: MKP100-16BL
Rugged, water-proof, vandal-proof keypad with 16 back-lit keys, ideal for indoor or outdoor access control system or other low-lit or dark environments
Key Features:
● 16 back-lit keys,4 larger keys at the right column
● Keys in 4 X 4 matrix
● Laser-etched characters
● Panel mount from the rear side
● Concave on the key top to suit fingertip
● Robust build against vandalism
● Dust-proof and liquid-proof, IP65 compliance after properly mounted
● Layout customizable according to customer’s request

● Silicone membrane extends beneath the front panel way to the edge of the back panel, so the
membrane also functions as a sealing gasket,no additional gasket will be needed when
installed,therefore this design can better prevent water from seeping into the PCB than other
conventional design (where the rubber is the same size as the front panel),this enhancement makes it
an ideal choice for outdoor application.
● Application: access control system or other application in dark or low-lit environment.


Technical Specification


Front panel

304 stainless steel


High Temperature Polycarbonate

Back panel


Number of Keys



4 x 4


Backlight or Non backlight

LED backlight illuminated

Color of backlight

Red,Green or Blue

Electrical Data


USB or PS/2 or RS232 (With electronic controller board)
11PIN connector (Without electronic controller board)



Environmental Characteristics

Operating temperature

-20º C to + 60º C

Key travel


Lifetime (cycles)

Min 5, 000, 000 actuations

Sealing protection

IP65/NEMA4X from the front


Customizable available


100.00 x 100.00 mm(W x D) (front panel)


Door access control system or other application in dark or low-lit environment




1. Q: How could I get samples?
   A: I f you need to order sample for checking-up,we would like to ask you to pay   for the samples and courier freight.We send the samples to you only after receipt of your payment.if you have an courier account,you can send your courier to collect samples from our company or send us the samples charge together with the courier cost.

2. Q: How much the Courier freight will be for the samples?
   A: Courier freight depends on the quantity,weight and carton size and your area.

3. Q: How can i get your price list?
   A: Please leave your contact way Such as Email/MSN/Skype/ to us or click "Send Message“.we will contact to you and pass our quotation sheet to you.

4. Q: Can you arrange the transportation for us?
   A: Yes,We can arrange transportation by sea or by air.

5. Q: What's your usual payment term for orders?
   A: We accept terms of T/T /Westunion/Paypal/LC

6. Q: what's the warranty of your products?
   A: one year
Why us?
1, ISO9001:2008 certification
2, Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS
3, Reasonable price and fast response
4, Over 10 years of experience in rugged input device and touchscreen kiosk
5, OEM and ODM capability
6, Flexibility in customization and size of order
7, Trusted suppliers of many world-class famous brands in the industry
Our Services
* We’re a professional manufacturer for over 10 years.
* Experienced Technical Staffs and Patient, professional sales team.
* High quality assurance with competitive price
* OEM and ODM available.
* Any of your feedback will be responded within 12 hours
* Best after sales service to ensure satisfaction from customers.

Quality Check and Warranty:
We have a strict QC department in the factory, all raw material must be inspected before mass production.
Semi-product and final product must be checked very carefully on production line. Pick up defective ones and pack the good ones.
And we check our products one by one before we pack and ship to make sure they are all what you ordered, to make sure the quantity be in good condition.
We provide 1 year warranty.Please contact us whenever issues occur and we we’d try our best to assist.

How to order?
If you are interested in our products and want to place an order, firstly contact us by email,or contact with us online and we will send you our price list.
After that you can make a list of the products or just show the pictures that you are interested in and send it to usso that we can prepare the Proforma Invoice with freight cost and bank account for your checking.
After you received the Proforma Invoice you can arrange payment using Western Union or Bank Transfer or Paypal.
Once we receive your full payment we prepare your goods and ship them out in 3-5 working days.
And we need to know the following information of your order:
a) Shipping information - Contact Name, Company name, Detail address, Phone number, Fax number,
b) Product information - model numbers, quantity, pictures
c) Delivery time required
d) Freight payment (by collect or prepare),or if you have own forwarder, tell us their contact details
Shipping terms:
1. Usual order: By express, DHL/ UPS/ Fedex etc. methods as you requested
2. Large order: By sea or By air
Payment terms:
Cash,Western Union, Bank Transfer(T/T), paypal,MoneyGra,Credit card
Main Markets:
North America; South America; Eastern Europe; Mid East; Eastern Asia; Western Europe; Central America; Northern Europe; Southern Europe
