| Brand Name: | KINGLEADER |
| Model Number: | TSK9004-2D |
| MOQ: | 1pcs |
| Price: | US$ |
| Packaging Details: | 1pcs/ctn |
| Payment Terms: | T/T,Paypal |

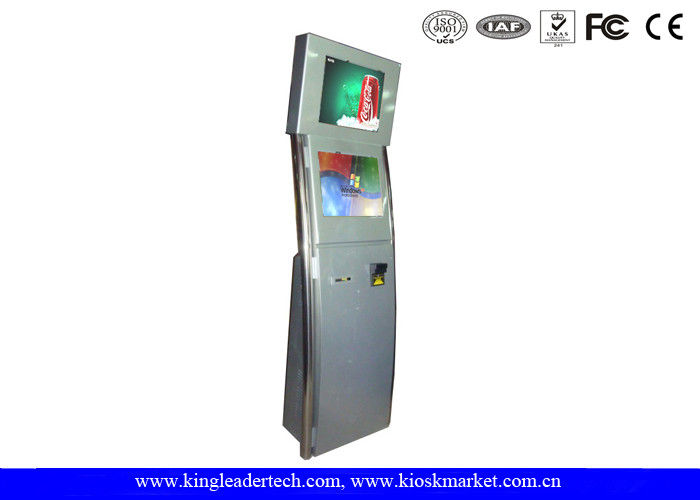

Interactive Touch Screen Kiosk With Dual Screen Anti-Glare Vandal-Resistant
Part No: TSK9004-2D
Two display kiosk
Key Features
● Two displays: upper display for video play or advertising;lower display paired with SAW touchscreen for interaction
● Super quality SAW touchscreen with anti-glare and vandal-resistant feature
● 15″,17″,19″TFT LCD displays for option ( for lower display and upper display)
● Durable steel enclosure,stylish and ADA compliant design
● Built-in hi-fi amplified speakers
● Customizable for additional peripherals/components
● Applications: office building,court house,hospital/medical center,airport,university,government building,
retail store,theater and other public places where information and/or transaction are provided in self-service
and interactive manner.
|
Technical Specifications |
|
|
TFT LCD Display |
-Resolution: 1024x768(15") 1280x1024(17"and 19") - Brightness: 250~300 nits - Contrast ratio: 450:1 - Response time :8 ms |
|
Touch Screen |
-Vandal-proof SAW touch screen - Material: Heat tempered glass with thickness 6mm - Resolution: 4096*4096 - Deviation of error: <2mm - Light Transmittance: 92% - Surface Hardness: 7 Mohs scale - Lifetime:50, 000, 000 times at one single location - Response time: less than 16 ms - Touch activation force: 10~100g |
|
Enclosure |
-Durable steel enclosure (different colors for option) - Built-in power control panel, and hi-fi speakers. - Two cooling fans for computer board and main body separately - RJ45/RJ11 interface - Large access doors with tubular locks/keys |
|
Computer |
-Mother board:Asrock G41 - CPU: Intel Pentium dual core (upgradeable on request) - RAM: 2GB (upgradeable on request) - Hard Disc: 320GB |
|
Compatible Operation System |
Win3.X/98/2000/NT4.0/XP/Win7/Linux |
|
Working Voltage |
AC 220V, 50 Hz or 110V, 60 Hz for option |
|
Ambient Environment |
-WorkingTemperature -20°C~65°C;RelativeHumidity: 30%~90% - Storage Temperature: -40°C~80°C;Relative Humidity: 5%~95% |
|
Dimensions |
181 (Height) x 58 (Width) x 42 (Depth) cm |
|
Optional Peripherals |
Camera,metal keyboard, |
|
