USB keyboard numeric keypad 5x4 Matrix , IP65 outdoor keypad WaterProof

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC
Model Number MKP115-20F-USB
Minimum Order Quantity 1pcs
Price US$
Packaging Details 10pcs/box
Delivery Time 20days
Payment Terms T/T,Paypal
Supply Ability 2000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Of Front Panel Stainless Steel Material Of Back Panel Aluminum Alloy
Number Of Keys 20 Keys Matrix 5x4
Interface USB Layout Customization Available
High Light

numeric key pad

,

metal keypad

Leave a Message
Product Description

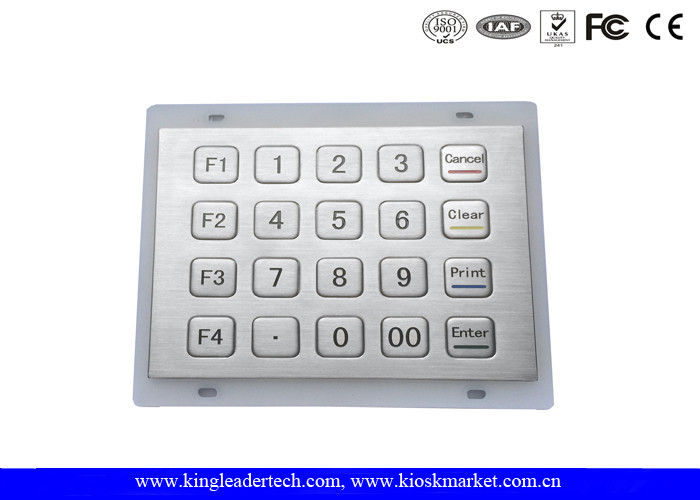

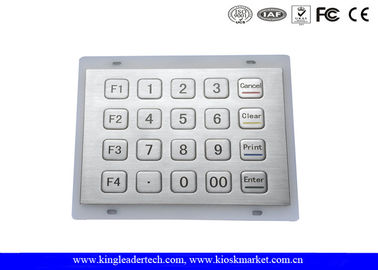

USB keyboard numeric keypad 5x4 Matrix , IP65 outdoor keypad WaterProof





Key Features:



● 20 flush keys,crispy tactile feedback, all the keys are in the same size

● Vandal resistant design
● Robust metal construction

● Key in 5 X 4 matrix

● USB Interface

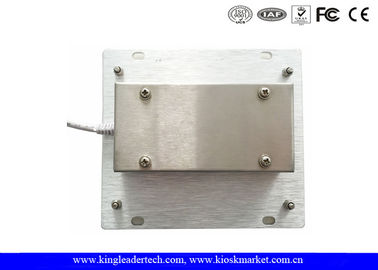

●The keypad is wired as shown,the cable exits from the back of the keypad.

●The top stainless steel plate also has a sealing gasket delivering easy & tight sealing

● Rear panel mounting solution

● Exposed parts made of stainless steel,high resistance against destruction,rust etc

● Dust-proof and liquid-proof, IP65 compliance after properly mounted

● Layout customizable according to customer’s request

● Silicone keypad membrane extends beneath the front panel way to the edge of the back panel, so the membrane also functions as a sealing gasket, no additional gasket will be needed when installed, therefore this design can better prevent water from seeping into the PCB than other conventional design (where the rubber is the same size as the front panel), this enhancement makes it an ideal choice for outdoor application.

Application: ATM, ADM, CDM, unattended payment terminals, vending machines, ticketing machines, gaming machines,kiosks,workstation etc.



Technical Specification

Material

Front panel & Keys

304 stainless steel

Number of Keys

20 Flush Keys

Matrix

5 x 4

Function

Non backlight

Electrical Data

Interface

USB(With electronic controller board)

Certification

CE,FCC

Environmental Characteristics

Operating temperature

-20º C to + 60º C

Key travel

0.45mm

Lifetime (cycles)

Min 5, 000, 000 actuations

Sealing protection

IP65/NEMA4X from the front

Layout

Customizable available

Dimension

115.00 x 90.00 mm (W x D) (front panel)

Application

ATM, ADM, CDM, unattended payment terminals, vending machines, ticketing machines, gaming machines, kiosks, workstation etc.











FAQ
1. Q: How could I get samples?
A: If you need to order sample for checking-up,we would like to ask you to pay for the samples and courier freight.We send the samples to you only after receipt of your payment.if you have an courier account,you can send your courier to collect samples from our company or send us the samples charge together with the courier cost.
2. Q: How much the Courier freight will be for the samples?
A: Courier freight depends on the quantity,weight and carton size and your area.
3. Q: How can i get your price list?
A: Please leave your contact way Such as Email/MSN/Skype/ to us or click "Send Message“.we will contact to you and pass our quotation sheet to you.
4. Q: Can you arrange the transportation for us?
A: Yes,We can arrange transportation by sea or by air.
5. Q: What's your usual payment term for orders?
A: We accept terms of T/T /Westunion/Paypal/LC/Credit Card
6. Q: what's the warranty of your products?
A: one year
