12 Keys Zinc Alloy Metal Keypad With Blue Backlight , vandal proof keypad 9 PIN connector

Place of Origin China
Certification CE,FCC
Model Number MKP72-12BL
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 15days
Payment Terms T/T,Paypal, Western Union
Supply Ability 2000pcs/month
Product Details
High Light

back lit keyboard


custom keyboard


12 Keys Zinc Alloy Metal Keypad

Leave a Message
Product Description

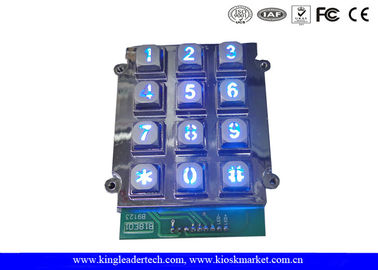

12 Keys Zinc Alloy Metal Keypad With Blue Backlight , vandal proof keypad 9 PIN connector
Rugged vandalproof keypad with 12 backit keys,ideal for indoor door access control system or
other low-lit or dark environments
Part Number:MKP72-12BL
Door access keypad with backlit

Material:Front panel and keys: Zinc Alloy

Dimension: 70.00 x 62.60 mm(W x D) (front panel)
Life cycle: >5 million operations

Actuation force: 80±15g
Key travel: 2.0mm
Interface: 9-pin

Relative humility: 20~95%
Working temperature: -20℃~60℃
Storage temperature: -40℃~80℃
Atmospheric pressure: 50-110 K Pa


Key Features:

● 12 full travel and back-lit keys,all keys are in the same size
● Keys in 3 X 4 matrix
● Stamped characters
● Panel mount from the rear side
● Exposed parts(front panel and keys) made of zinc alloy,high resistance against destruction,rust etc
● Vandal-proof
● Layout customizable according to customer’s request
● Application:Door access control system or other application in dark or low-lit environment


Quality Check and Warranty:

We have a strict QC department in the factory, all raw material must be inspected before mass production.
Semi-product and final product must be checked very carefully on production line. Pick up defective ones and pack the good ones.

And we check our products one by one before we pack and ship to make sure they are all what you ordered, to make sure the quantity be in good condition.
We provide 1 year warranty.Please contact us whenever issues occur and we we’d try our best to assist.
12 Keys Zinc Alloy Metal Keypad With Blue Backlight , vandal proof keypad 9 PIN connector 012 Keys Zinc Alloy Metal Keypad With Blue Backlight , vandal proof keypad 9 PIN connector 1
12 Keys Zinc Alloy Metal Keypad With Blue Backlight , vandal proof keypad 9 PIN connector 2
