Compact USB Industrial Computer Keyboard with Optical Trackball and Korean Layout

Place of Origin China
Brand Name KINGLEADER
Certification CE,FCC
Model Number MKB-65A-TB-M-B
Minimum Order Quantity 1pcs
Price US$
Packaging Details 1pcs/box, 10pcs/ctns
Delivery Time 20days
Payment Terms T/T,Paypal
Supply Ability 2000pcs/month
Product Details
High Light

custom computer keyboard

,

industrial computer keyboards

,

Compact USB Industrial Computer Keyboard

Leave a Message
Product Description

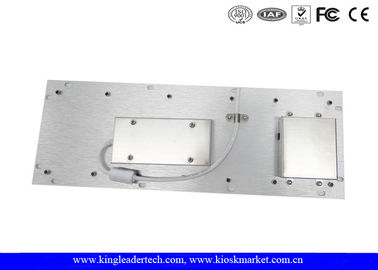

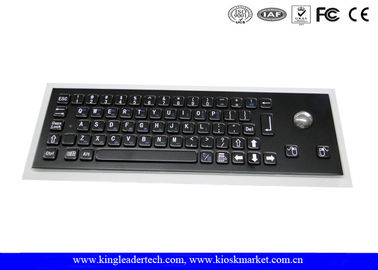

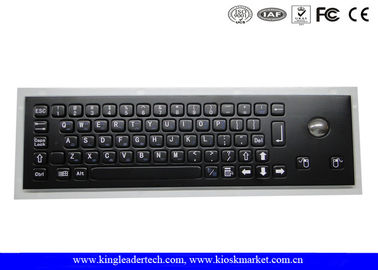

Compact USB Industrial Computer Keyboard with Optical Trackball and Korean Layout



MKB-65A-TB-M-B



Small in overall dimension, while the keys still remain big enough for fingers to press, avoiding the weakness of too small keys that exists in most of small-sized keyboards



Key Features:


1) Super compact keyboard design,electrophoretic black on the front panel and keycaps

2) 65 keys, compact size with integrated optical trackball, panel mount

3) Comfortable and soft-touch typing
4) Protruding full travel(2.0mm)keys with etched graphics, extremely good tactile feeling for fast and accurate data input without any noise
5) Specially designed to operate in harsh environments, making it ideal for kiosks and other applications in public places.
6) Built from stainless steel, high vandal-proof.
7) Dust-proof and liquid-proof, meet IP65 requirement

8)Top stainless steel plate with sealing gasket for easy & tight sealing and mounting to enclosure or panel
9) PS/2 or USB interface

10) Two left and right mouse buttons
11)
Multiple language versions available



Application:



Outdoor parking system,unattended payment terminals, vending machines,ticketing machines, gaming machines,kiosks,workstation,outdoor weight station etc.





Specifications
 Material Front panel & Keys: Brushed stainless steel
Back panel: Aluminum alloy
Key cap: Protruding full travel key (2.0mm) with etched graphics
Trackball: Stainless steel trackball (Dia: 38mm)

Electrical Data

Power supply voltage: DC 5 V 5%
Current rating: 20 mA
Interface: USB or PS2
EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
FCC: Part 15, class B
Safety: EN 60950, CE compliant

Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6

Mechanical Data

Actuation force for key: 120±15g
Key travel: 2.0mm
Lifetime (cycles): Min 2, 000, 000 actuations
Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Operation system PS2: Win NT4, 98SE, 98ME, 2000, XP
USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX
Weight and Dimension Weight: 1.80kg

Front panel: 330.0x100.0 mm




Compact USB Industrial Computer Keyboard with Optical Trackball and Korean Layout 0
